Steering Angle Sensor: Service and Repair

Remove/Install Steering Angle Sensor

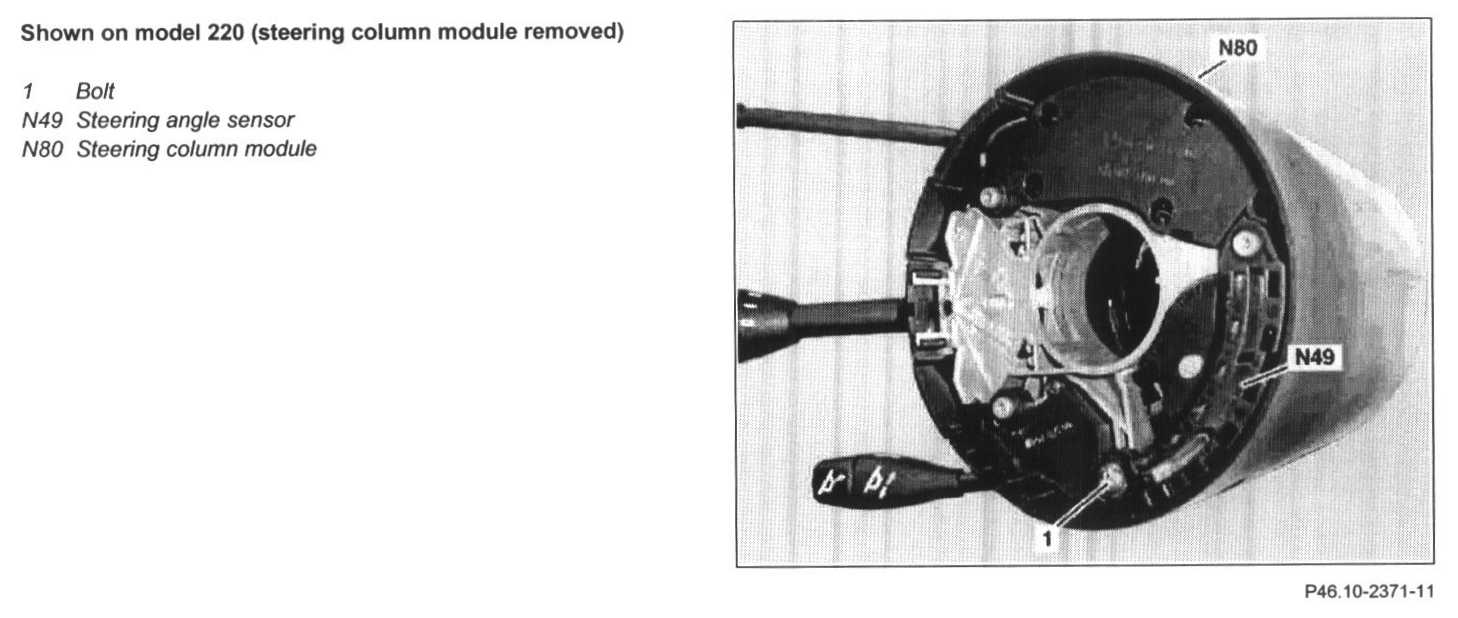

Shown On Model 220 (Steering Column Module Removed):

1 Connect quiescent current retention device

DANGER:
- Risk of explosion from explosive gas. Risk of poisoning and caustic burns from swallowing battery electrolyte. Risk of injury through burns to skin and eyes from battery acid or when handling damaged lead-acid batteries
- No fire, sparks, naked flames or smoking
- Wear protective gloves, acid-resistant clothing and safety glasses. Pour battery electrolyte only into suitable and appropriately marked containers.

2 Disconnect ground cable of battery

NOTE:
- Turn key in electronic ignition switch EIS into position "0". Key cannot be withdrawn.
- Vehicle fitted with code (889) Keyless-Go: Switch off engine, remove Keyless Go cards from the vehicle and keep outside the range of the transmitter.
- Ensure that ground cable will not come into renewed contact with the battery terminal as you are working.
- Installation: Read out fault memory after connecting, adjust time display on combination instrument, code radio, normalize power window and activate steering angle sensor
- Vehicles with stationary heater: adjust time display on stationary heater.

CAUTION:
- See instructions for performing repair, body work and welding on vehicles with airbags and ETR units

3 Remove steering wheel

NOTE: Front wheels in straight-ahead position

4 Remove clock spring contact
5 Unscrew bolt (1)
6 Remove steering angle sensor (N49) from steering column module (N80)
7 Install in the reverse order
8 Render electrical system operational

NOTE: Perform basic programming (normalize windows and sliding roof, etc.).

9 Read diagnostic trouble code memory and erase.
