GF91.60-P-4109R Pressure Sensor, Component Description

GF91.60-P-4109R Pressure Sensor, Component Description
- as of 1.3.06
- with CODE (494) USA version

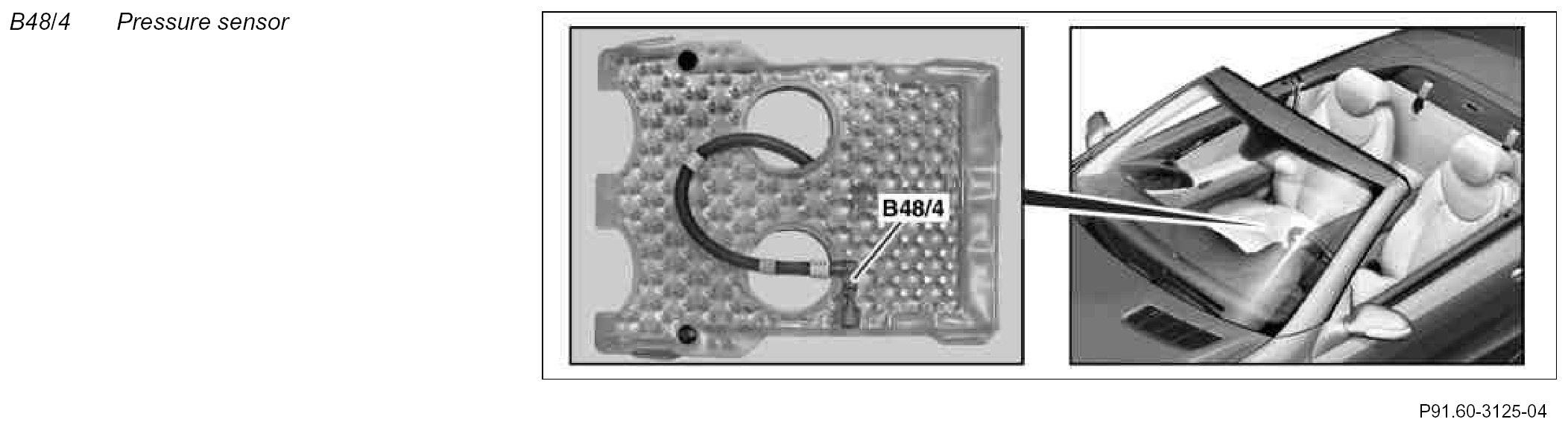

Component Identification:

Location
The pressure sensor is integrated into the seat surface of the front passenger seat.

Task
The pressure sensor determines the weight applied to the front passenger seat via a corresponding pressure measurement in a sensor mat filled with gel.

The Weight Sensing System (WSS) control unit (N110) then determines a category for the applied weight that corresponds to the determined value. This assignment is used to record the occupation status on the front passenger seat.
