Roll Bar Position Switch: Service and Repair

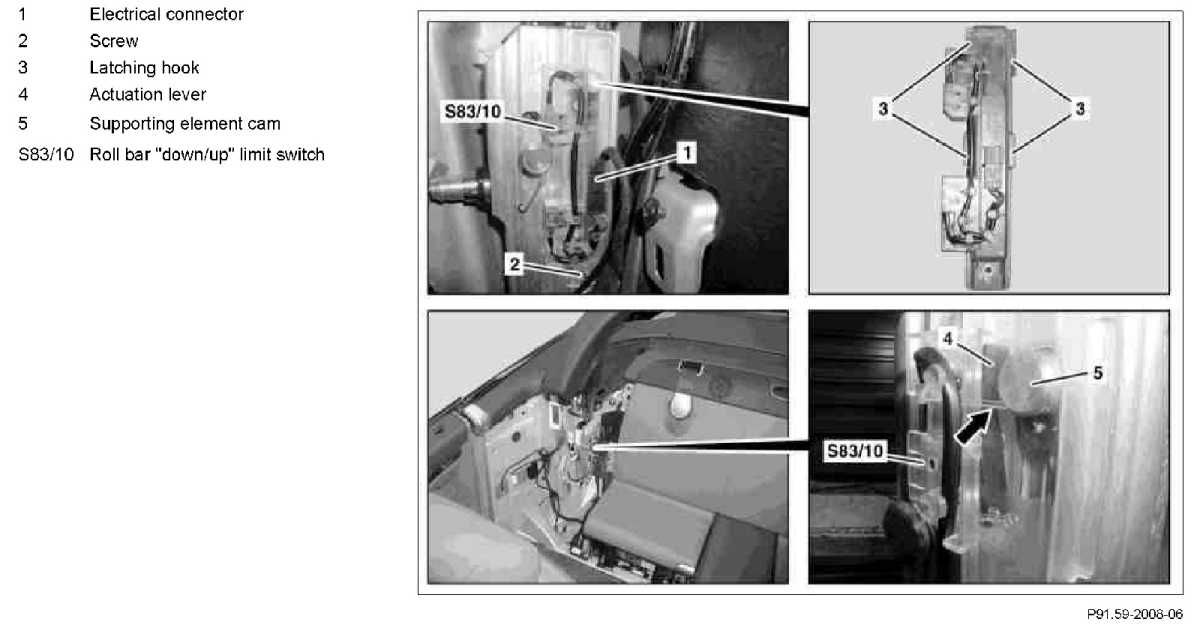

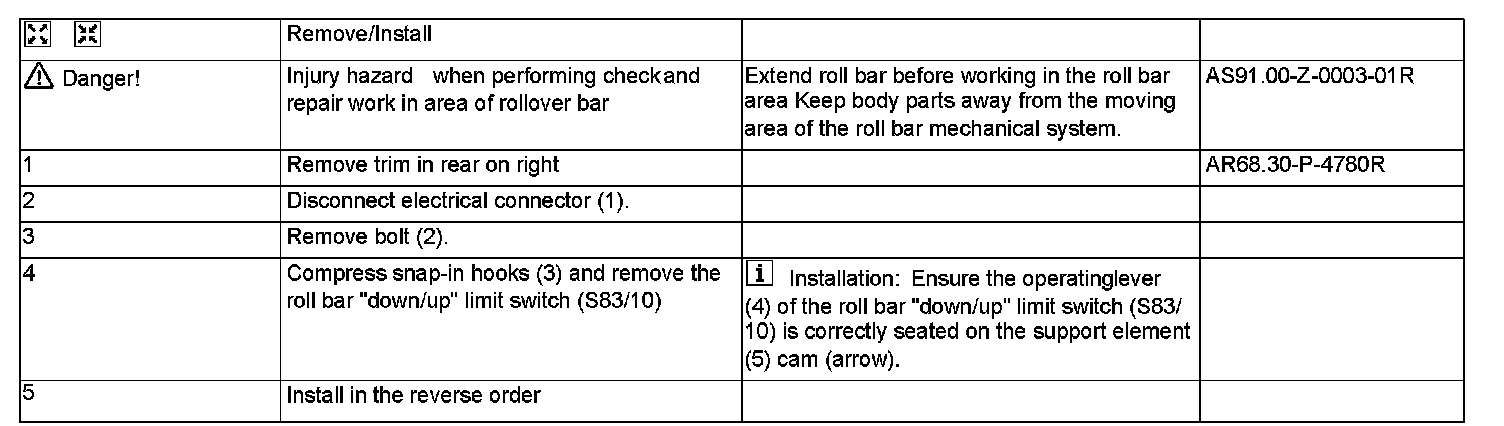

AR91.59-P-0100R Remove/Install Roll Bar (Down/Up) Limit Switch
- Except CODE (P99) "AMG Black Series" special model
