SL 55 AMG (230.474) V8-5.5L SC (113.992)
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - Body and Frame
>>
Convertible Top Position Sensor / Switch
>>
Service and Repair
>>

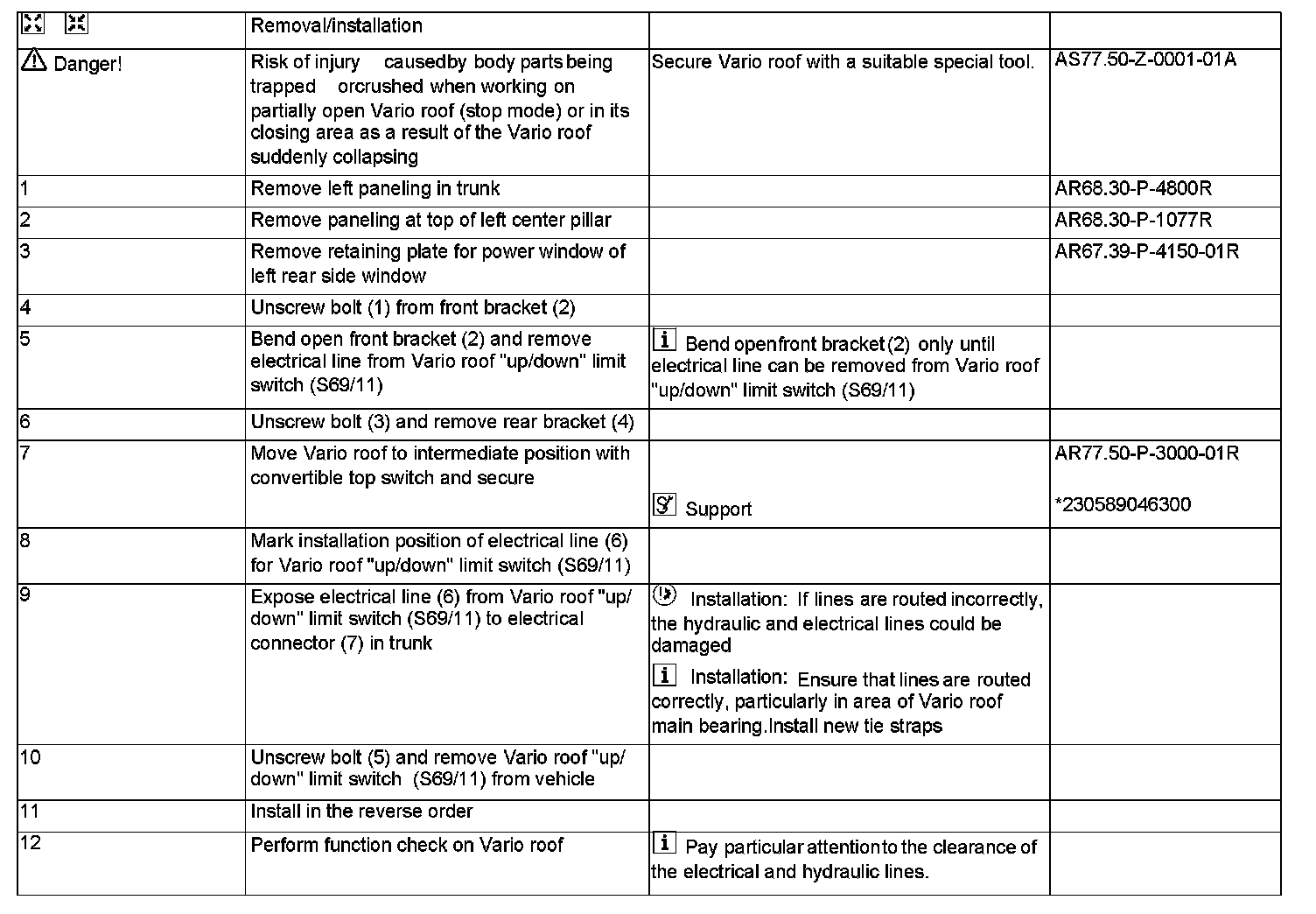

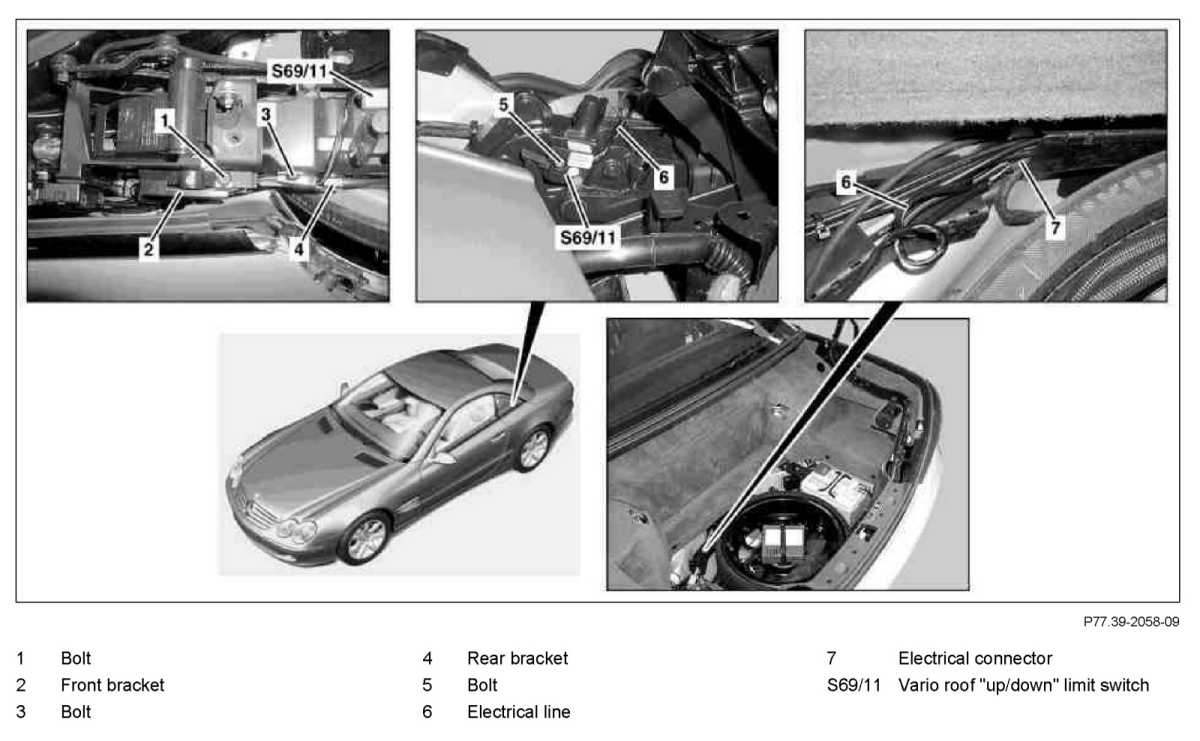

AR77.39-P-3694R Remove/Install Vario Roof "Down" Limit Switch
AR77.39-P-3694R Remove/Install Vario Roof "Down" Limit Switch
AR77.39-P-3694R Remove/Install Vario Roof "Down" Limit Switch
