FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2006
>>
SL 55 AMG (230.474) V8-5.5L SC (113.992)
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - Body and Frame
>>
Convertible Top Deck Lid Position Switch / Sensor
>>
Service and Repair
>>

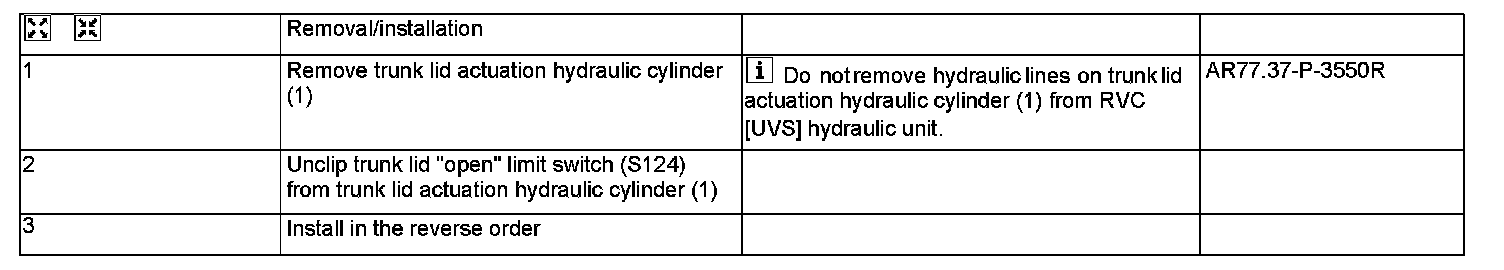

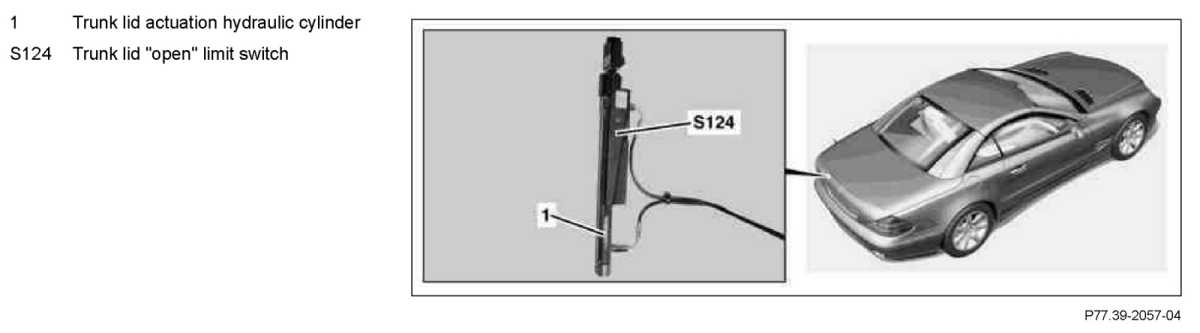

AR77.39-P-3720R Remove/Install Trunk Lid "Open" Limit Switch
AR77.39-P-3720R Remove/Install Trunk Lid "Open" Limit Switch
AR77.39-P-3720R Remove/Install Trunk Lid "Open" Limit Switch
