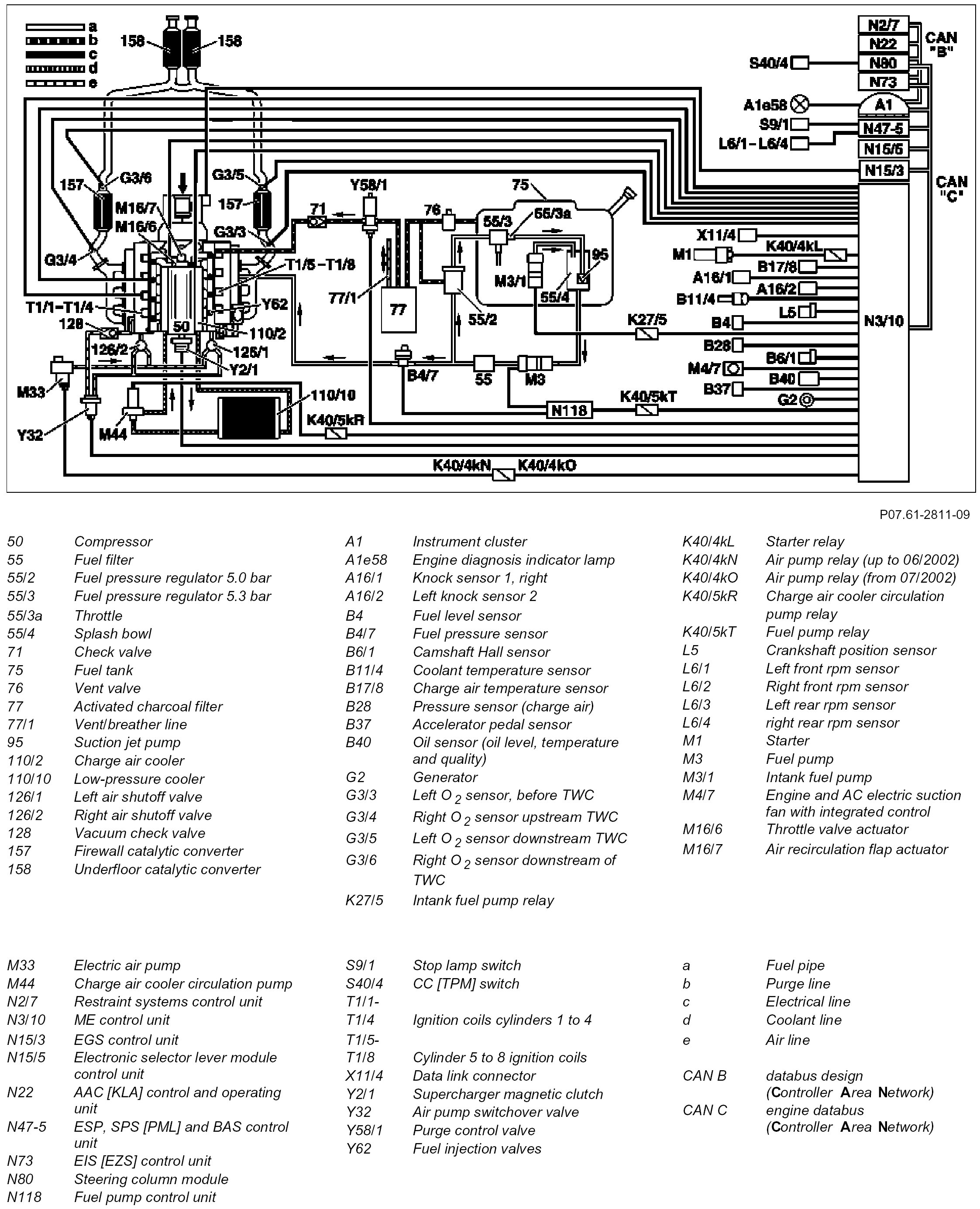

GF07.61-P-0001-02RA Motor Electronics (ME-SFI) Fuel Injection and Ignition System Function Diagram



GF07.61-P-0001-02RA Motor Electronics (ME-SFI) Fuel Injection And Ignition System Function Diagram
- up to model year 08


Component Identification:
