PE54.30-P-2055KC Electrical Function Schematic of Instrument Cluster, Operating Condition Display

Electrical Function Schematic Of Instrument Cluster, Operating Condition Display PE54.30-P-2055KC
- with CODE (P99) Special model "AMG Black Series"

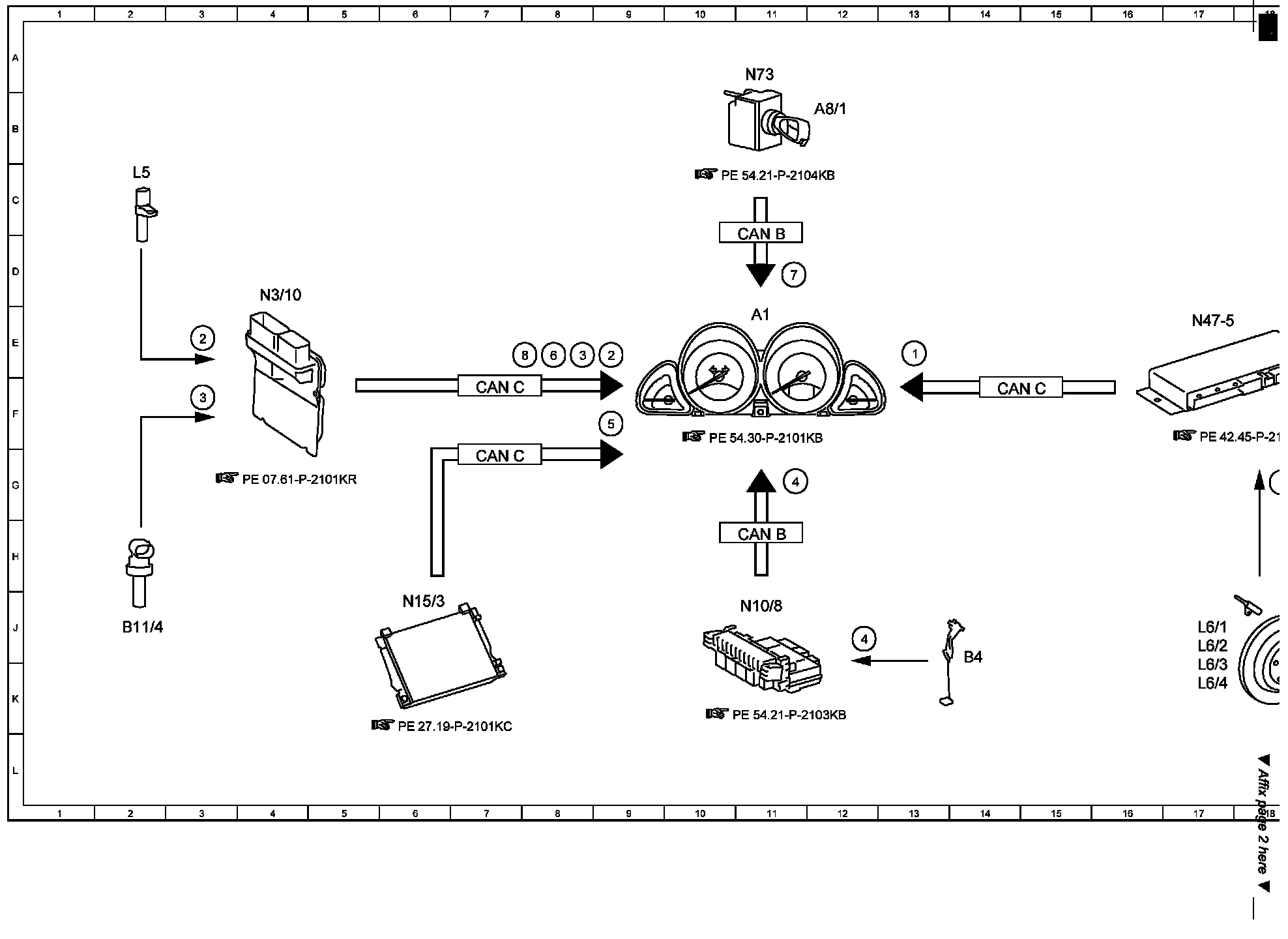

Function Diagram (Part 1):

Function Diagram (Part 2):

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
