Home >> Mercedes Benz >> 2006 >> SL 55 AMG (230.474) V8-5.5L SC (113.992) >> Repair and Diagnosis >> Body and Frame >> Seats >> Seat Back >> Seat Back Frame >> Service and Repair

Seat Back Frame: Service and Repair

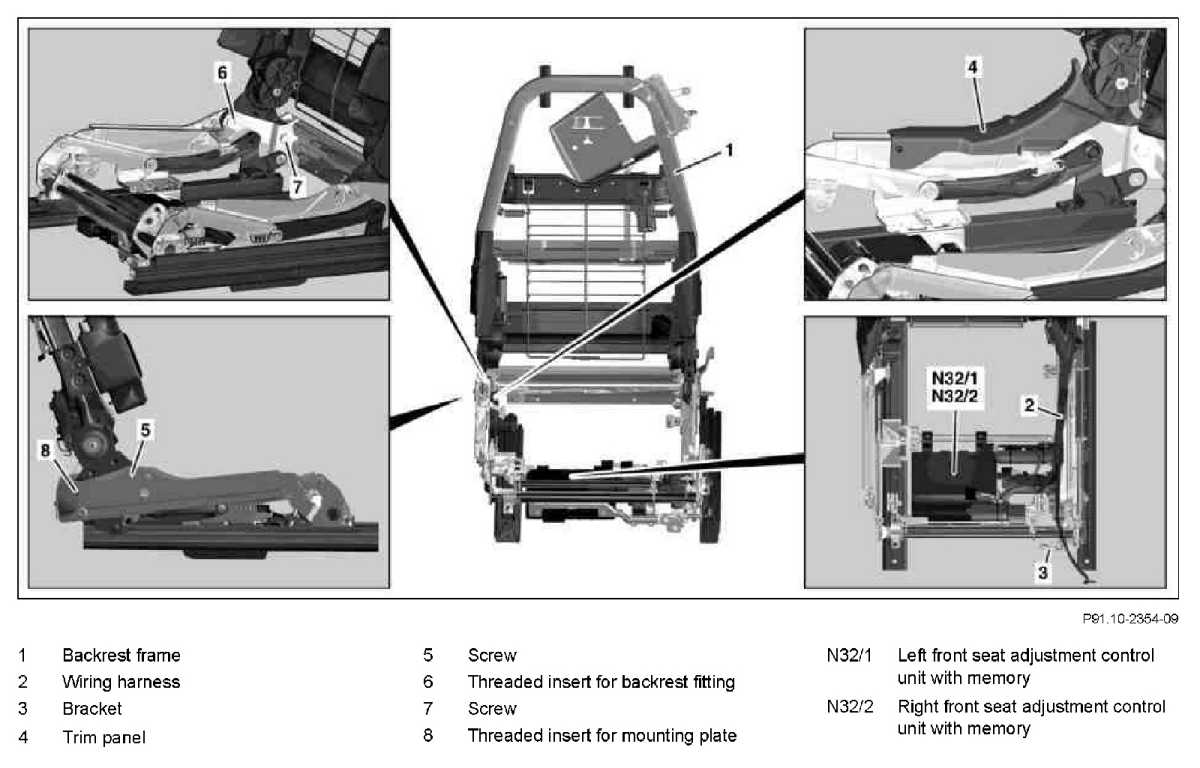

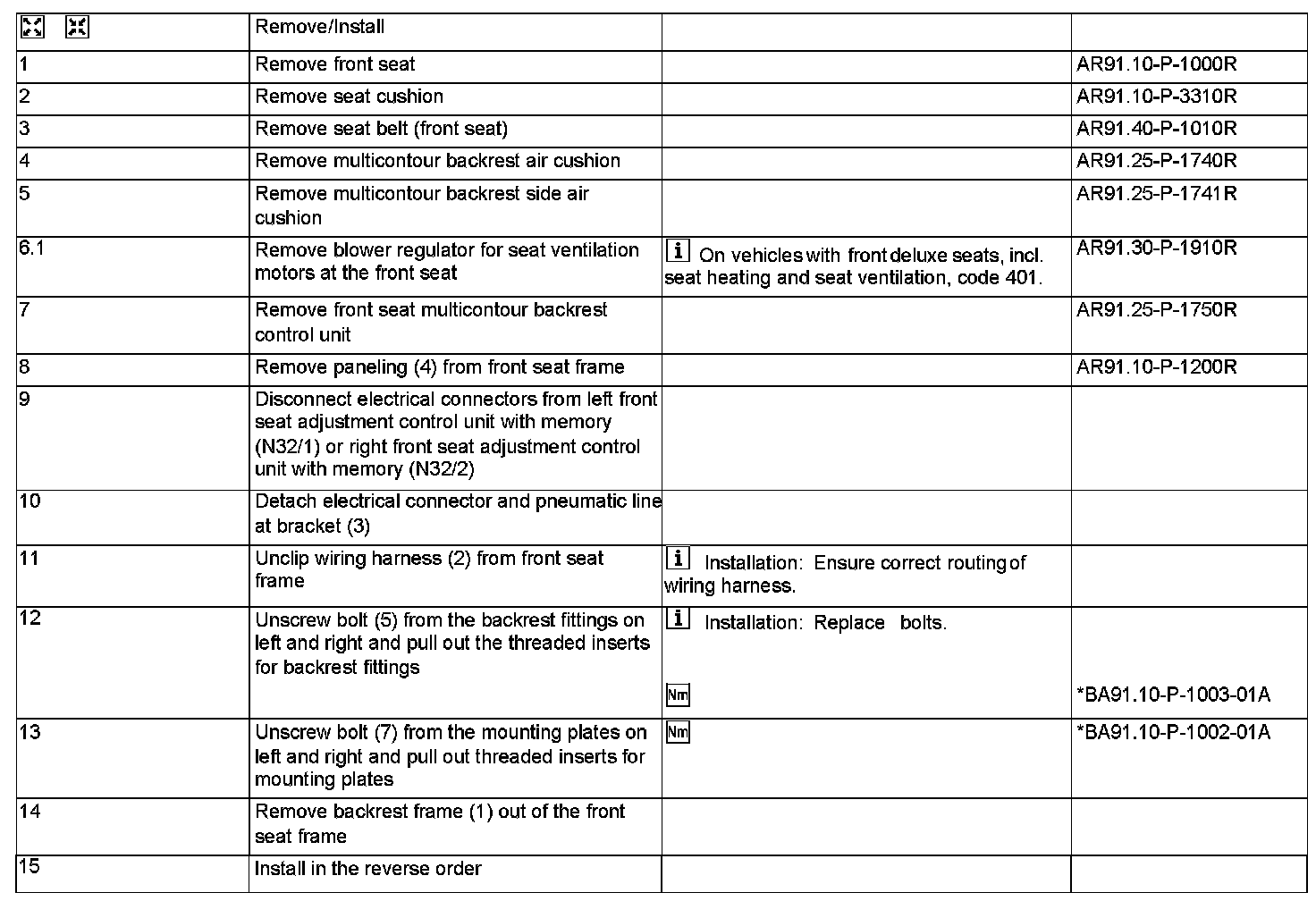

AR91.10-P-3331R Remove/Install Front Seat Backrest Frame
- with CODE (404) Left multi-contour seat
- with CODE (405) Right multi-contour seat

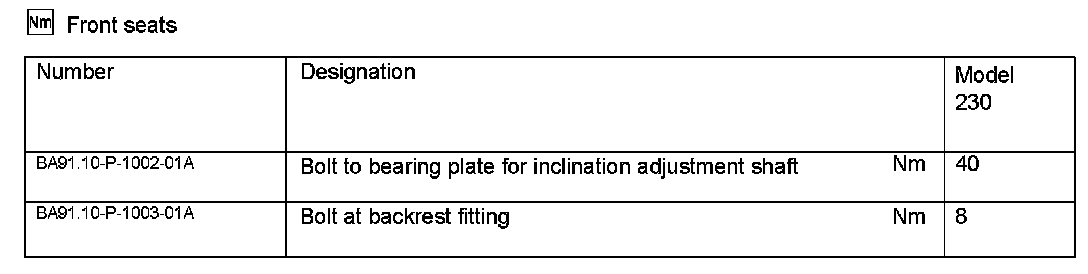

Front Seats:
