I. Water Leak In Area of A-Pillar Edge Guard

I. Penetration by water into edge guard area on A-pillar

Cause:

A-pillar water ingress.

Procedure:

Seal seal.

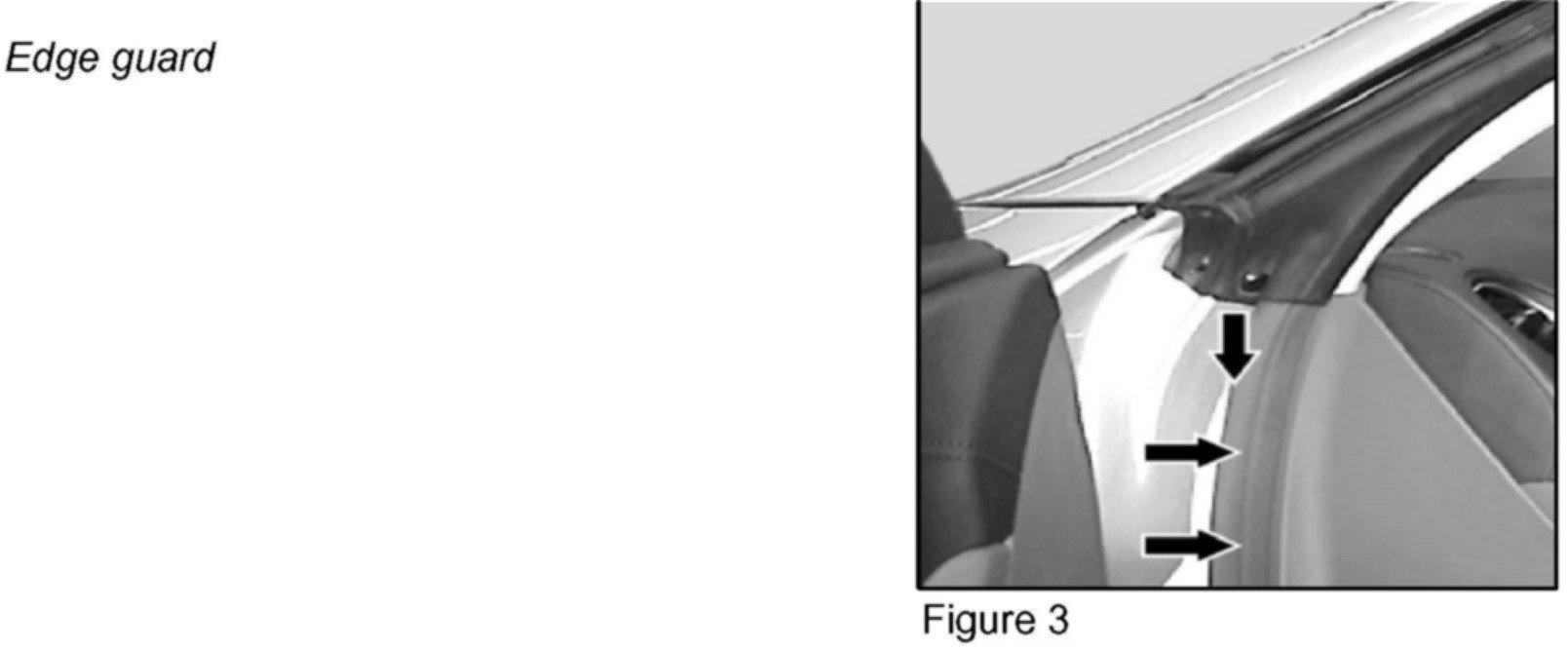

Edge guard on A-pillar moist (Arrows-Figure 3).

1. Perform rain test.

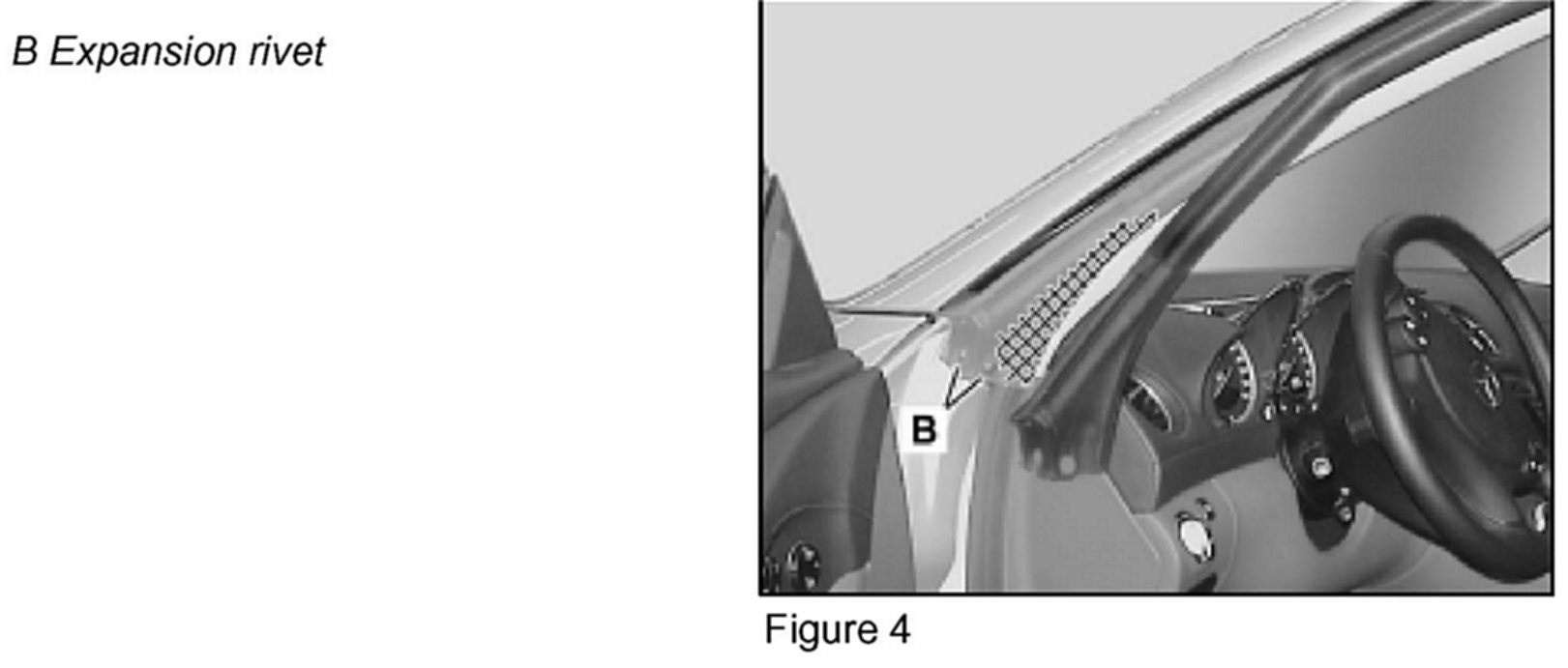

2. Remove spreading rivet (B-Figure 4).

3. Loosen seal approx. 200 mm.

Do not remove seal.

4. Apply sealant (Shaded area Figure 4).

Use sealant gun and window sealant for dabbing.

5. Reinstall in opposite order.

Remove sealant running out.

6. Perform leakage test.
