Convertible Top Malfunction Indicator: Description and Operation

GF77.30-P-4000R Vario Roof Control And Warning Messages, Function
- up to model year 08

Component Identification:

The optical warning message is given by the Vario roof indicator lamp (N72e3) integrated into the Vario roof switch (N72s16).

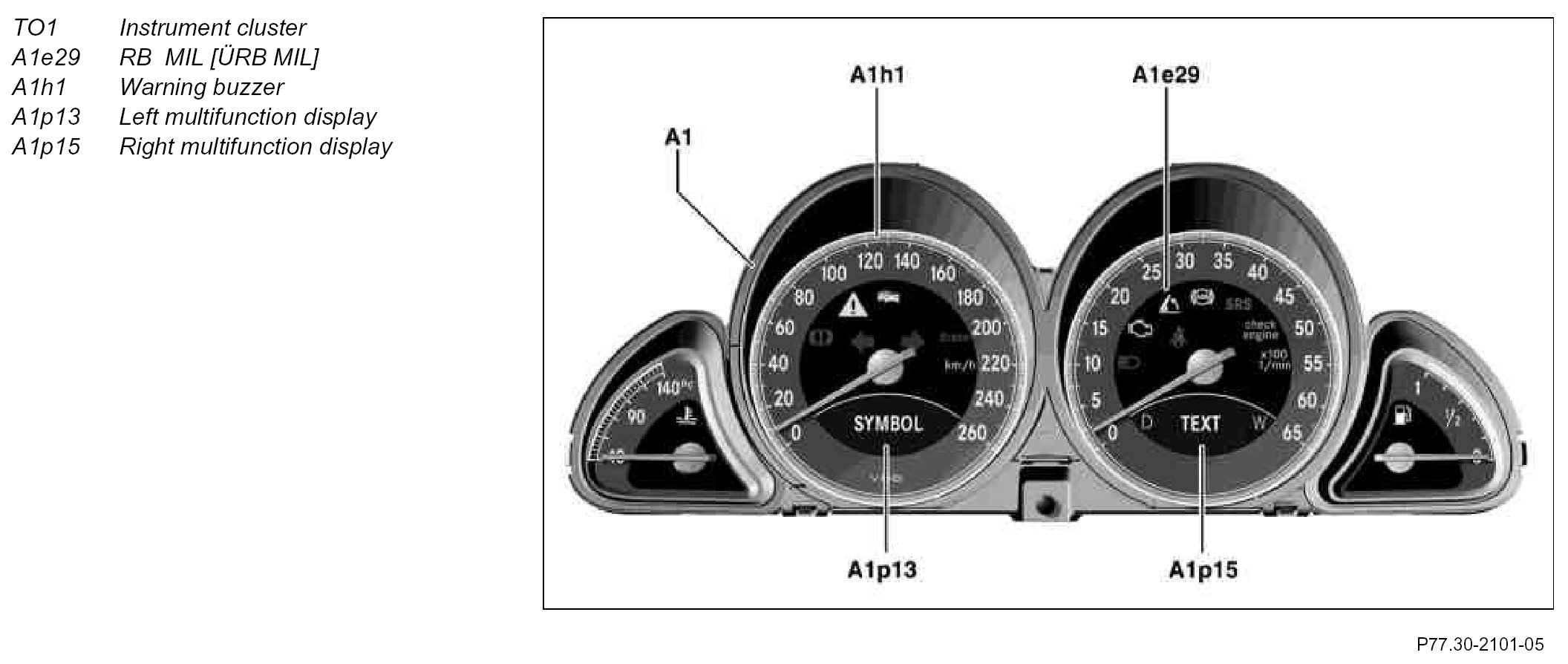

In the event of an erroneous Vario roof sequence and locked end position, the status of the Vario roof is indicated as follows on the instrument cluster:
- "Vario roof open" and symbol "Vario roof opened"
- "Vario roof closed" and symbol "Vario roof closed"
