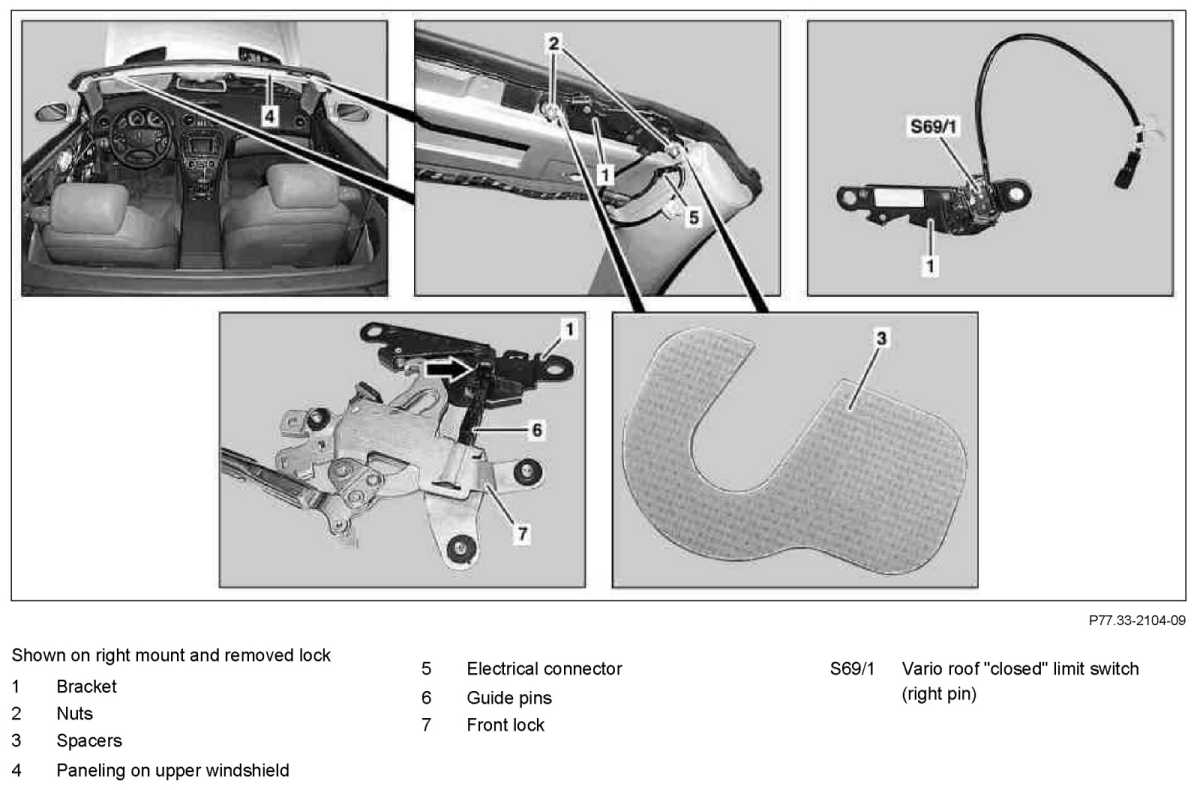

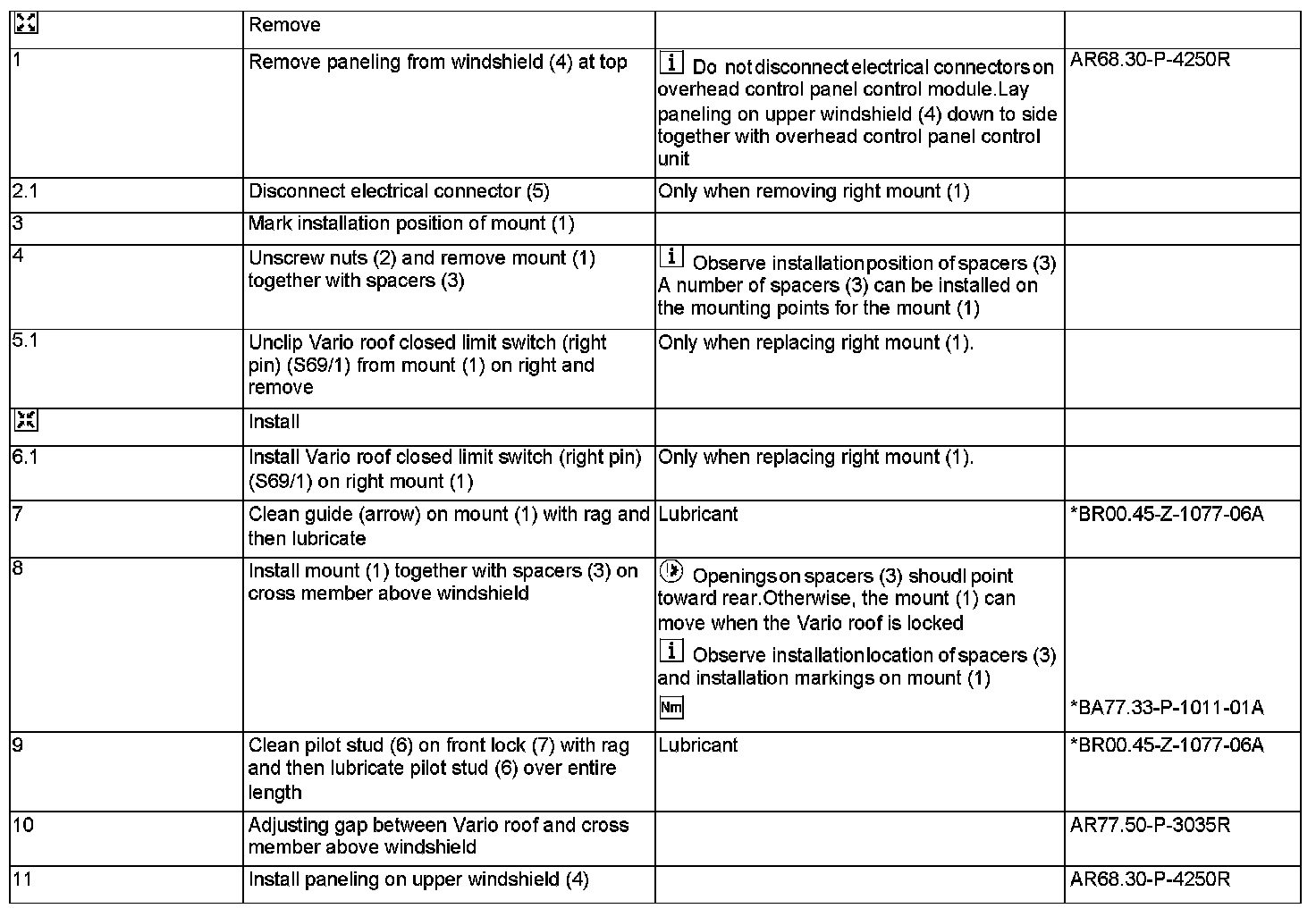

AR77.33-P-3450R Remove/Install Mount For Catch on Cross Member Above Windshield



AR77.33-P-3450R Remove/Install Mount For Catch on Cross Member Above Windshield

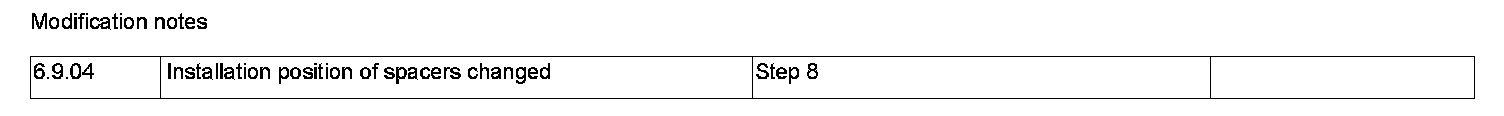

Modification Notes:











Soft Top - Mechanical System:
