Home >> Mercedes Benz >> 2006 >> SL 55 AMG (230.474) V8-5.5L SC (113.992) >> Repair and Diagnosis >> Body and Frame >> Roof and Associated Components >> Convertible Top >> Convertible Top Hydraulic Cylinder >> Service and Repair >> AR77.37-P-3490R Remove/Install Vario Roof Actuation Hydraulic Cylinder

AR77.37-P-3490R Remove/Install Vario Roof Actuation Hydraulic Cylinder



AR77.37-P-3490R Remove/Install Vario Roof Actuation Hydraulic Cylinder

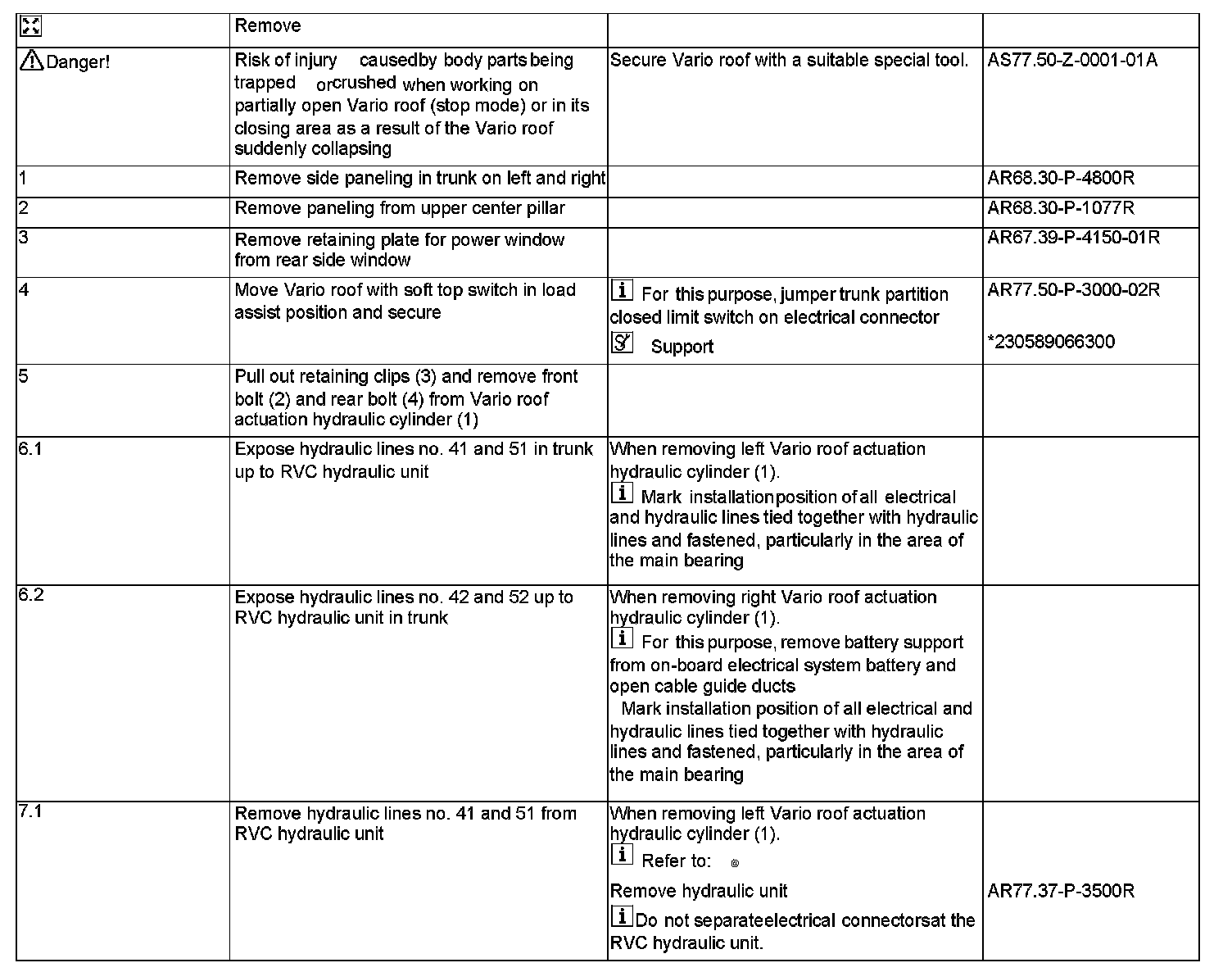

Part 1:

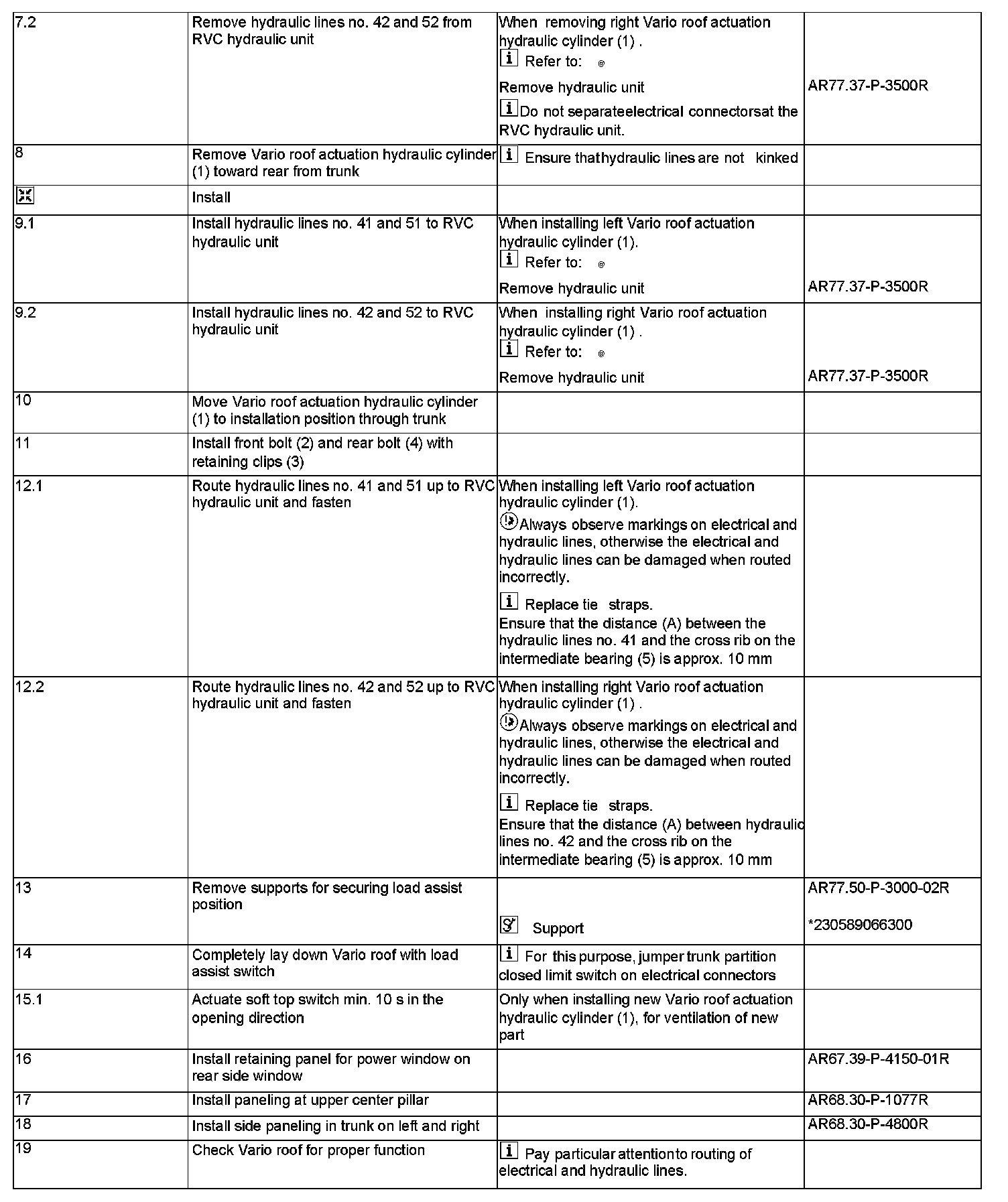

Part 2:
