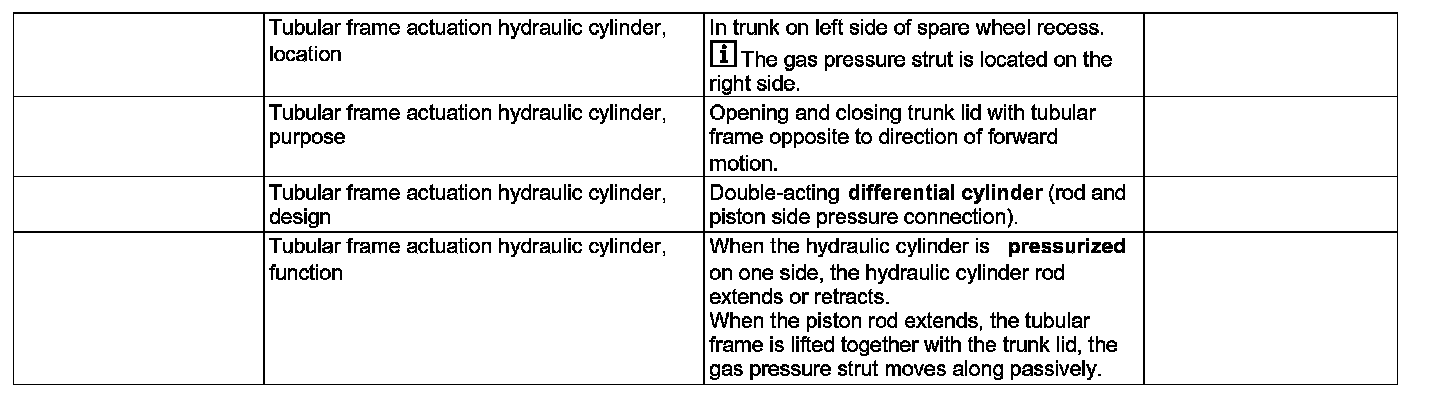

GF77.37-P-3081R Vario Roof Tubular Frame Actuating Hydraulic Cylinder, Location/Purpose/Design/ Function



GF77.37-P-3081R Vario Roof Tubular Frame Actuating Hydraulic Cylinder, Location/Purpose/Design/ Function
- up to model year 08

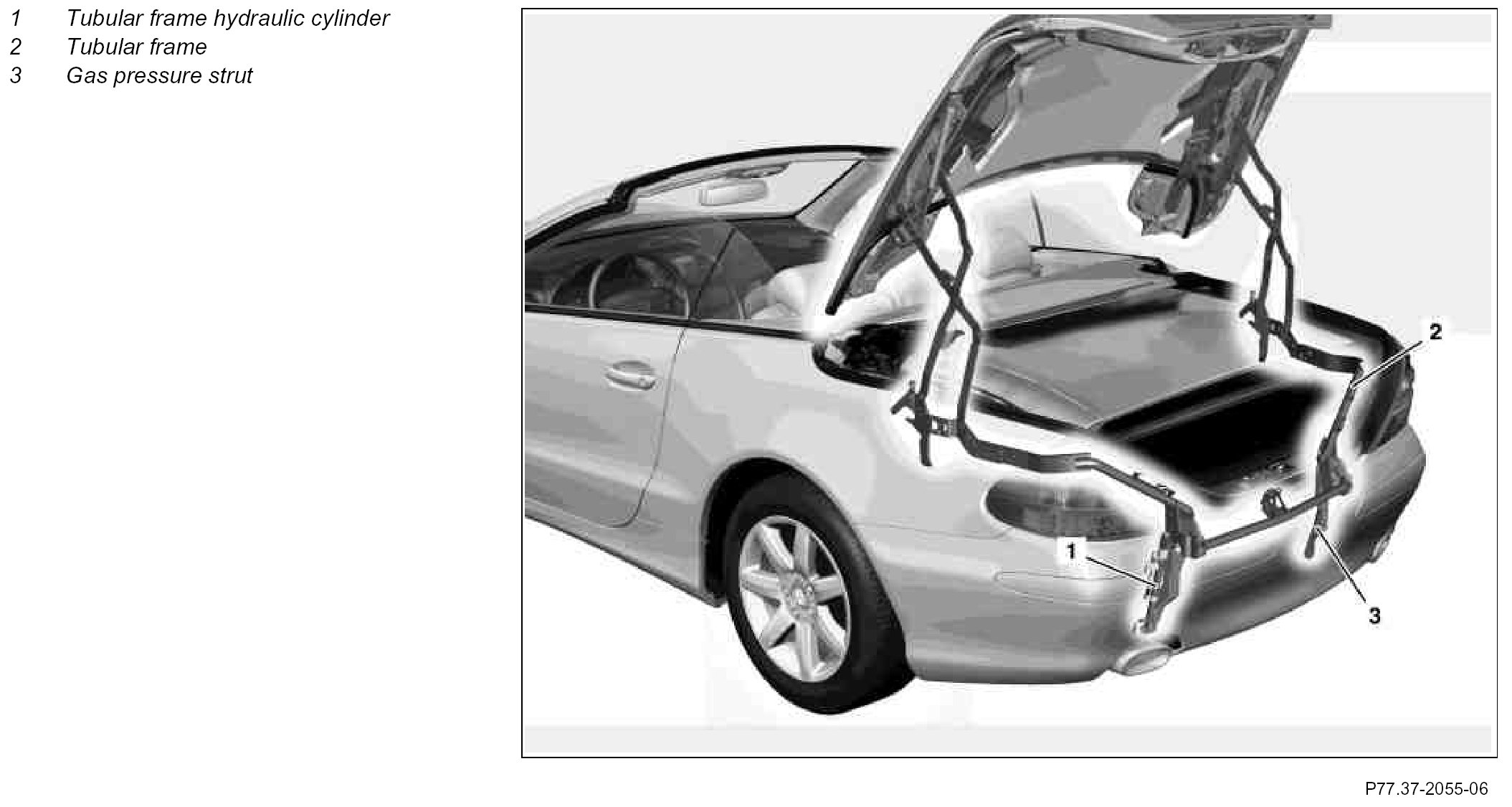

Component Identification:
