Convertible Top Frame: Adjustments

AR77.33-P-3460-01R Adjusting Tubular Frame Catches In Trunk
- except CODE (P99) Special model "AMG Black Series"

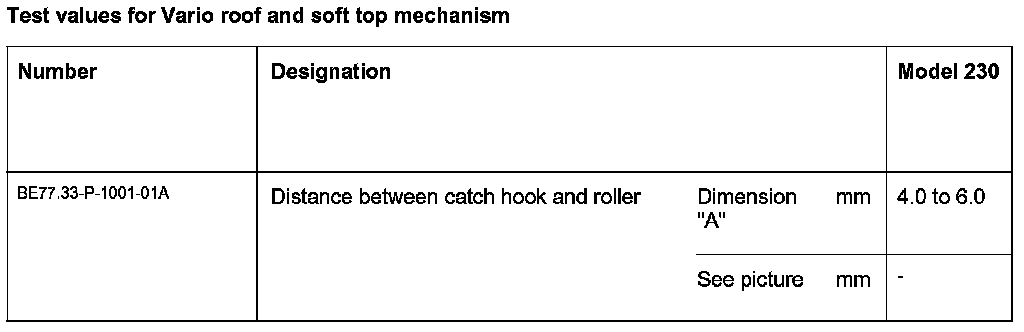

Test Values For Vario Roof And Soft Top Mechanism:

Soft Top Mechanical Components:

Side panelings in trunk removed

Checking

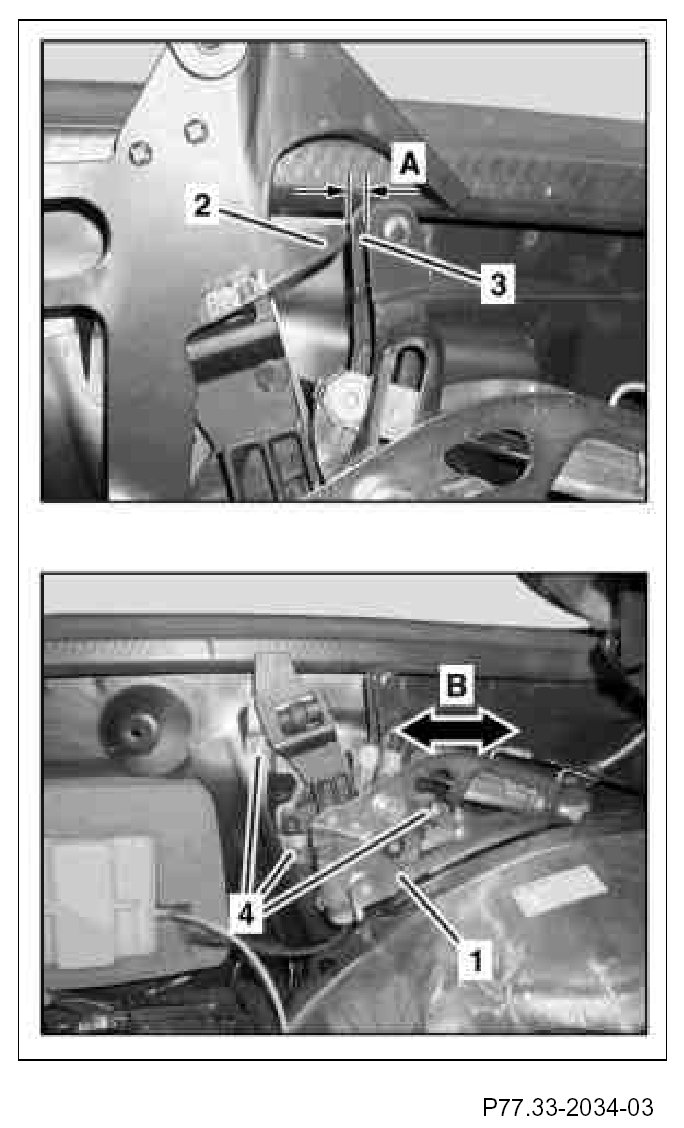

1. Actuate Vario roof switch until both catches for tubular frame (1) are unlocked
2. Press roller (3) against stop in direction of catch hooks (2) and check distance (dimension A) between catch hooks (2) and roller (3).

Adjust

3. Loosen bolts (4) and move catches for tubular frame (1) in direction of arrow (arrow B) until dimension (A) is achieved between catch hooks (2) and roller (3).
4. Tighten bolts (4)

Observe specified tightening torque.

Checking







5. Actuate Vario roof switch until Vario roof is completely closed.
6. Open trunk lid.
7. Check whether a gap (arrow C) is present between pane (5) and fork (6); repeat adjustment if necessary.
