AR88.30-P-0525RBS Remove, Install Control Unit For Rear Spoiler Hydraulic Unit



AR88.30-P-0525RBS Remove, Install Control Unit For Rear Spoiler Hydraulic Unit
- with CODE (P99) Special model "AMG Black Series"

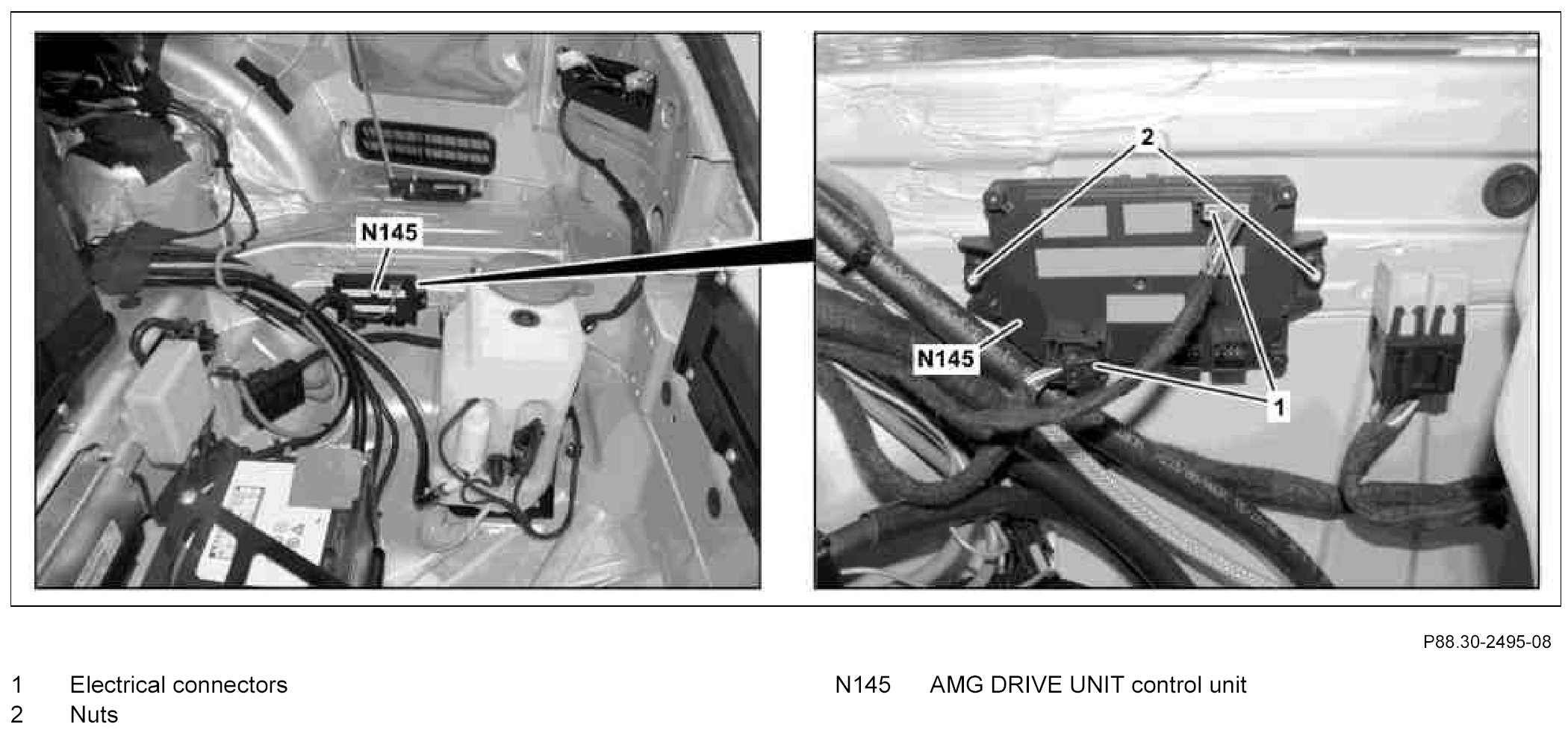

Component Identification:

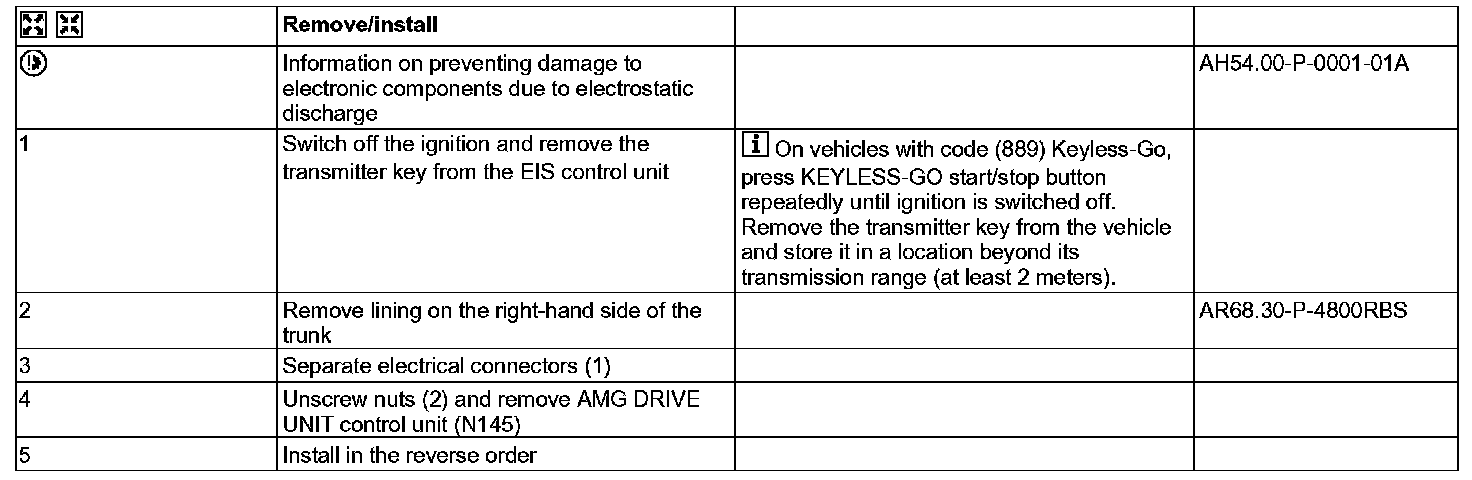

Steps 1 - 5:
