AR82.70-P-8918RB Remove and Install Bracket For Portable CTEL



AR82.70-P-8918RB Remove And Install Bracket For Portable CTEL
- with CODE (386) Preinstallation for telephone "Cell phone", UPCI [UHI] system

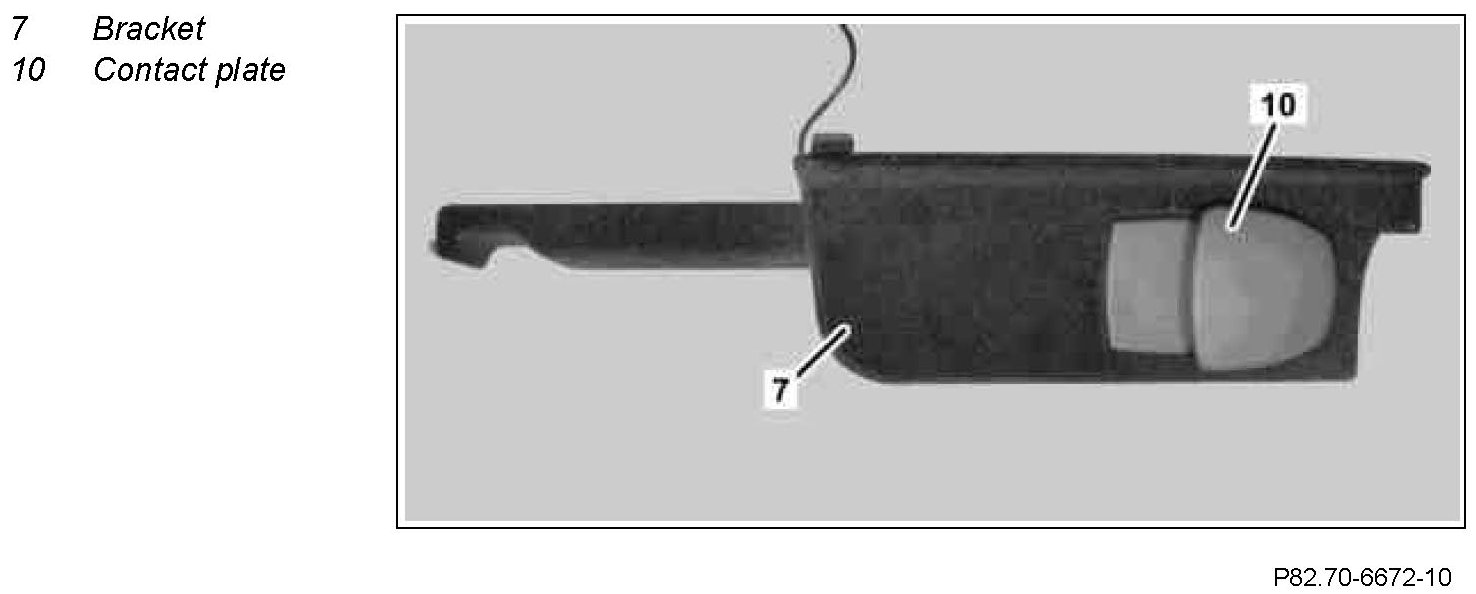

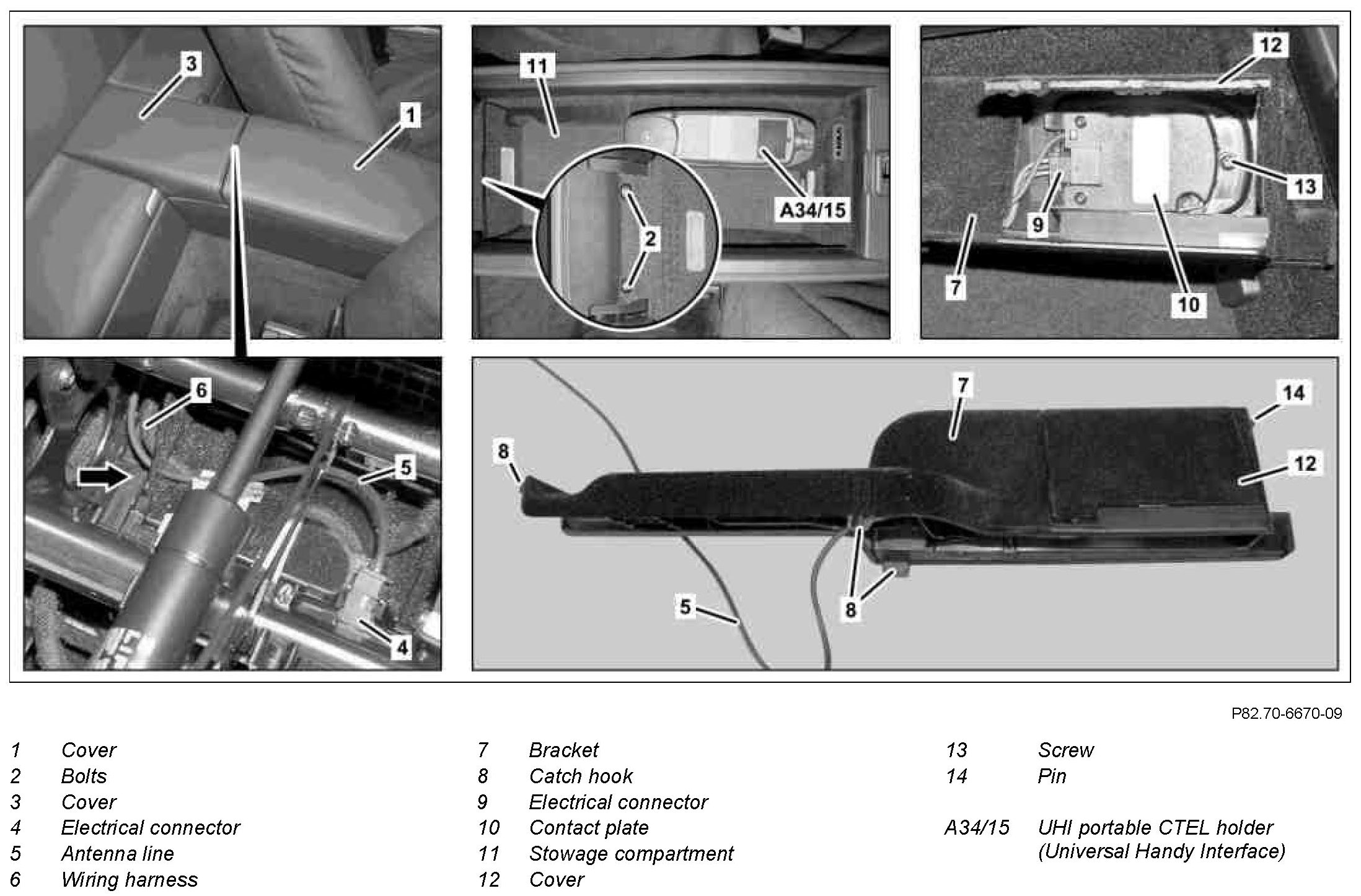

Component Identification:




Component Identification:

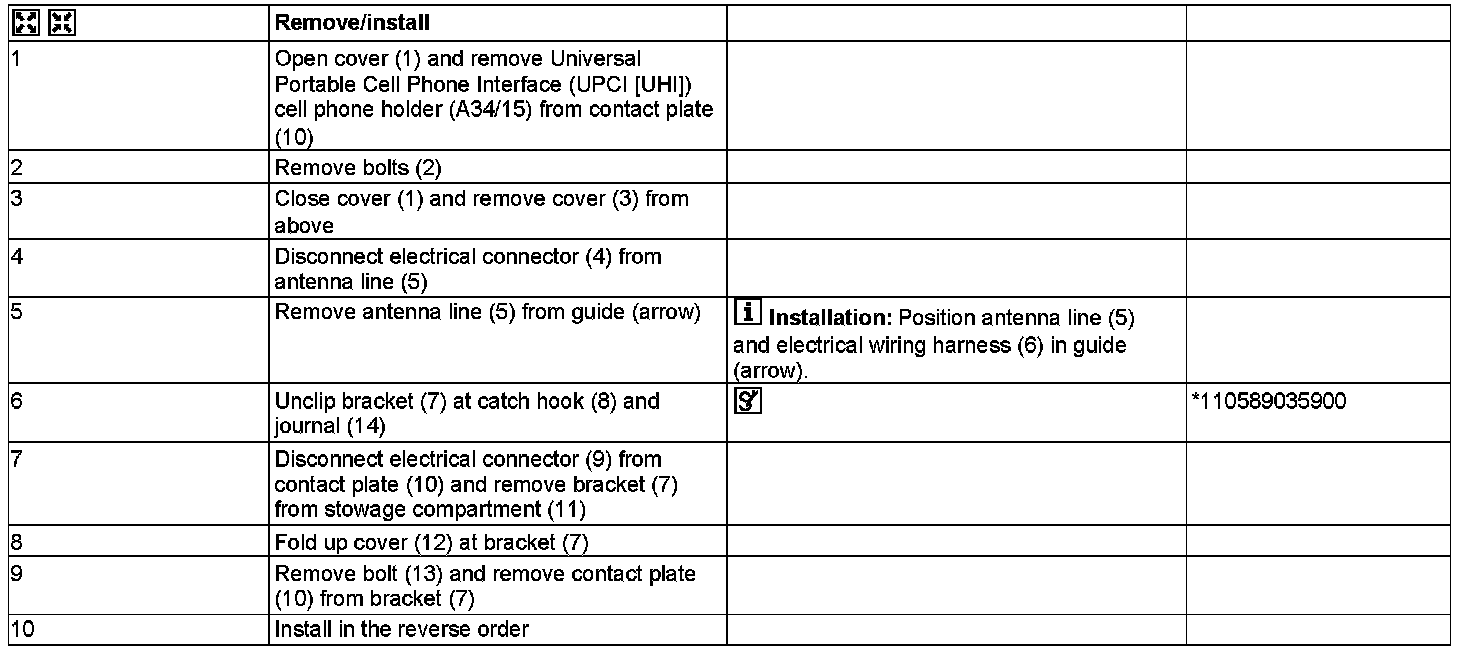

Steps 1 - 10:




Special Tools:
