Front Door Window Regulator: Service and Repair

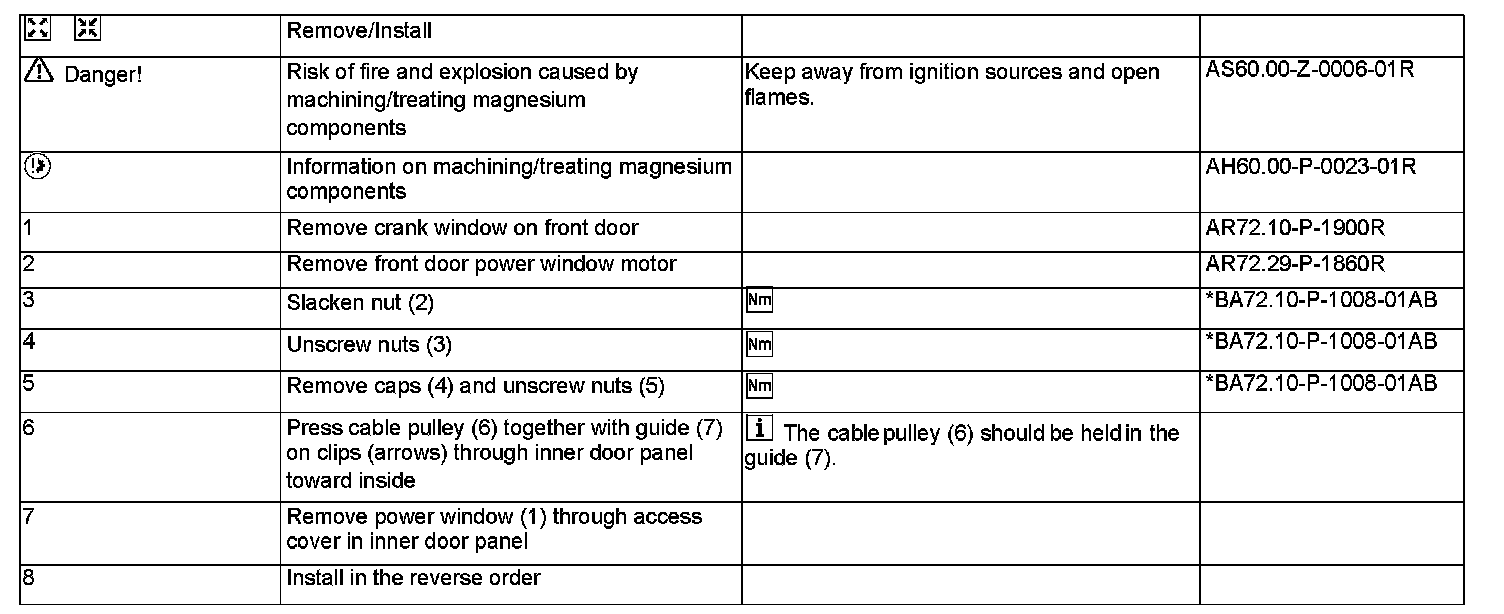

Remove/Install Power Window On Front Door

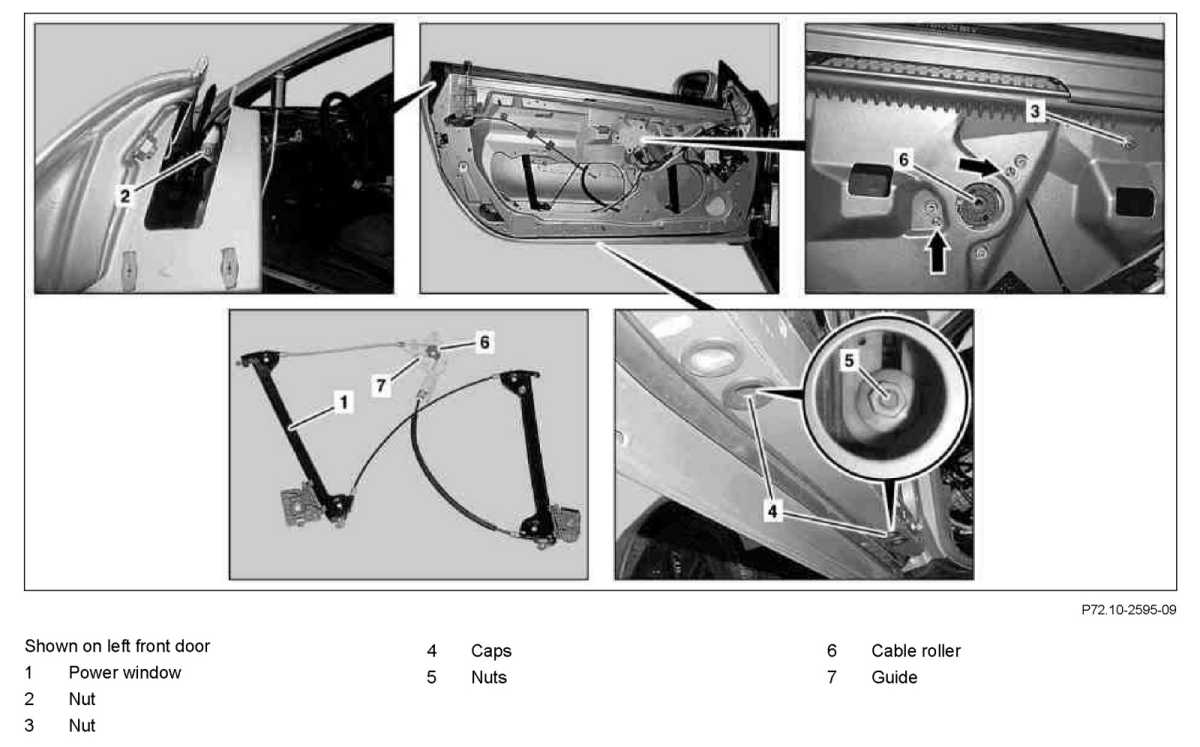

Front Door

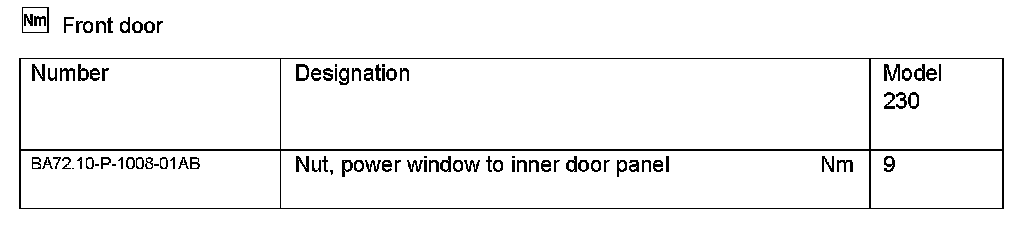

Front Door:
