Quarter Window Motor: Service and Repair

AR67.39-P-4160R Remove/Install Power Window Motor For Rear Side Window







1 Remove rear side window glass

NOTE: Do not remove rear side window from electric window lift mechanism (4)

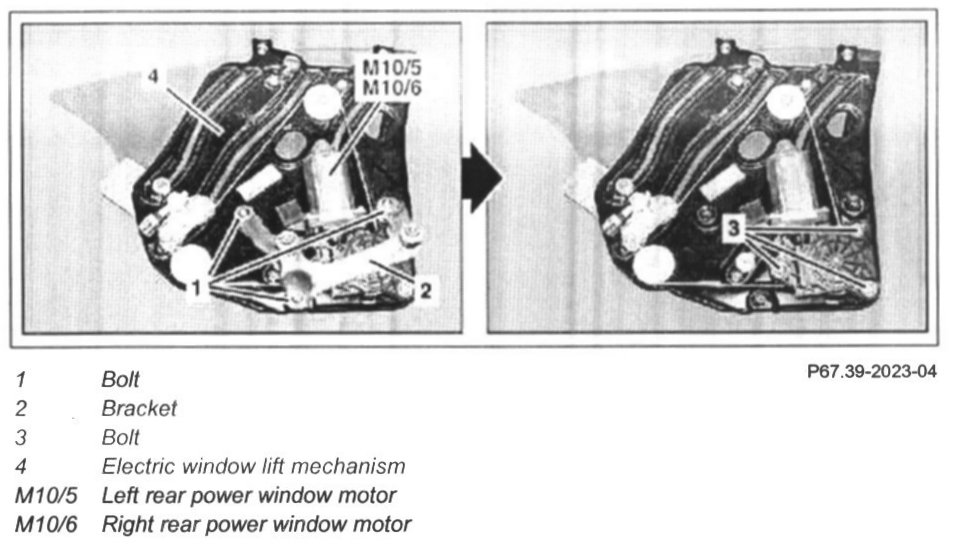

2 Unscrew screws (1) and remove mount (2)
3 Unscrew screws (3)
4 Press rear power window motor (M10/5, M10/6) off of electric window lift mechanism (4) with assembly wedge

NOTE: Installation: Coat gear on power window motor with isoflex Topas L 32

5 Install in the reverse order
6 Check adjustment of rear side window, adjust if necessary
