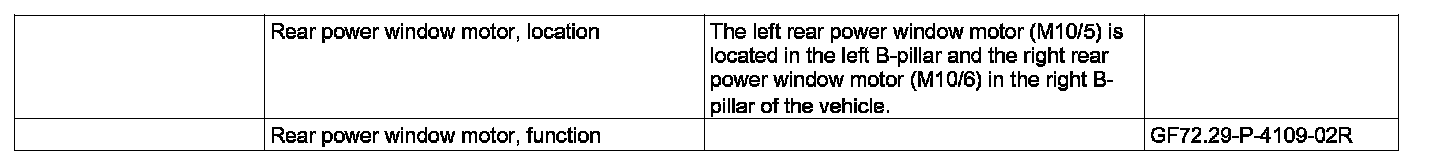

GF72.29-P-4109R Rear Power Window Motor Location/Function
GF72.29-P-4109R Rear Power Window Motor Location/Function
GF72.29-P-4109R Rear Power Window Motor Location/Function
- up to model year 08

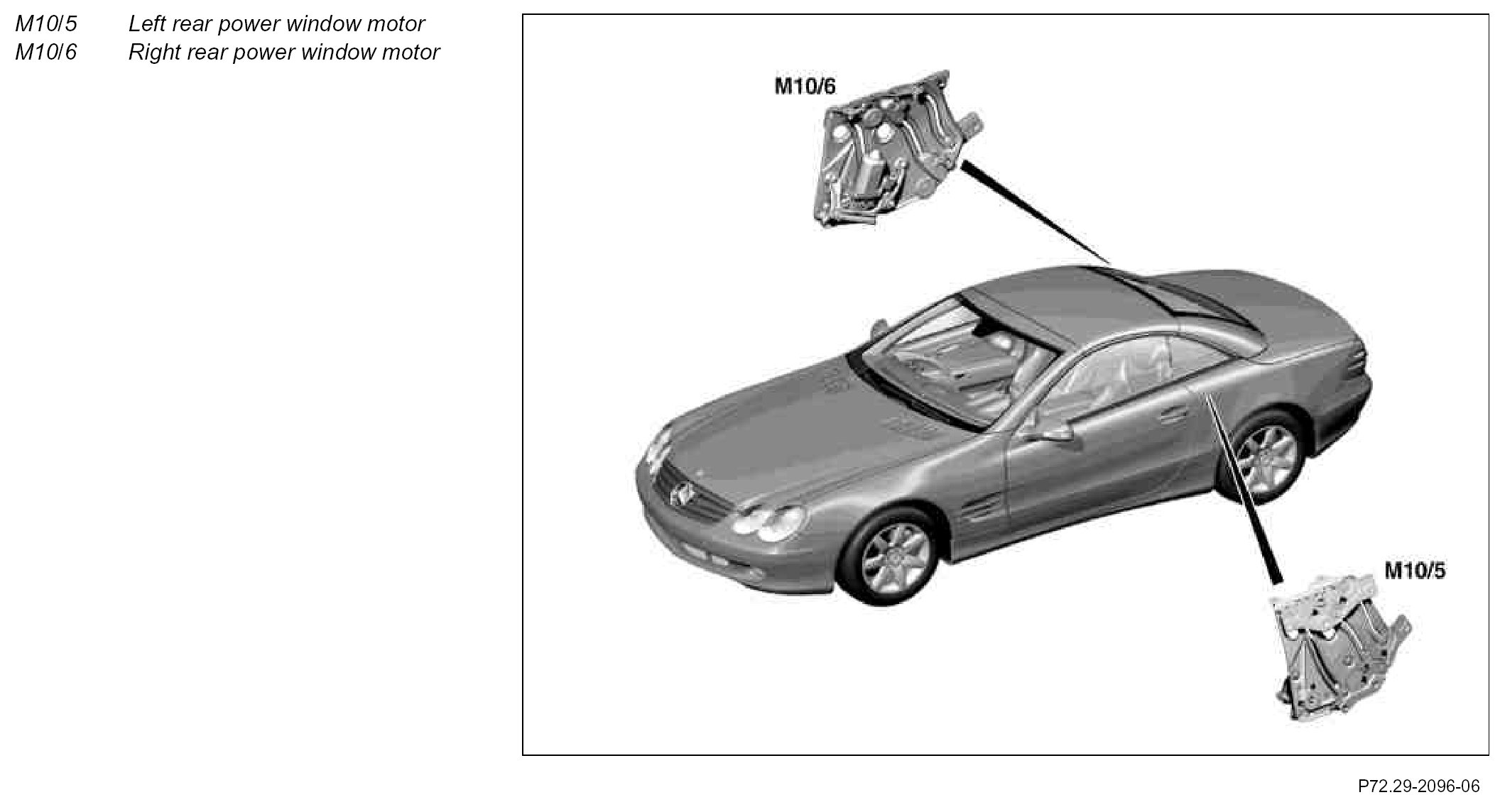

Component Identification:
