GF32.50-P-4623R ABC Level Sensor, Component Description

GF32.50-P-4623R ABC level sensor, component description
- with CODE (487) Active body control (ABC)
- as of 1.3.06 up to model year 08

Component Identification:

Component Identification:

Location

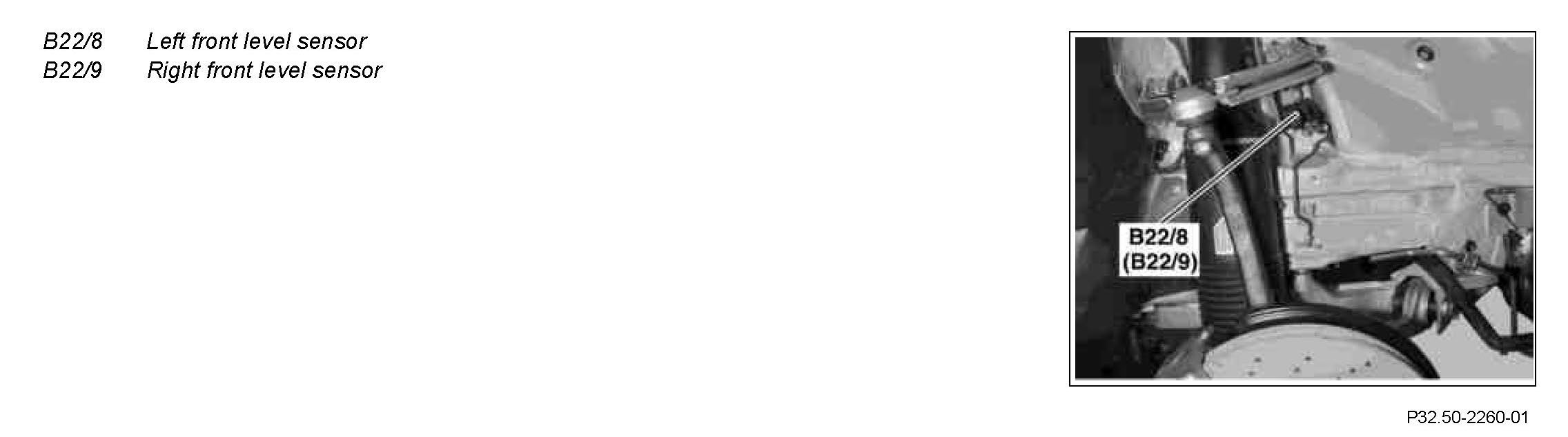

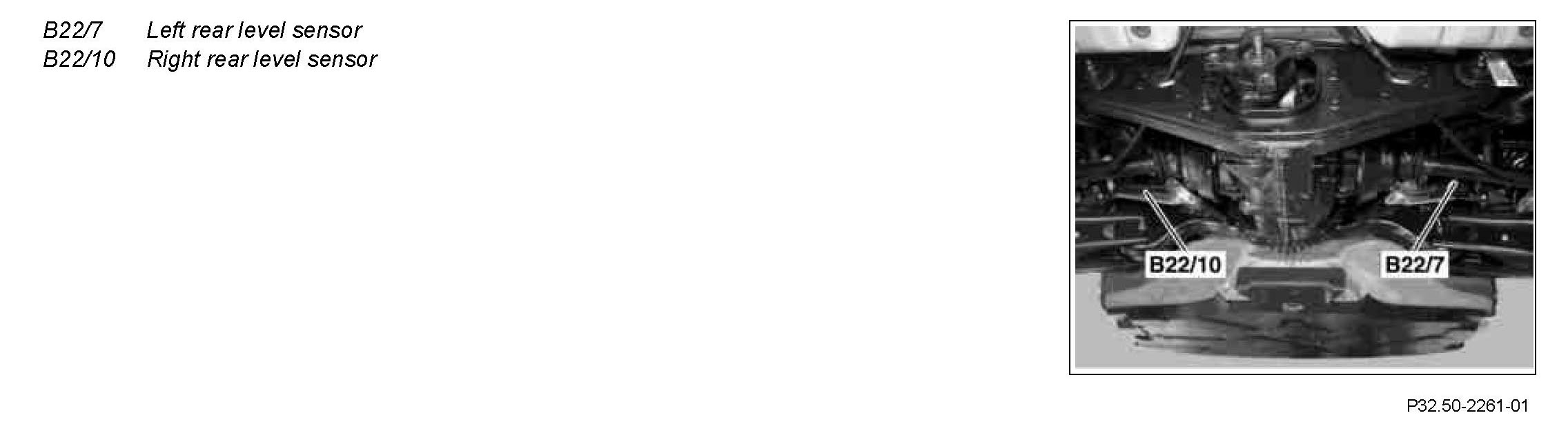

There are two level sensors behind the front wheels and two level sensors on the rear axle.

Task
The four level sensors are required for determining the current vehicle level.
