FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2006
>>
SL 500 (230.475) V8-5.0L (113.963)
>>
Repair and Diagnosis
>>
Steering and Suspension
>>
Suspension
>>
Suspension Control ( Automatic - Electronic )
>>
Compressor/Pump Pulsation Damper
>>
Service and Repair
Compressor/Pump Pulsation Damper: Service and Repair

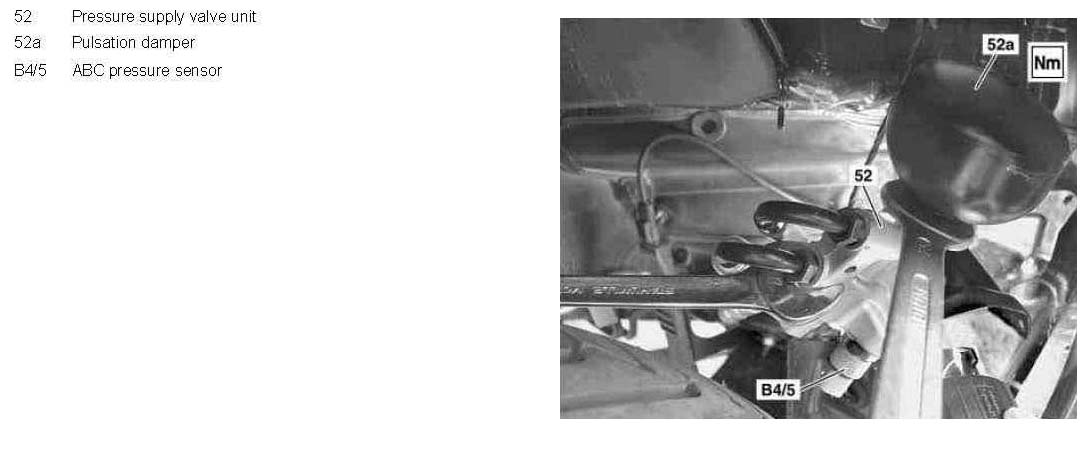

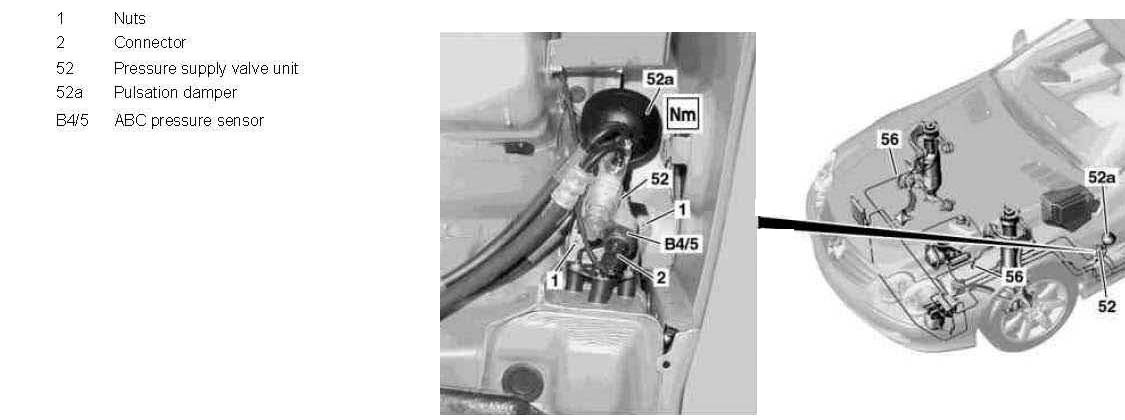

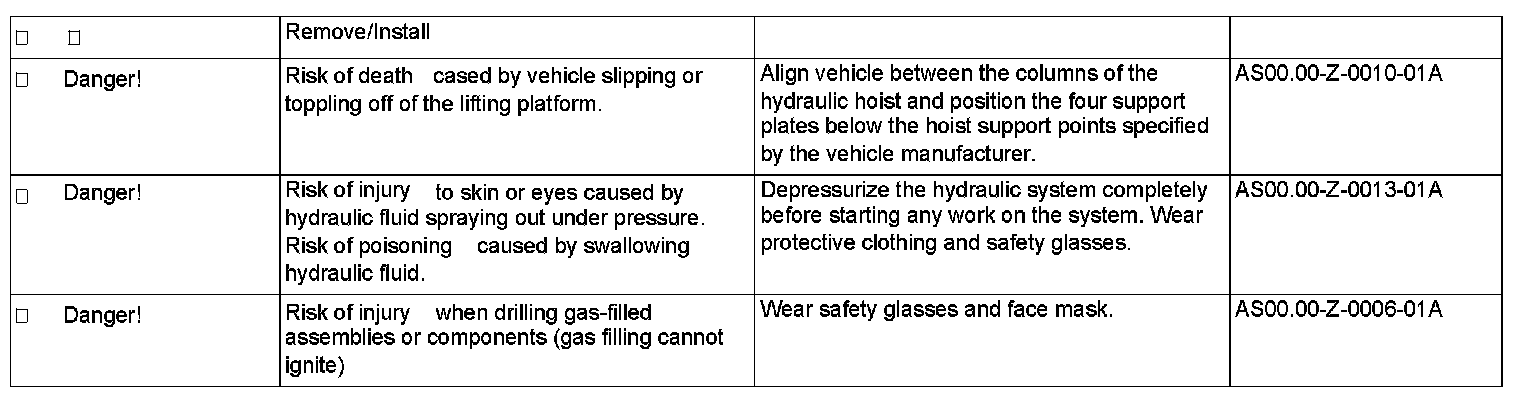

AR32.50-P-0013R Remove/install pulsation damper
- With CODE (487) Active Body Control (ABC)

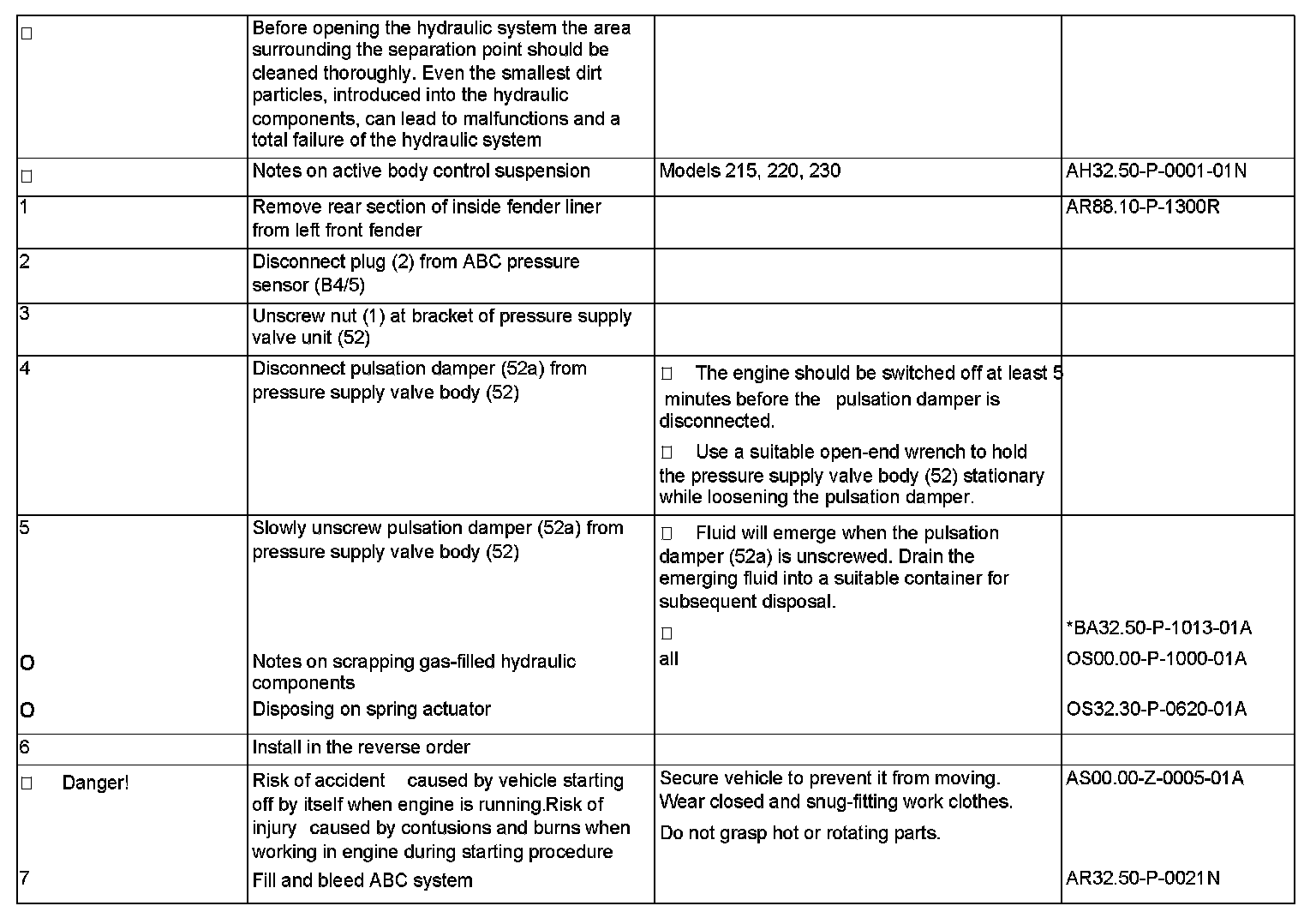

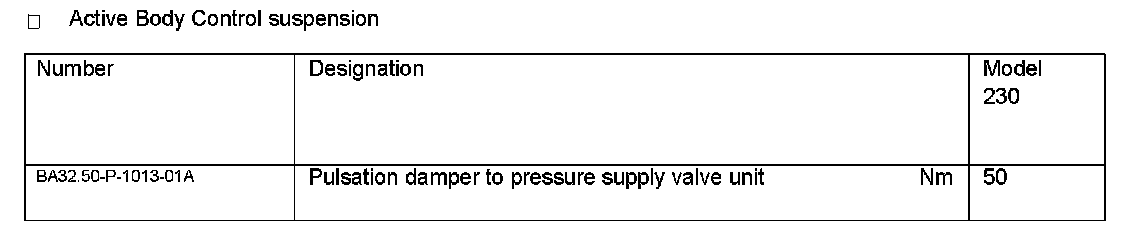

Steps 1-7:
