AR33.15-P-017ORBS Remove/Install Spring Control Arm on Front Axle



AR33.15-P-017ORBS Remove/install spring control arm on front axle
- with CODE (P99) Special model "AMG Black Series"

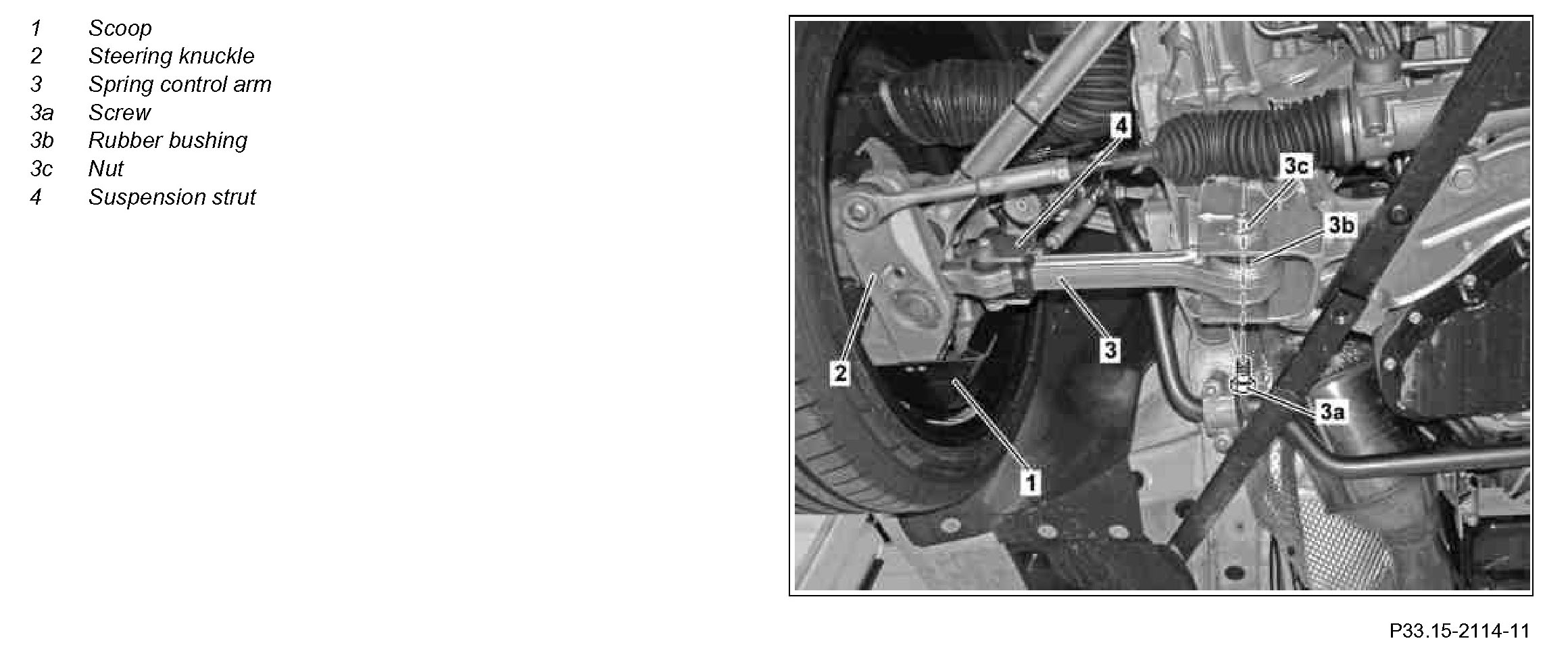

Component Identification:

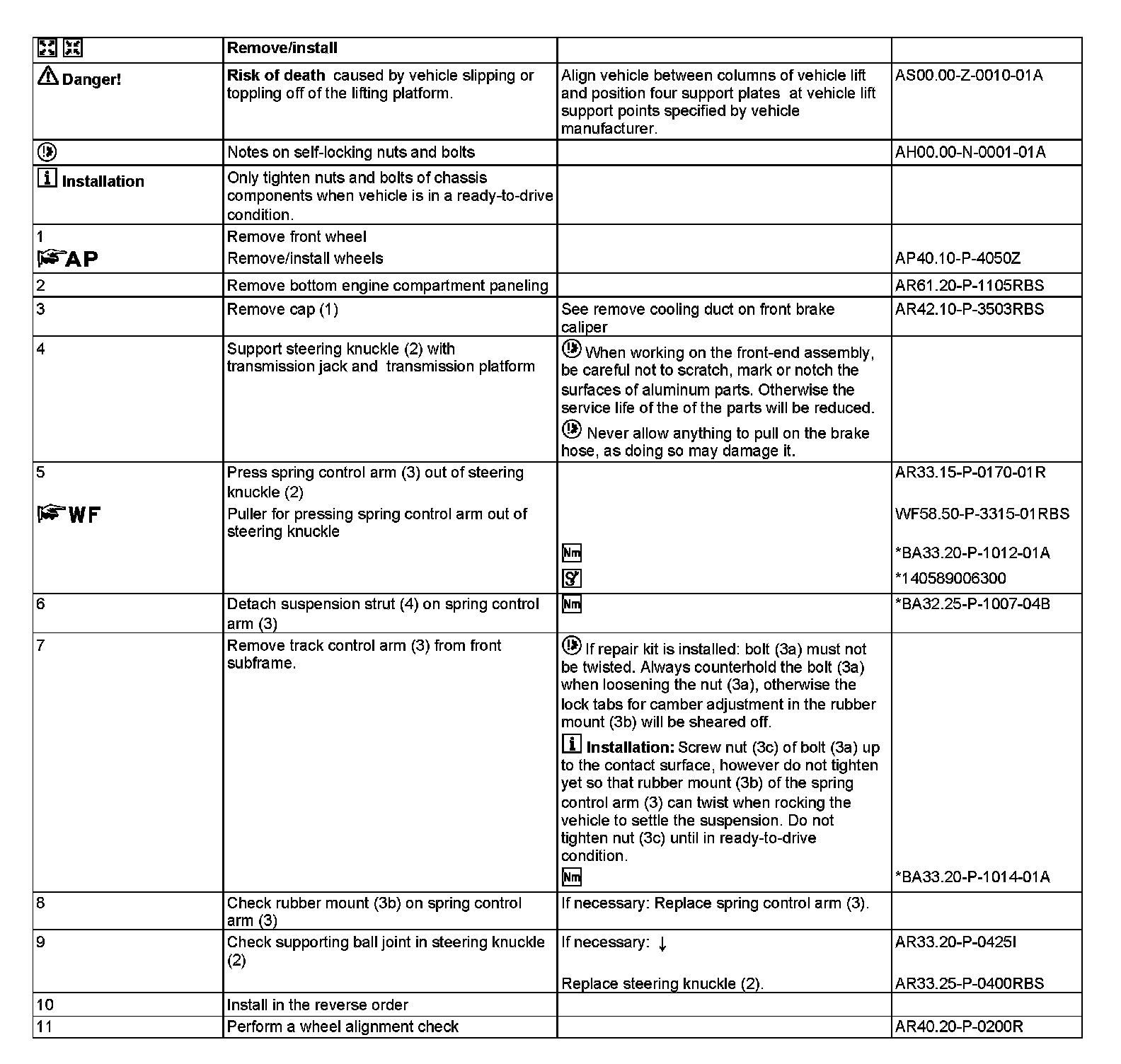

Steps 1-11:




Wheel location, hub:

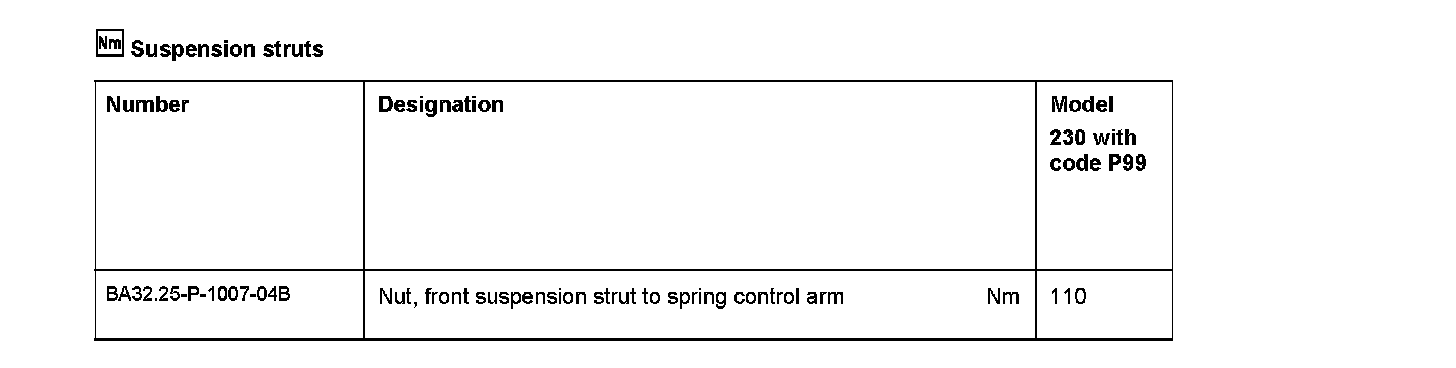

Suspension struts:

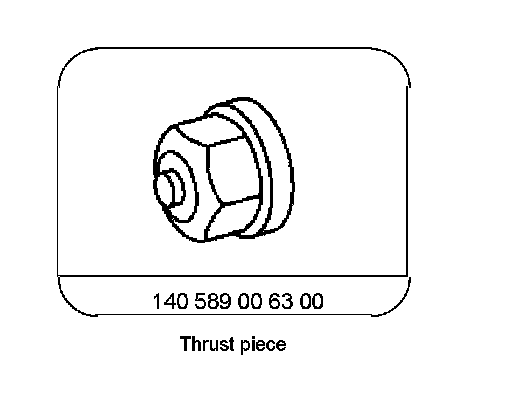

Special Tools:
