Ignition Lock Cable: Service and Repair
AR27.60-P-0122R Remove/install ignition lock control cable

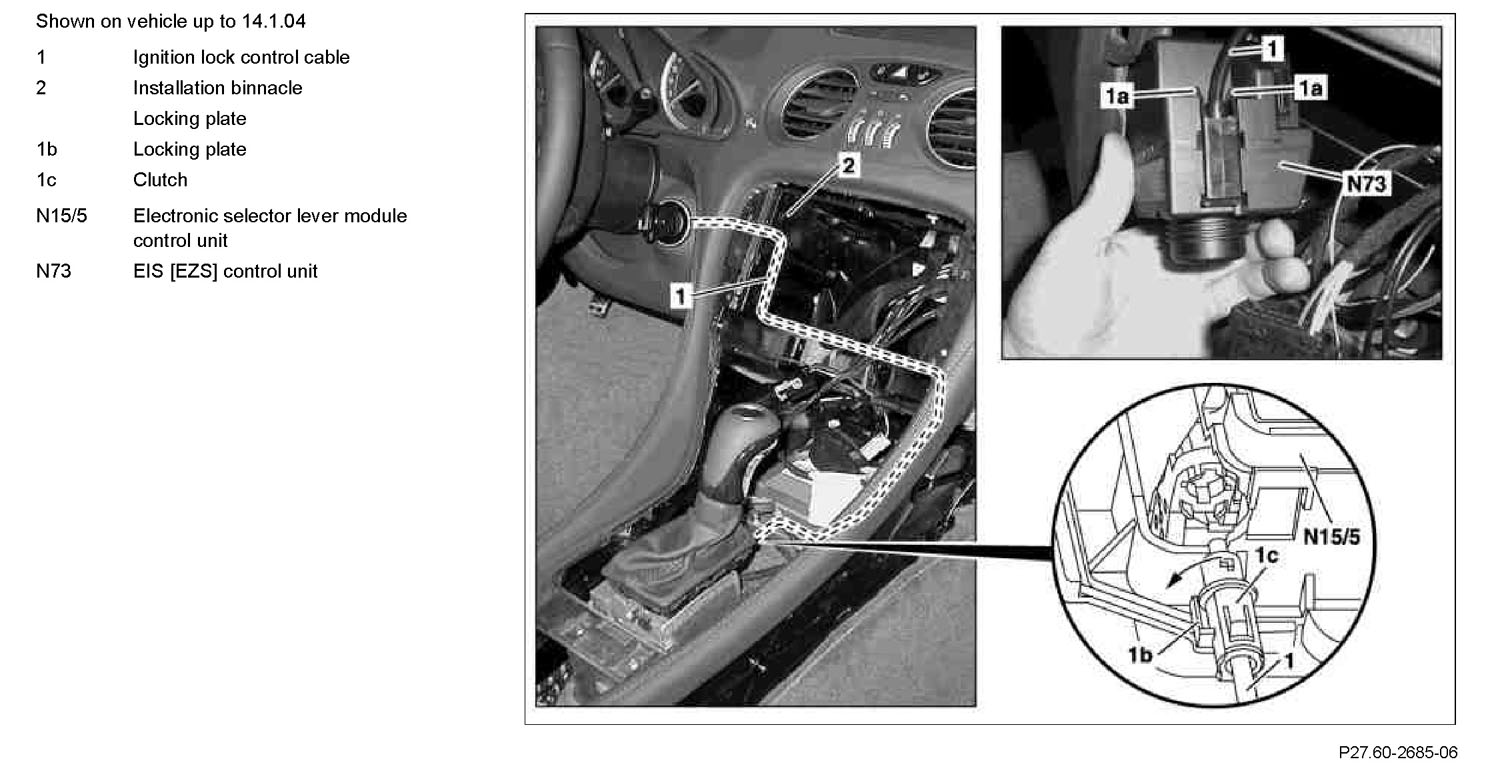

Component Identification:

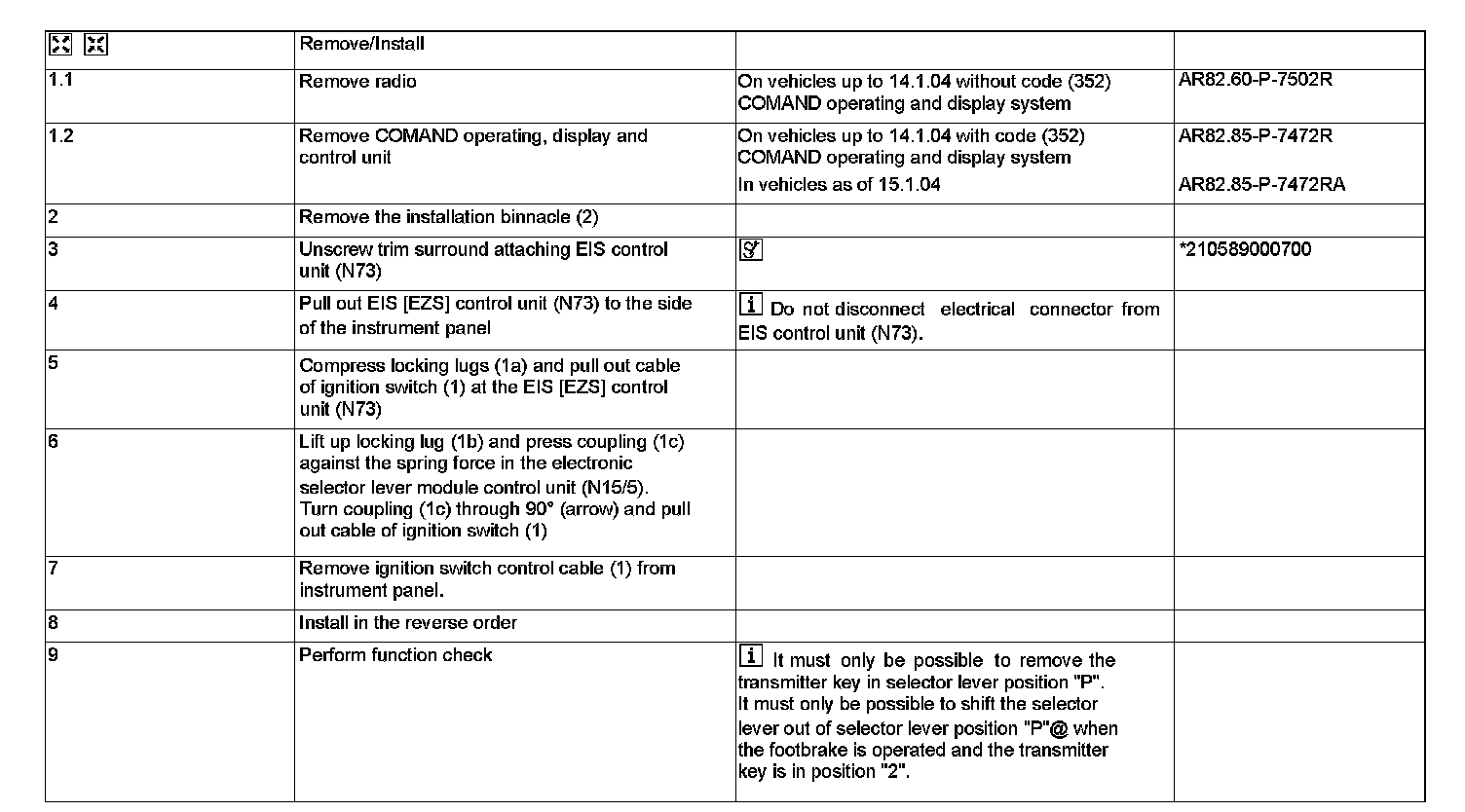

Steps 1.1 - 9:

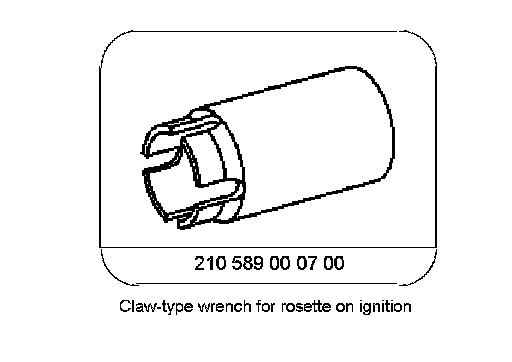

Special Tools:
