AR15.40-P-5009R Prerequisites For Testing Alternator



AR15.40-P-5009R Prerequisites For Testing Alternator

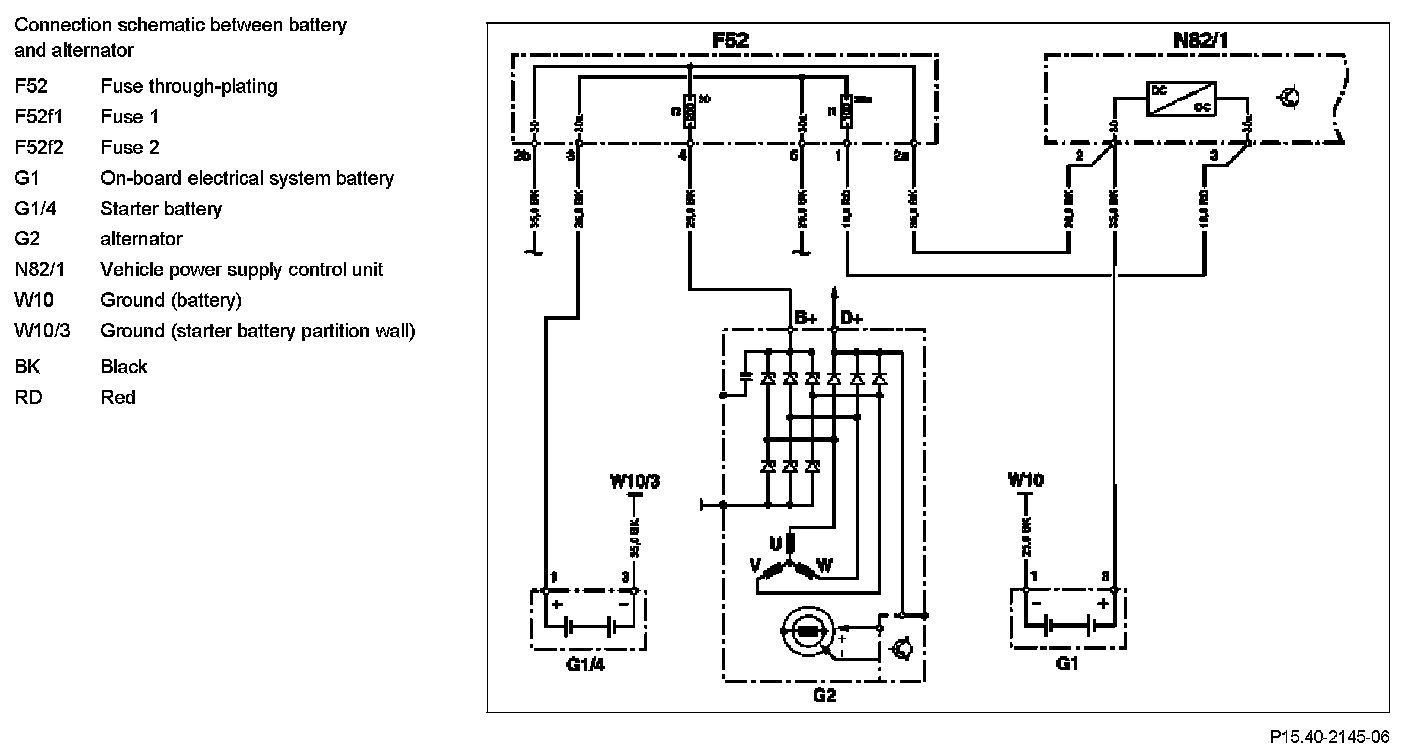

Connection Schematic Between Battery And Alternator:




Component Identification:

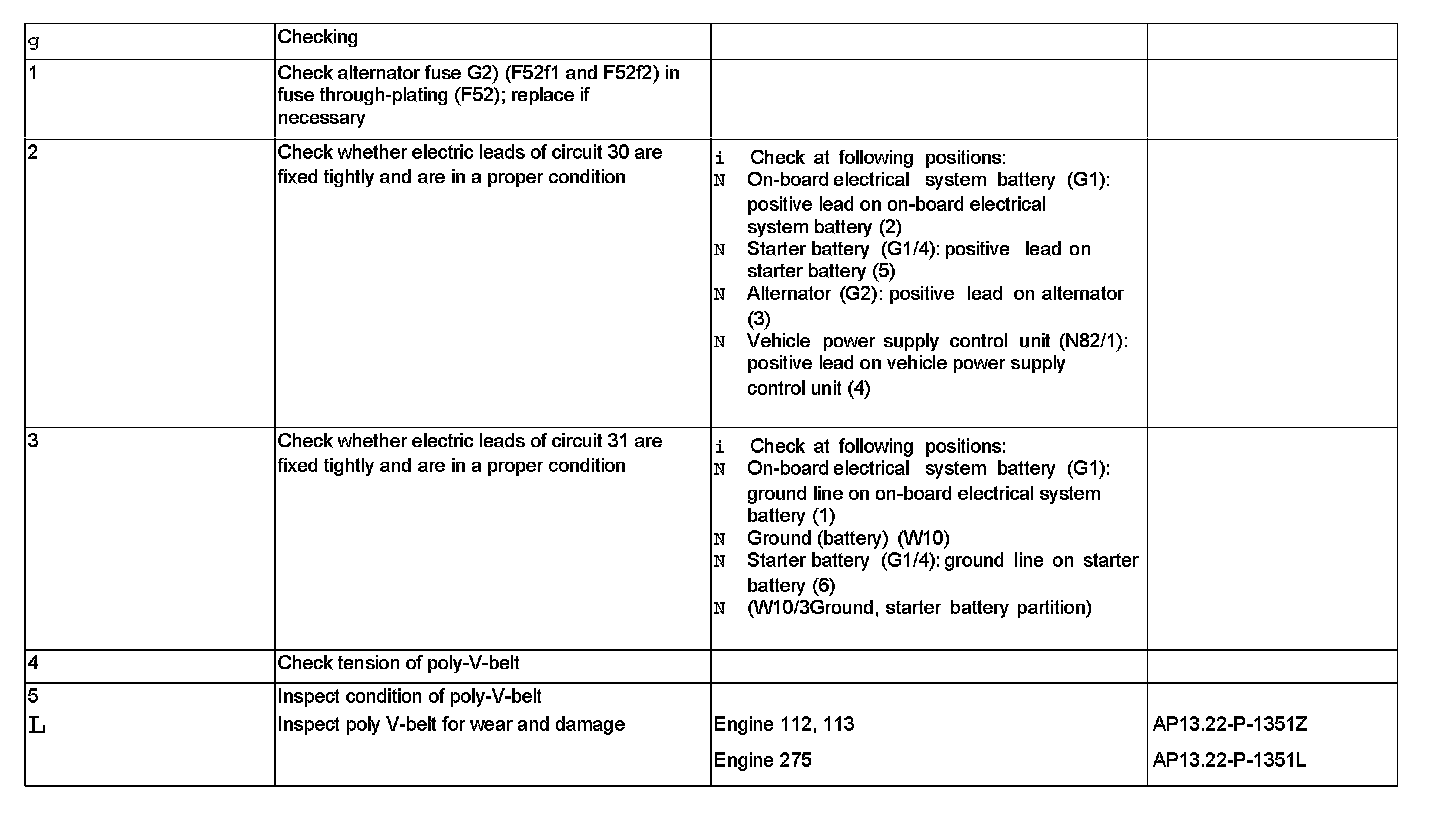

Steps 1 - 5:
