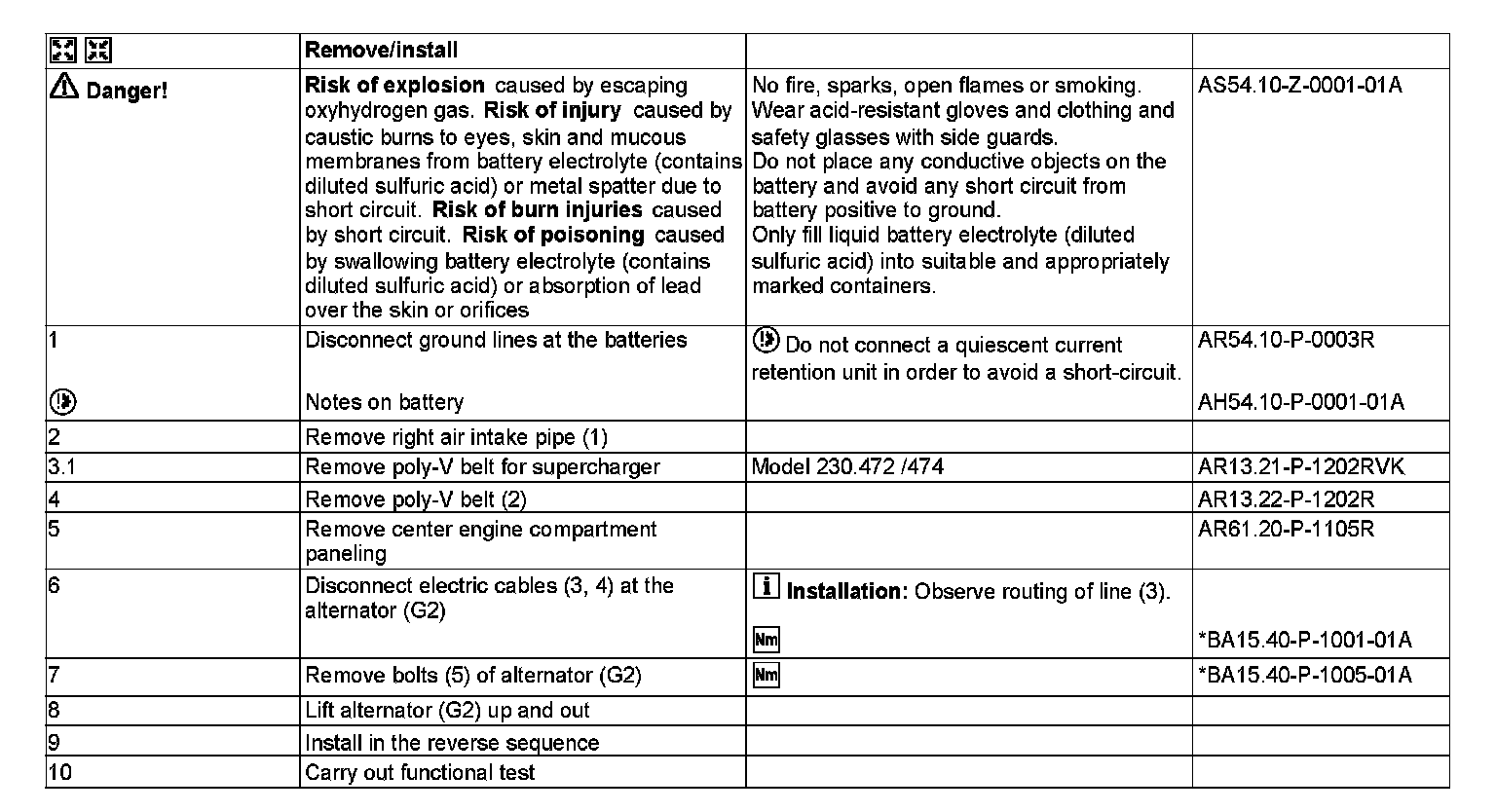

AR15.40-P-5032R Remove/Install Alternator
AR15.40-P-5032R Remove/Install Alternator
ENGINE 112, 113 in MODEL 230

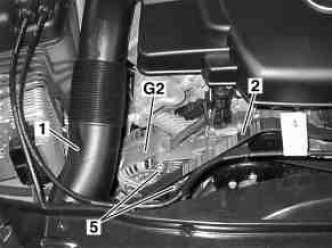

1 Air intake pipe
2 Poly-V-belt
5 Bolts
G2 Alternator
3 Electrical cable, circuit 30 (B+)
4 Electric cable, circuit. 61 (D+)
