Home >> Mercedes Benz >> 2006 >> SL 500 (230.475) V8-5.0L (113.963) >> Repair and Diagnosis >> Starting and Charging >> Battery >> Service and Repair >> Removal and Replacement >> AR54.10-P-0005RBS Remove/Install Battery

AR54.10-P-0005RBS Remove/Install Battery



AR54.10-P-0005RBS Remove/install Battery
- with CODE (P99) Special model "AMG Black Series"


Component Identification:

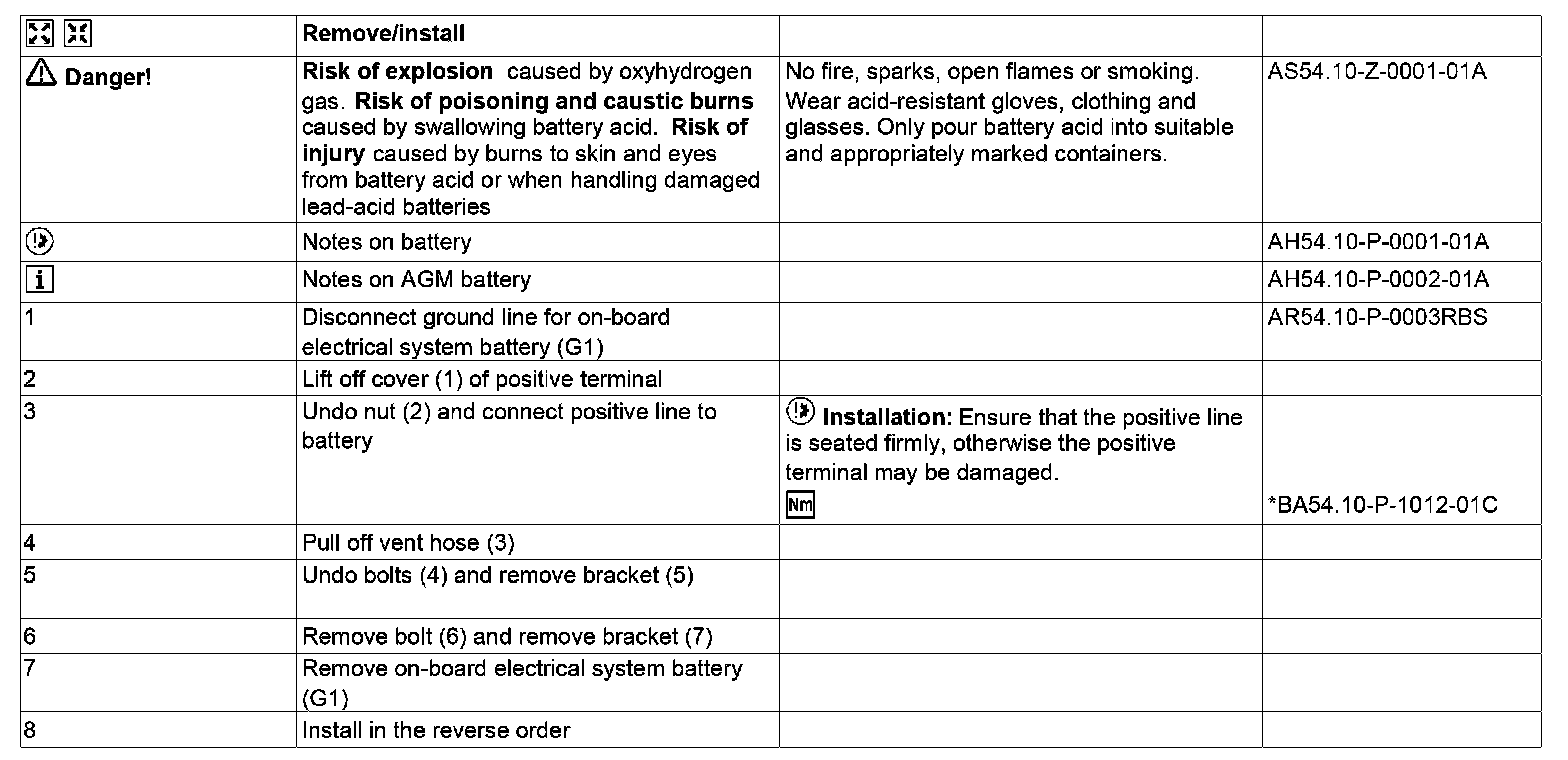

Steps 1-8:

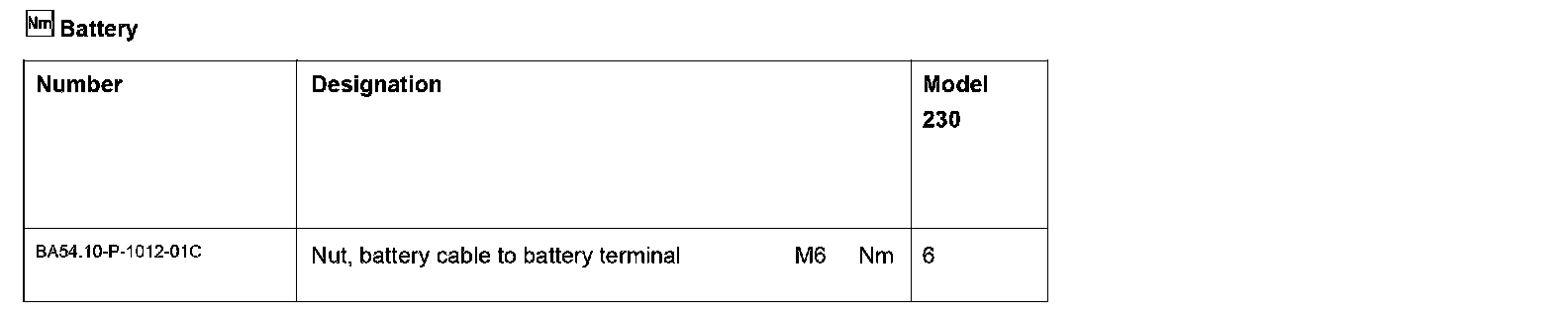

Battery:
