GF91.60-P-4008-02R Seat Occupied Recognition Sensor With Automatic Child Seat Recognition, Design

GF91.60-P-4008-02R Seat Occupied Recognition Sensor With Automatic Child Seat Recognition, Design
- up to Model Year 8
- except CODE (494) USA version
- up to 28.2.06
- with CODE (494) USA version

Component Identification:

Design

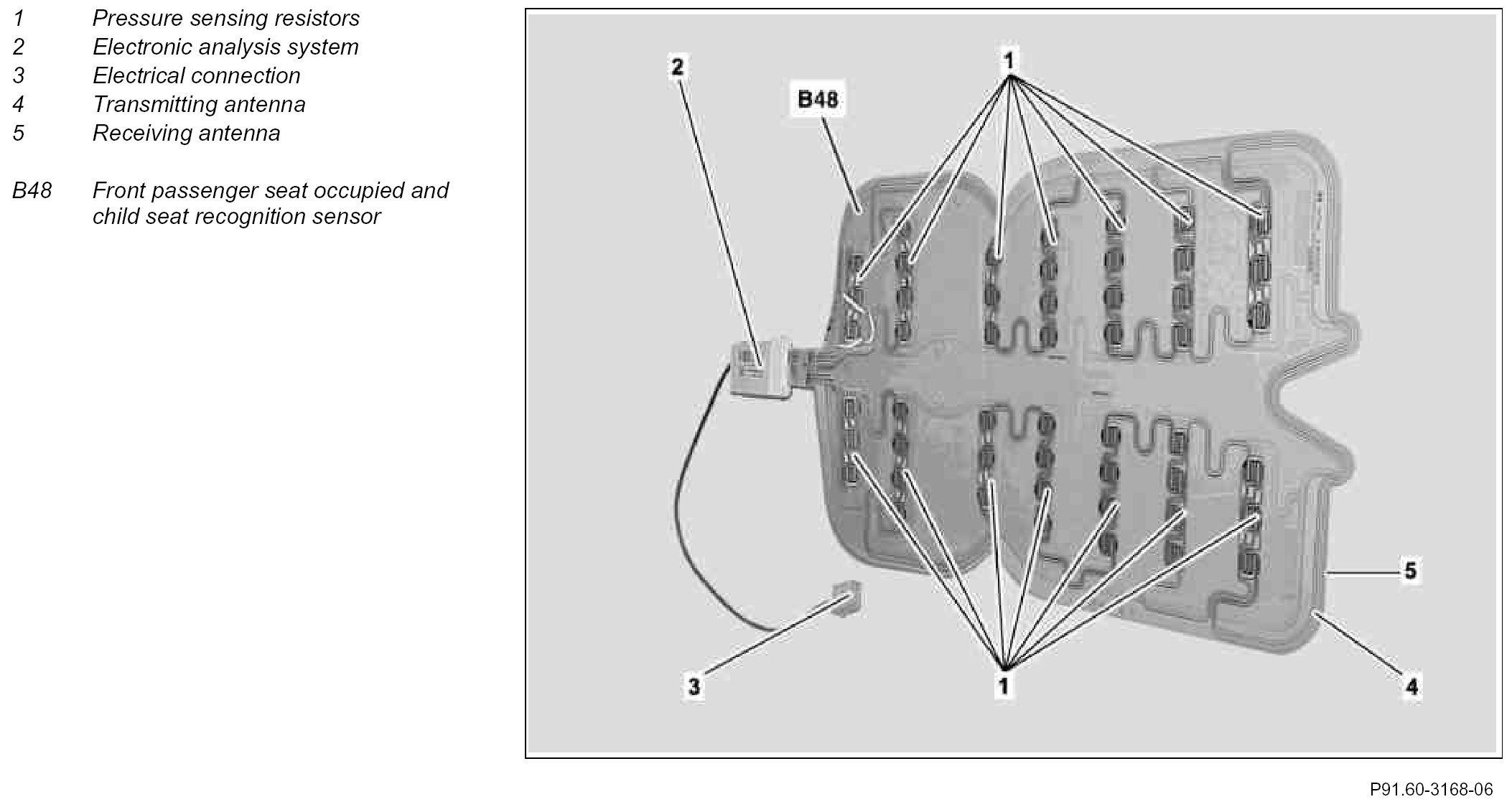

The front passenger seat occupied and child seat recognition sensor (B48) consists of a sensor mat integrated into the seat area on the front passenger seat with attendant electronic analysis system (2).
The sensor mat contains the following components:
^ Pressure sensing resistors (1)
^ Two transmitting antennas (4) (left and right)
^ Two receiving antennas (5) (left and right for detection of a child seat)

The track-shaped layout of the pressure sensing resistors (1) covers the entire seat surface. The left and right-hand halves of the sensor mat each have a transmitter antenna (4) and a receiving antenna (5) stamped onto the resistor structure.
