AR88.30-P-0504RBS Remove, Install Limit Switch Below Rear Spoiler
AR88.30-P-0504RBS Remove, Install Limit Switch Below Rear Spoiler
AR88.30-P-0504RBS Remove, Install Limit Switch Below Rear Spoiler
- with CODE (P99) Special model "AMG Black Series"

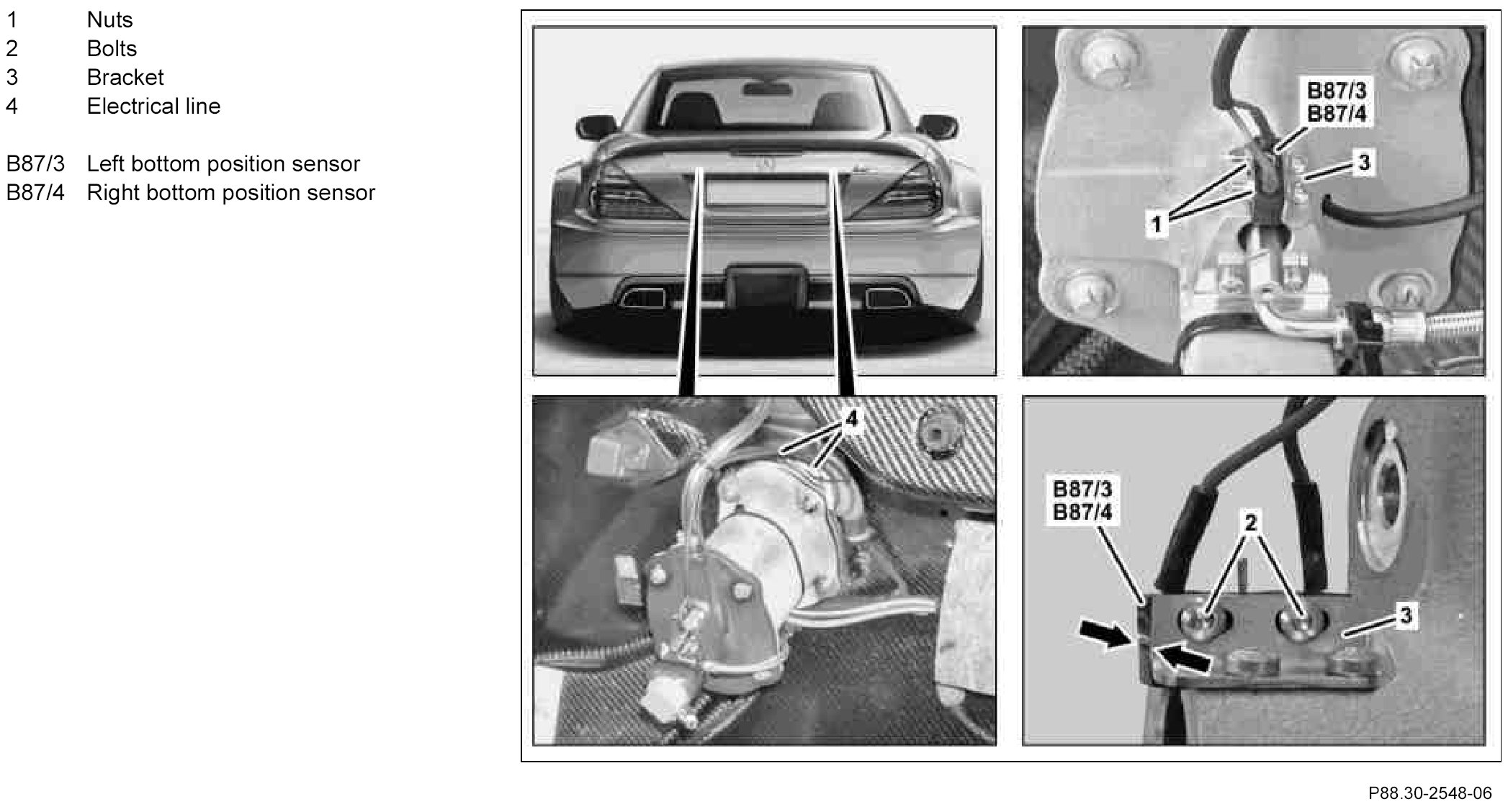

Component Identification:

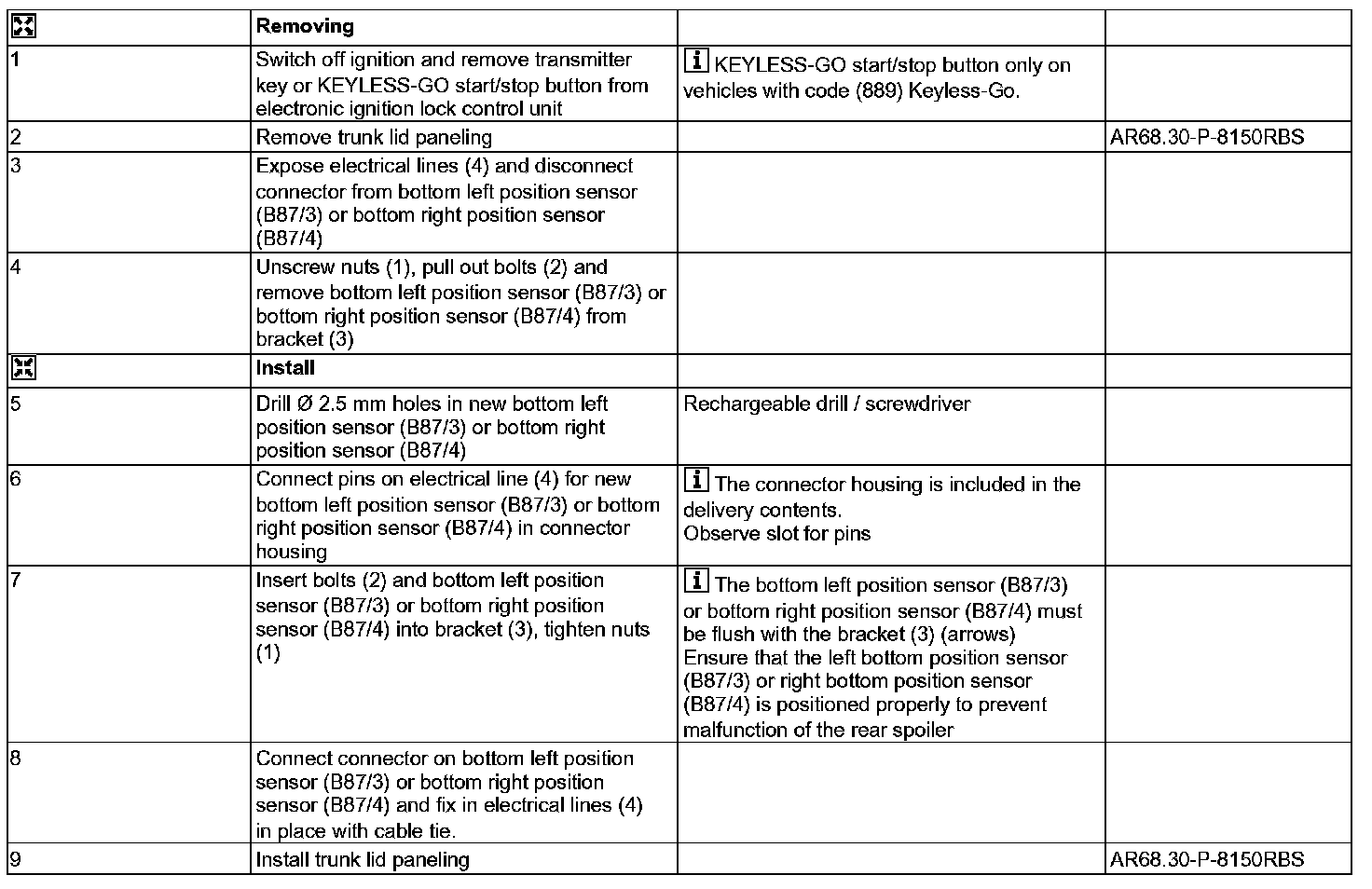

Steps 1 - 9:
