AR88.30-P-0503RBS Remove, Install Limit Switch on Top Rear Spoiler



AR88.30-P-0503RBS Remove, Install Limit Switch On Top Rear Spoiler
- with CODE (P99) Special model "AMG Black Series"

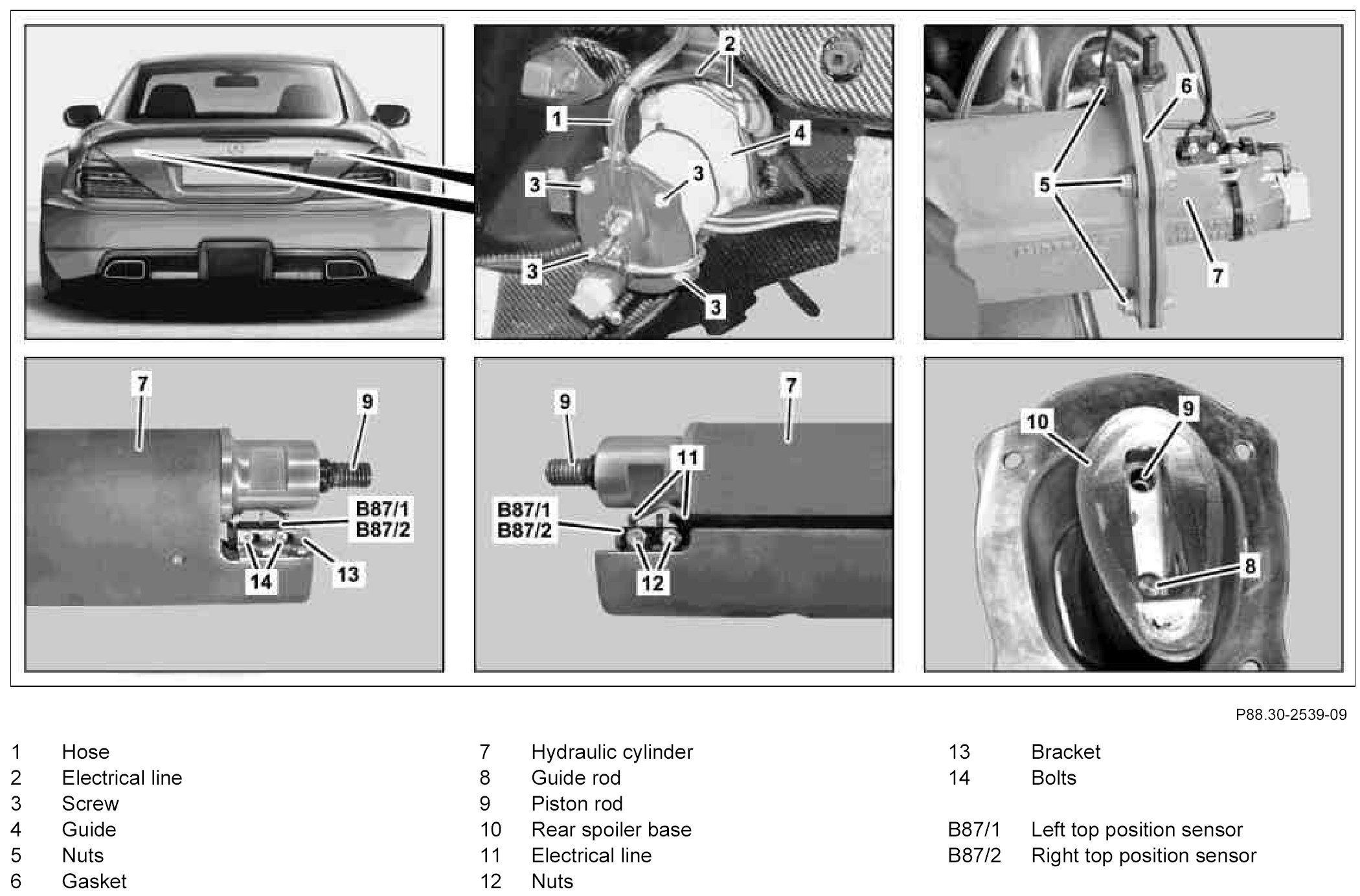

Component Identification:




Component Identification:

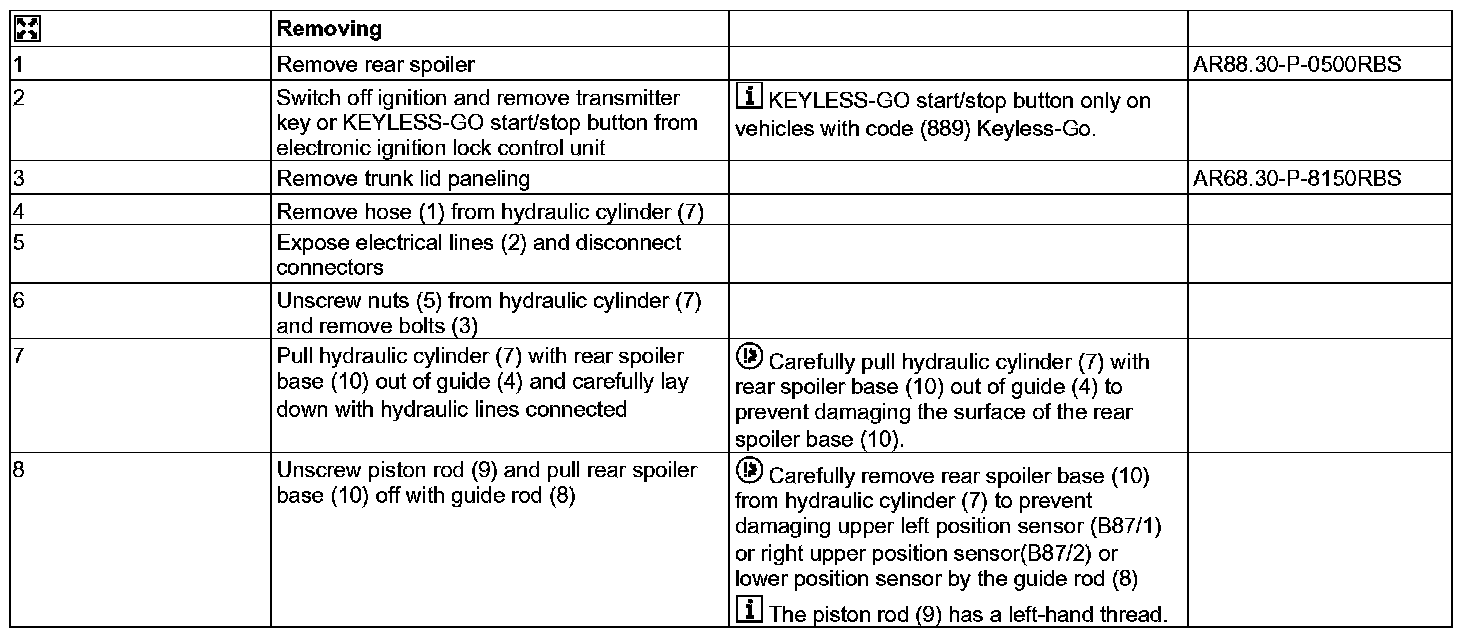

Steps 1 - 8:

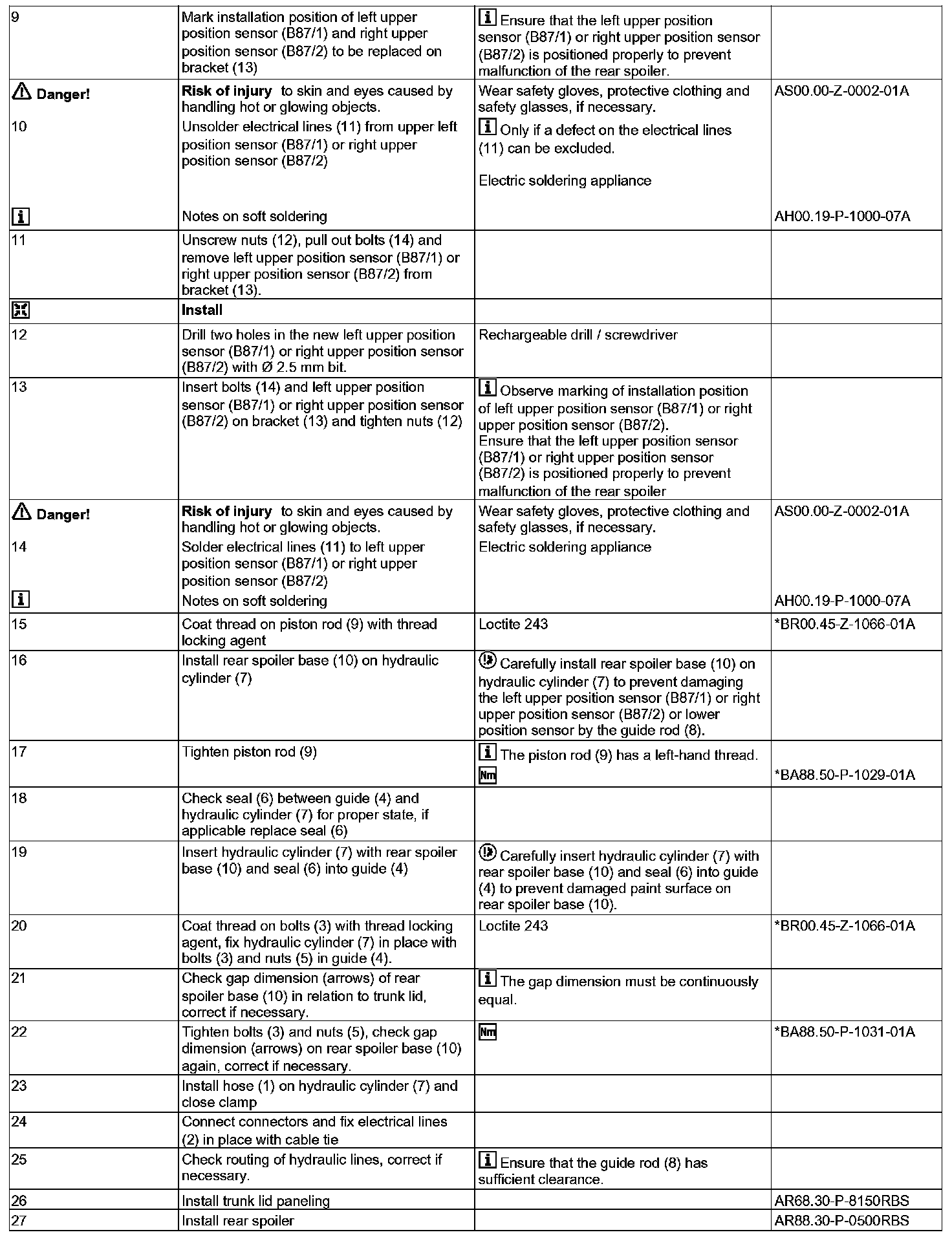

Steps 9 - 27:

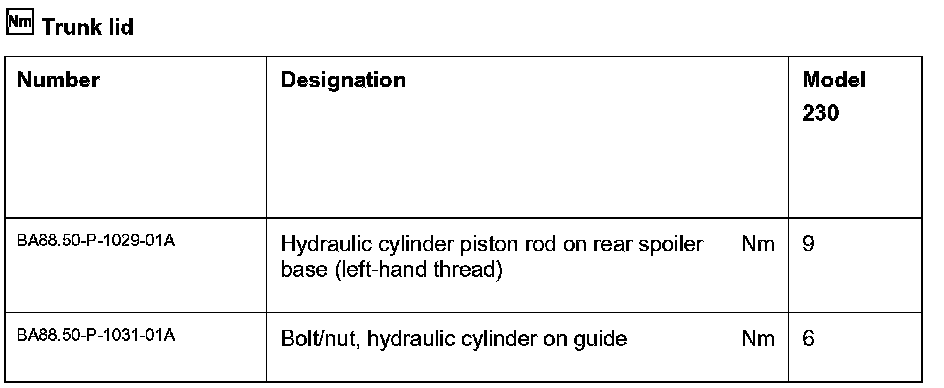

Trunk Lid:

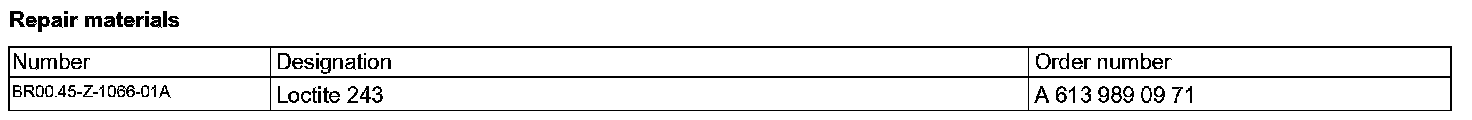

Repair Materials:
