Voice Activation Module: Service and Repair

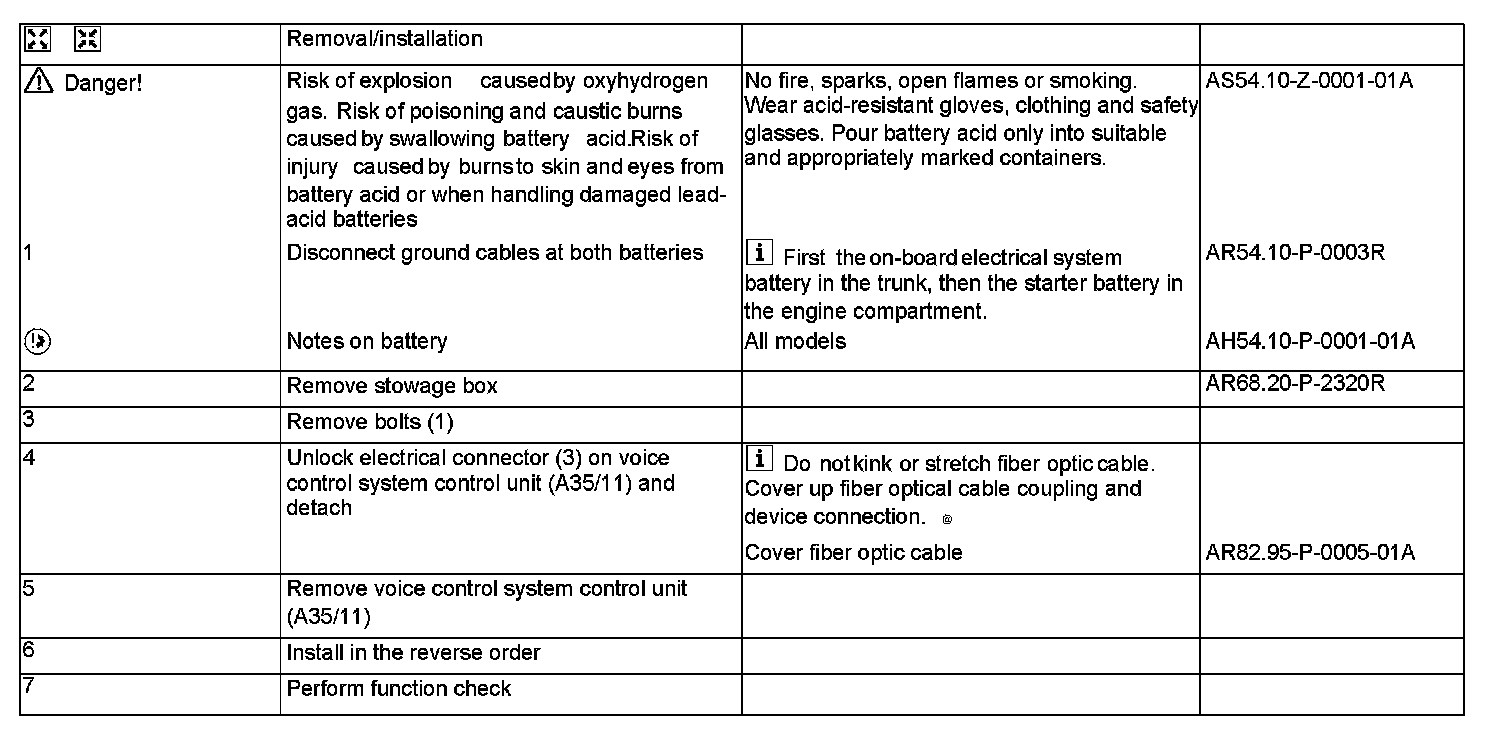

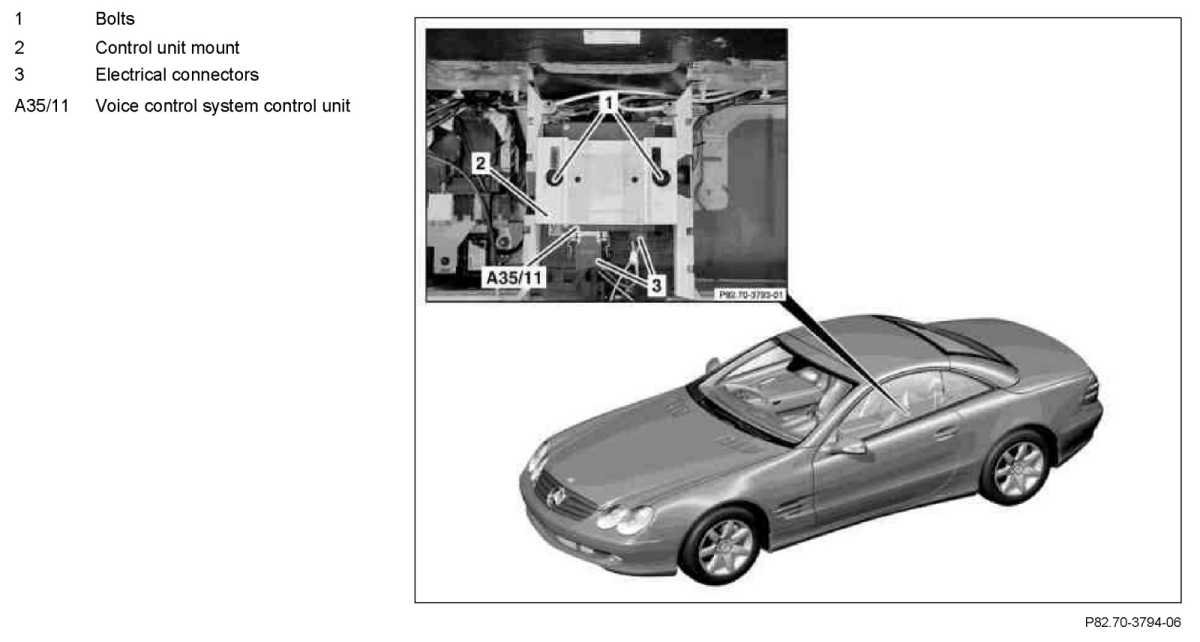

AR82.70-P-0003R Remove/Install Voice Control System Control Unit
- with CODE (813) Voice control system (VCS [SBS])
