AZ54.65-P-0001-04R Installing Control Module



AZ54.65-P-0001-04R Installing Control Module

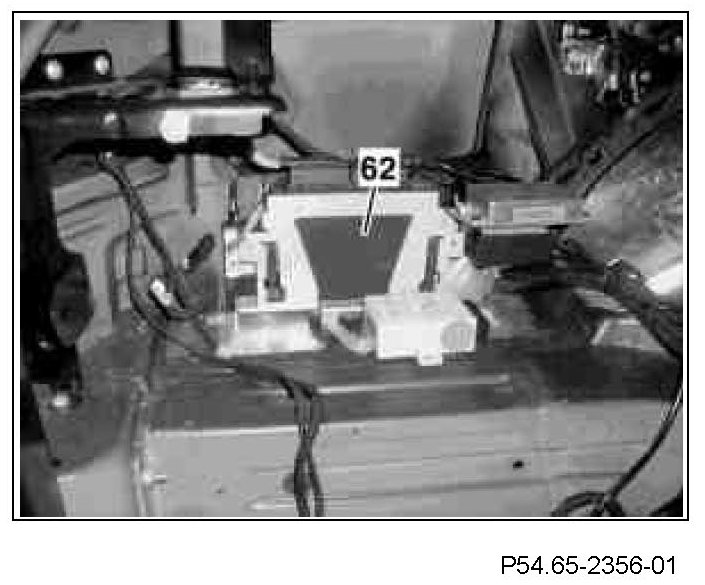

1. Install enclosed ultrasonic PTS back-up assist control module (62) in control module mount on left side of trunk

Ultrasonic back-up assist control module (62) arrests automatically when it is inserted completely into the control module mount.
