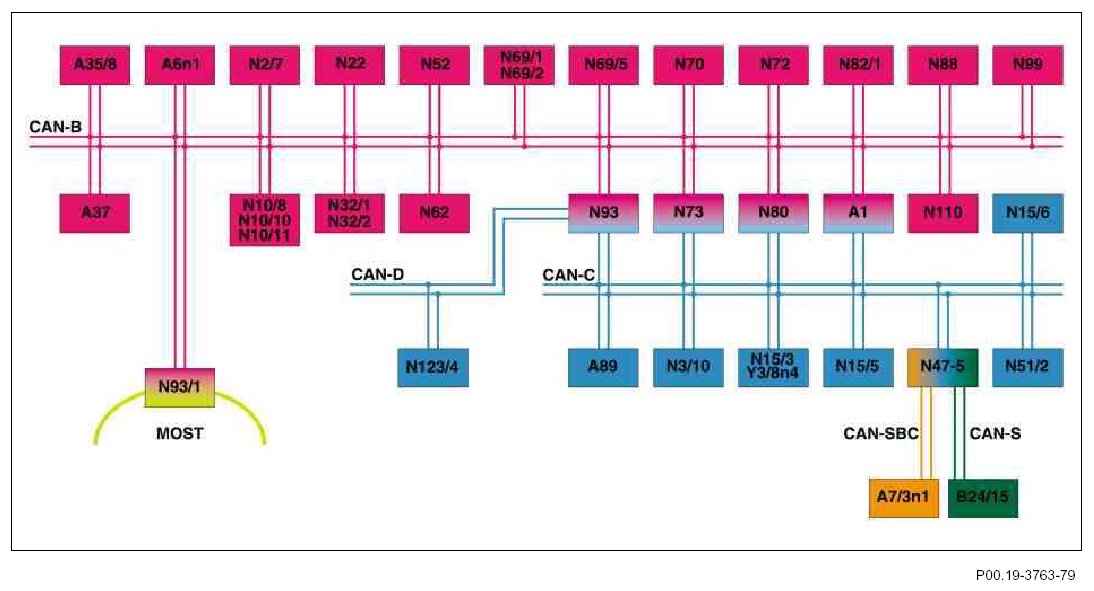

GF00.19-P-0001-02RM Overall Network (GVN), Networking of Components
GF00.19-P-0001-02RM Overall Network (GVN), Networking Of Components
- MODEL 230.4 as of 1.6.04 except CODE (494) USA version up to Model Year 8
- MODEL 230.4 as of 1.7.04 with CODE (494) USA version up to Model Year 8
A1 Instrument cluster
A6n1 STH control unit (with code (228) Stationary heater)
A7/3n1 SBC control unit
A35/8 E-call control unit ( (J) with code (349) E-Call emergency call system (USA) up to 30.6.04 with code (349) E-Call emergency call system)
A37 PSE controller unit (combined)
A89 DTR controller unit (with code (219) Distronic (DTR))
N2/7 Restraint systems control unit
N3/10 ME control unit
N10/8 Rear SAM control unit
N10/10 Driver-side SAM control unit
N10/11 Passenger-side SAM control unit
N15/3 ETC control unit (with transmission 722.6)
N15/5 Electronic selector lever module control unit (with transmission 722)
N15/6 Automated manual transmission control unit (with transmission 716)
N22 AAC [KLA] control and operating unit
N32/1 Left front seat adjustment control unit with memory
N32/2 Right front seat adjustment control unit with memory
N47-5 ESP, SPS [PML] and BAS control unit
N51/2 ABC control unit (with code (487) Active Body Control (ABC))
N52 RSC [UVS] control unit
N62 PTS control unit (with code (220) Parktronic system (PTS))
N69/1 Left door control unit
N69/2 Right door control unit
N69/5 Keyless Go control unit (with code (889) Keyless Go)
N70 Overhead control panel control unit
N72 Lower control panel control unit
N73 EIS [EZS] control unit N80 Steering column module
N82/1 Vehicle power supply control unit
N88 TPM [RDK] control unit (with code (475) Tire pressure monitor (Siemens) or with code (475) Tire pressure monitor (Beru) (USA) or with code (470) Tire pressure monitor (basic))
N93 Central gateway control unit
N93/1 Audio gateway control unit
N99 DC/DC torque converter control unit (with code (443) Steering wheel heater)
N110 Weight Sensing System (WSS) control unit ((USA) as of 1.3.06)
N123/4 Emergency call system control unit ((USA) as of 1.7.04 with code (359) TELE AID emergency call system)
Y3/8n4 Fully integrated transmission control (VGS) control unit (with transmission 722.9)
CAN B Controller area network bus class B (interior compartment) (CAN B)
CAN-C Controller Area Network bus, class C (engine compartment) (CAN C)
CAN-D Controller Area Network bus class D (diagnosis) SBC CAN Brakes CAN CAN-S Sensor CAN
MOST Media Oriented System Transport (MOST)

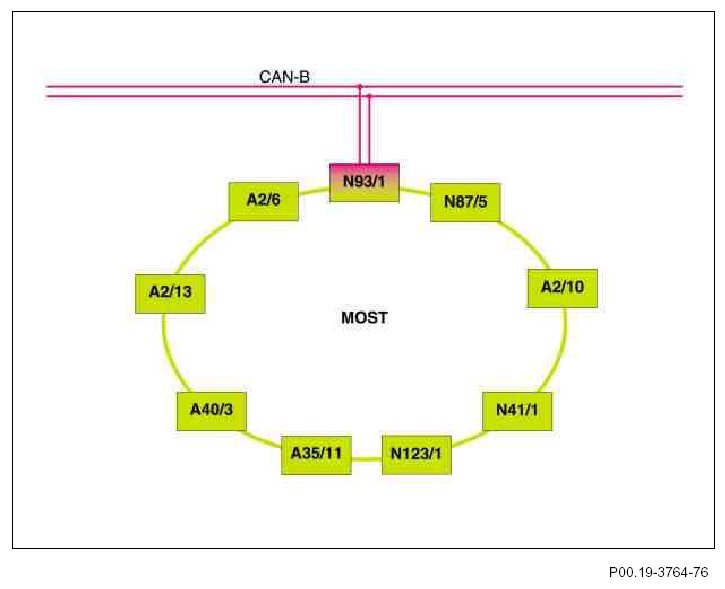

A2/6 CD player with changer (with code (819) 6-disk CD changer)
A2/10 TV tuner (MOST) (with code (860) TV tuner)
A2/13 Sound amplifier (with code (810) Sound system)
A35/11 Voice control system control unit (with code (813) Voice control system (VCS [SBS])
A40/3 COMAND operating, display and controller unit
N41/1 Navigation processor (with (USA) or with code (527) COMAND APS (with navigation system))
N87/5 SDAR control unit (with code (536) (SIRIUS satellite radio)
N93/1 Audio gateway control unit
N123/1 Universal Portable CTEL Interface (UPCI [UHI]) control unit (with (USA) or with code (387) Preinstallation for telephone "Handy", UPCI system, USA/Canada or with code (386) Preinstallation for telephone "Handy", UPCI system or with code (388) Telephone "Handy", UPCI system)
CAN B Controller area network bus class B (interior compartment) (CAN B)
MOST Media Oriented System Transport (MOST)
