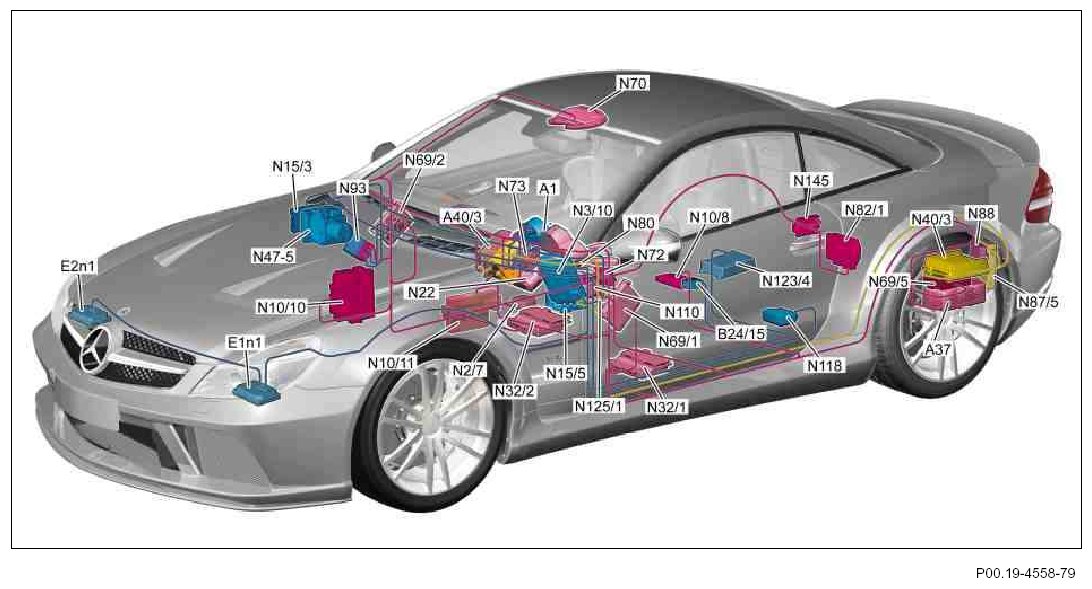

GF00.19-P-0001-01RIT Overall Network (GVN), Location of Components

GF00.19-P-0001-01RIT Overall Network (GVN), Location Of Components
- MODEL 230.4 with CODE (P99) Special model "AMG Black Series"






A1 Instrument cluster
A37 PSE controller unit with combined functions
A40/3 COMAND operating, display and controller unit
B24/15 Turn rate and lateral acceleration sensor
E1n1 Xenon headlamp control unit
E2n1 Xenon headlamp control unit
N2/7 Restraint systems control unit
N3/10 ME-SFI [ME] control unit
N10/8 Rear SAM control unit
N10/10 Driver-side SAM control unit
N10/11 Passenger-side SAM control unit
N15/3 ETC [EGS] control unit
N15/5 Electronic selector lever module control unit
N22 AAC [KLA] control and operating unit
N32/1 Front seat adjustment control unit with memory, left (with code (494) USA version)
N32/2 Front seat adjustment control unit with memory, right (with code (494) USA version)
N40/3 Sound system amplifier (with code (810) Sound system)
N47-5 ESP, SPS [PML] and BAS control unit
N69/1 Door control module left
N69/2 Door control module right
N69/5 Keyless-Go control unit (with code (889) Keyless-Go)
N70 Overhead control panel control unit
N72 Lower control panel control unit
N73 EIS [EZS] control unit N80 Steering column module
N82/1 Vehicle power supply control module
N87/5 SDAR control unit (with code (536) SIRIUS satellite radio)
N88 TPM [RDK] control unit (with code (470) Tire pressure monitor (standard))
N93 Central gateway control unit
N110 WSS (Weight Sensing System) control unit (with code (494) USA version)
N118 Fuel pump control unit
N123/4 Emergency call system control unit (with code (359) TELE AID emergency call system)
N125/1 Media interface control unit (with code (518) Media interface)
N145 AMG DRIVE UNIT control unit
