Data Link Connector: Description and Operation

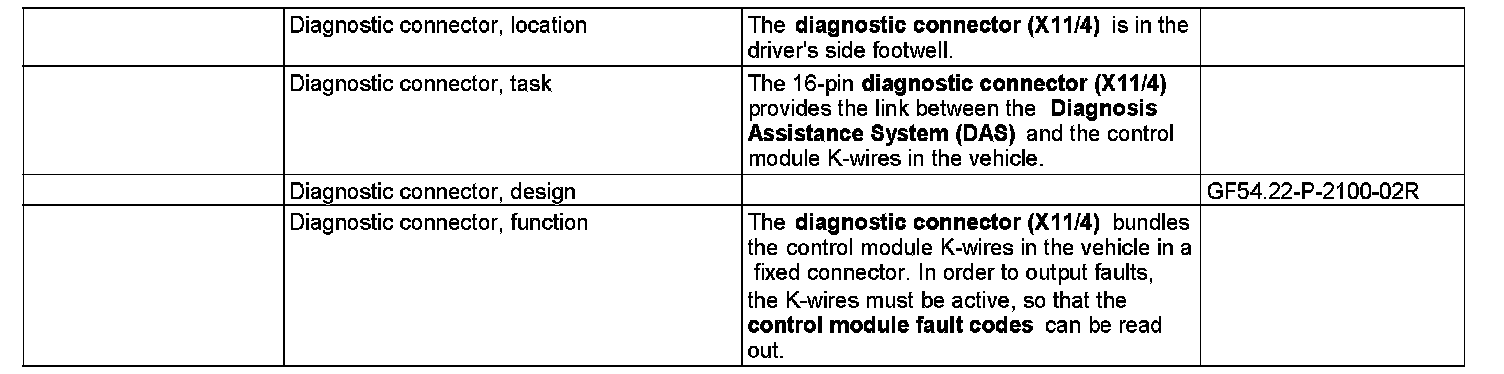

GF54.22-P-2100R Diagnostic Connector, Location/Task/Design/Function
MODEL 230 up to Model Year 8

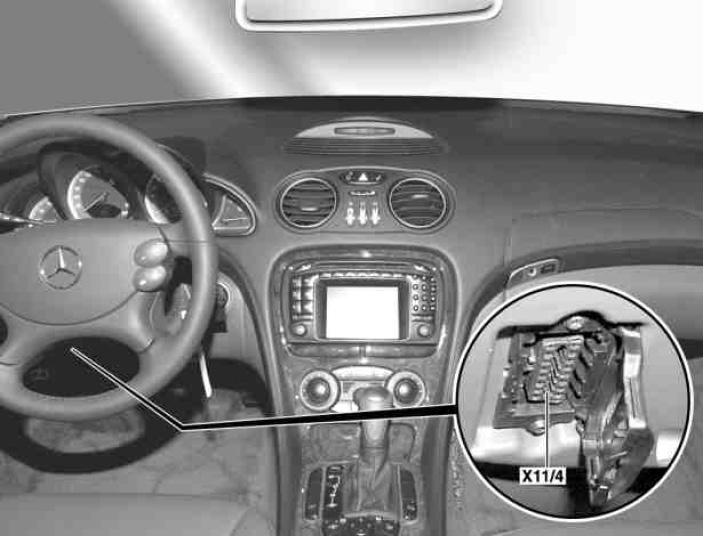

X11/4 Data link connector
