AR82.10-P-4730RBS Remove/Install Lamp Unit



AR82.10-P-4730RBS Remove/Install Lamp Unit
- with CODE (P99) Special model "AMG Black Series"

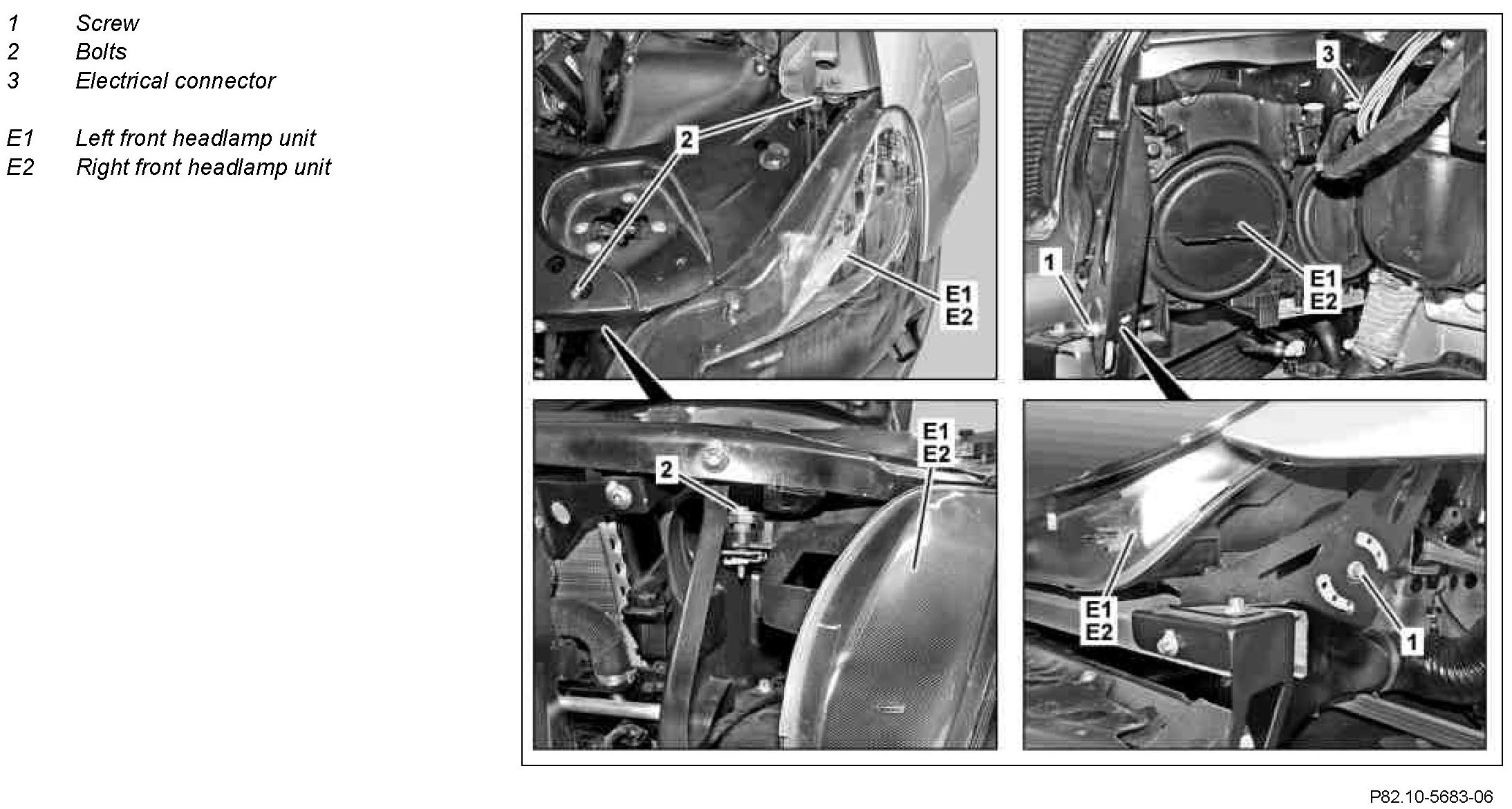

Component Identification:

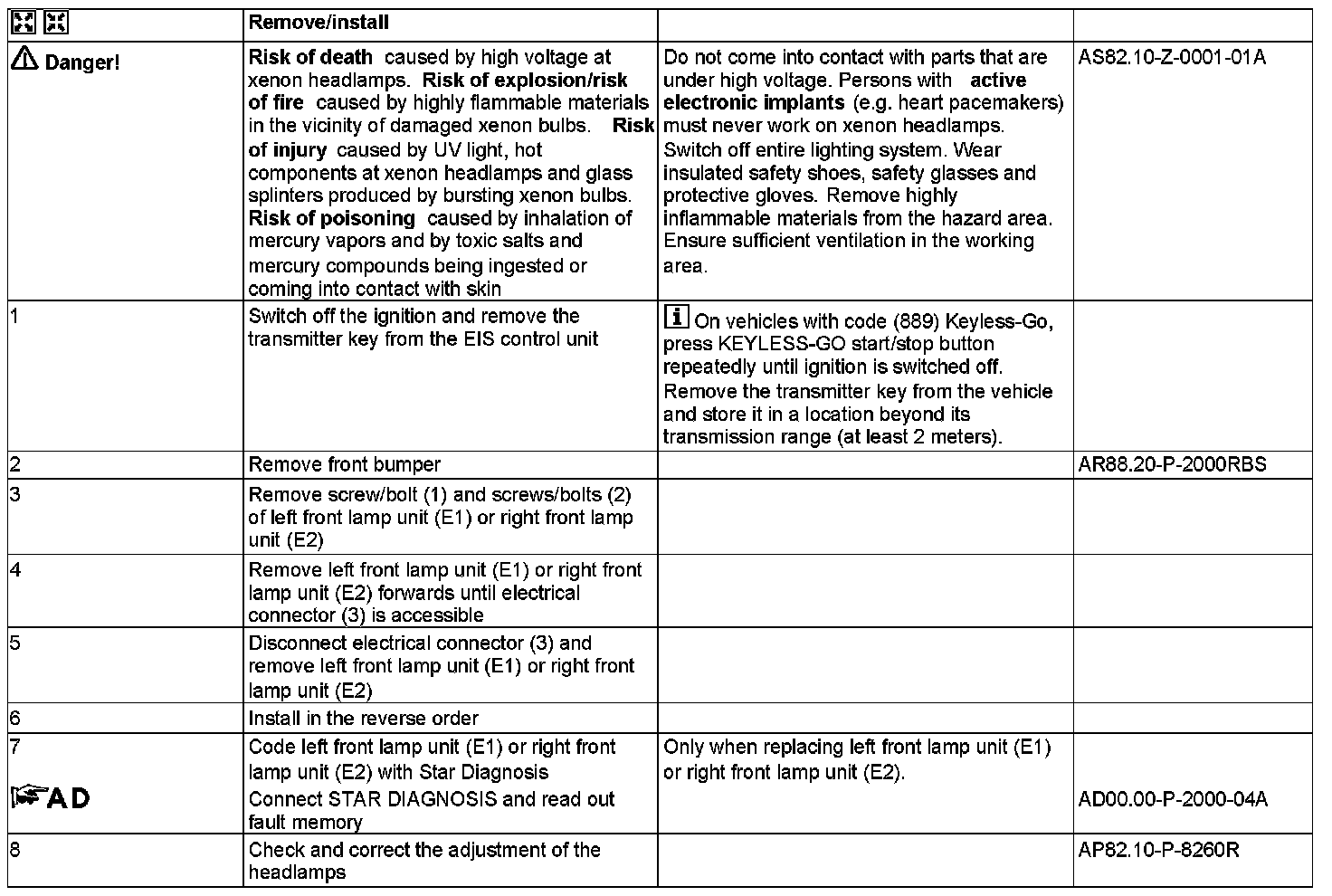

Steps 1 - 8:
