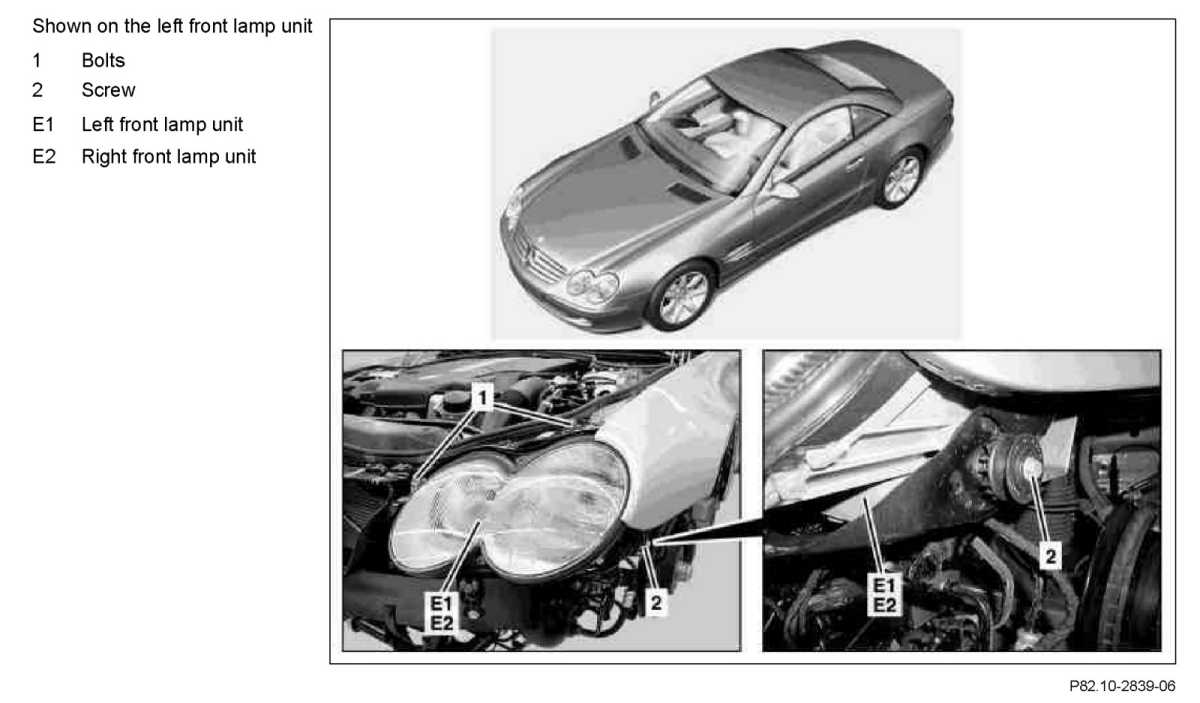

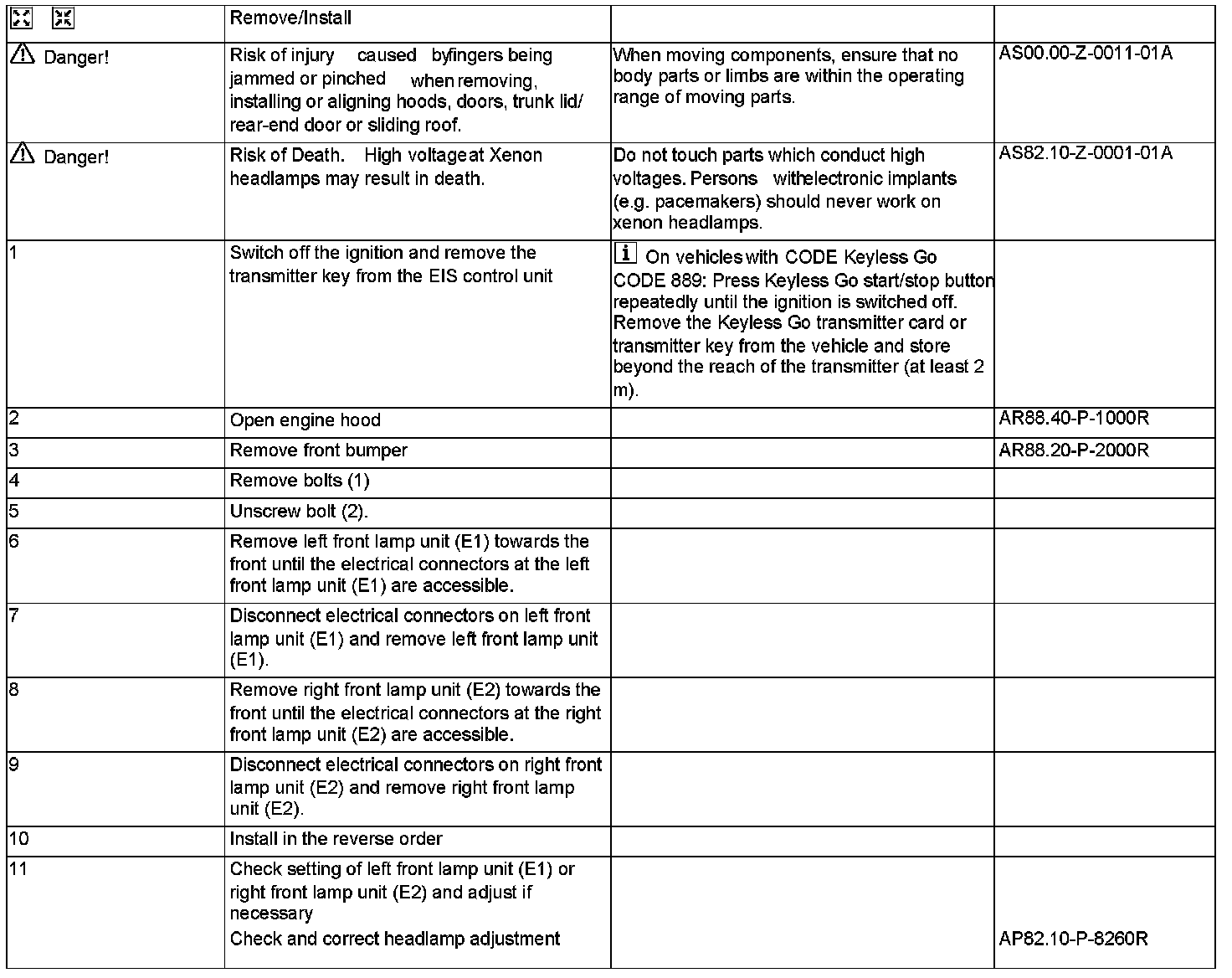

AR82.10-P-4730R Remove/Install Lamp Unit
AR82.10-P-4730R Remove/Install Lamp Unit
AR82.10-P-4730R Remove/Install Lamp Unit
- except CODE (P99) "AMG Black Series" special model
