AR49.10-P-7000R Remove/Install Complete Exhaust System



AR49.10-P-7000R Remove/install exhaust system complete

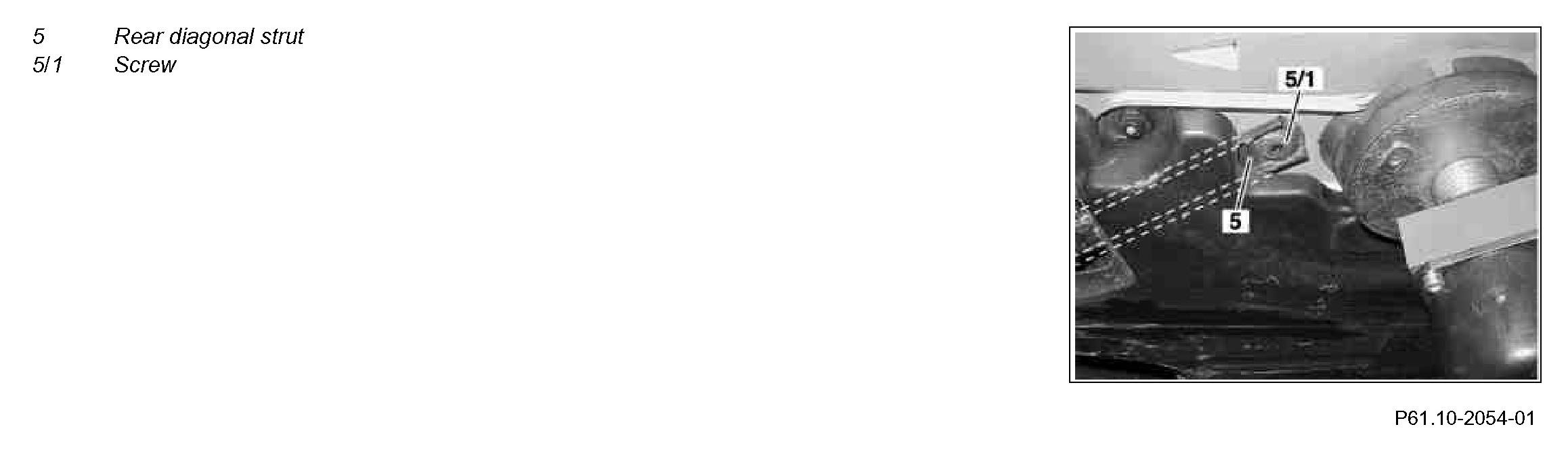

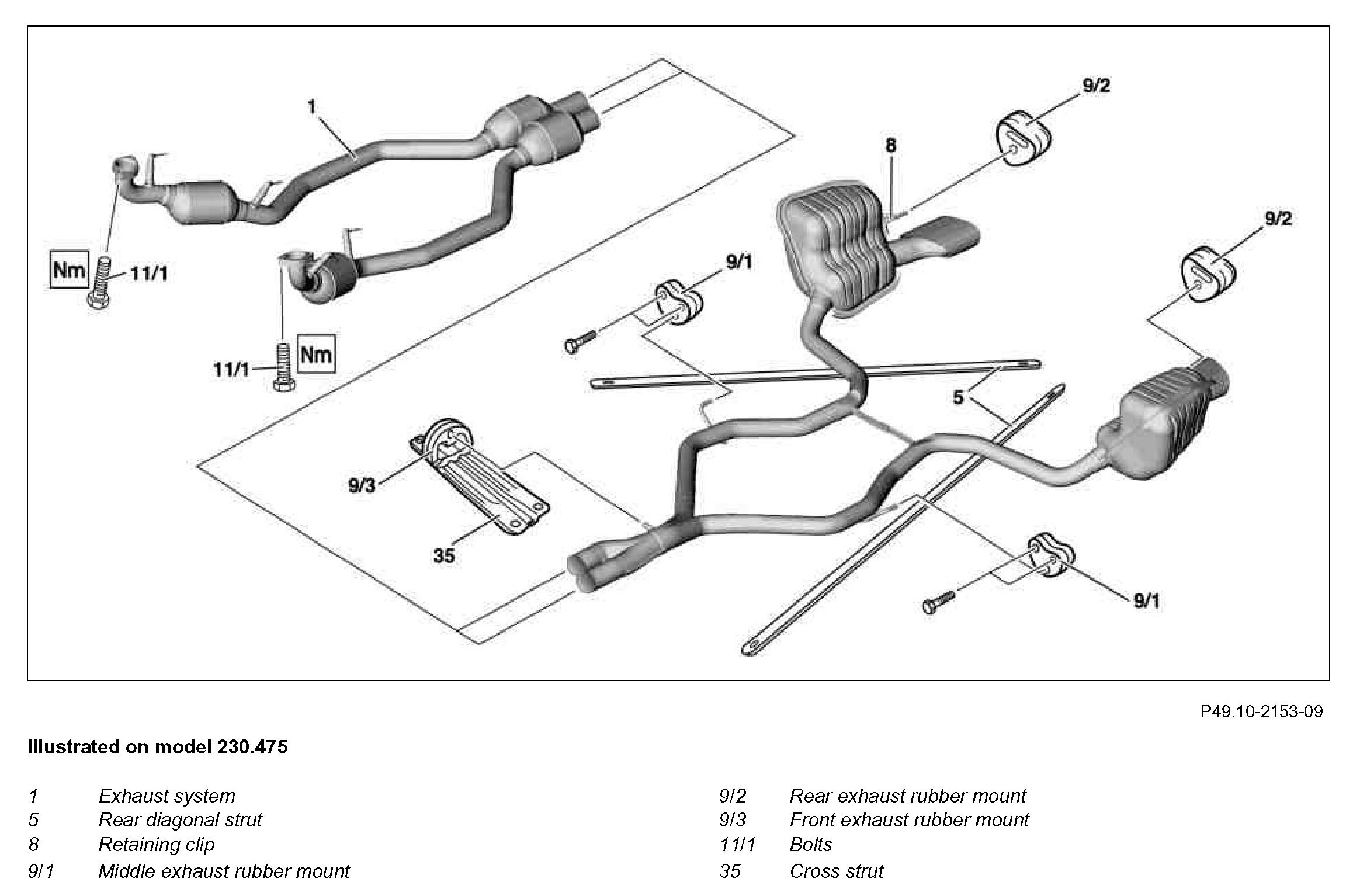

Component Identification:




Component Identification:

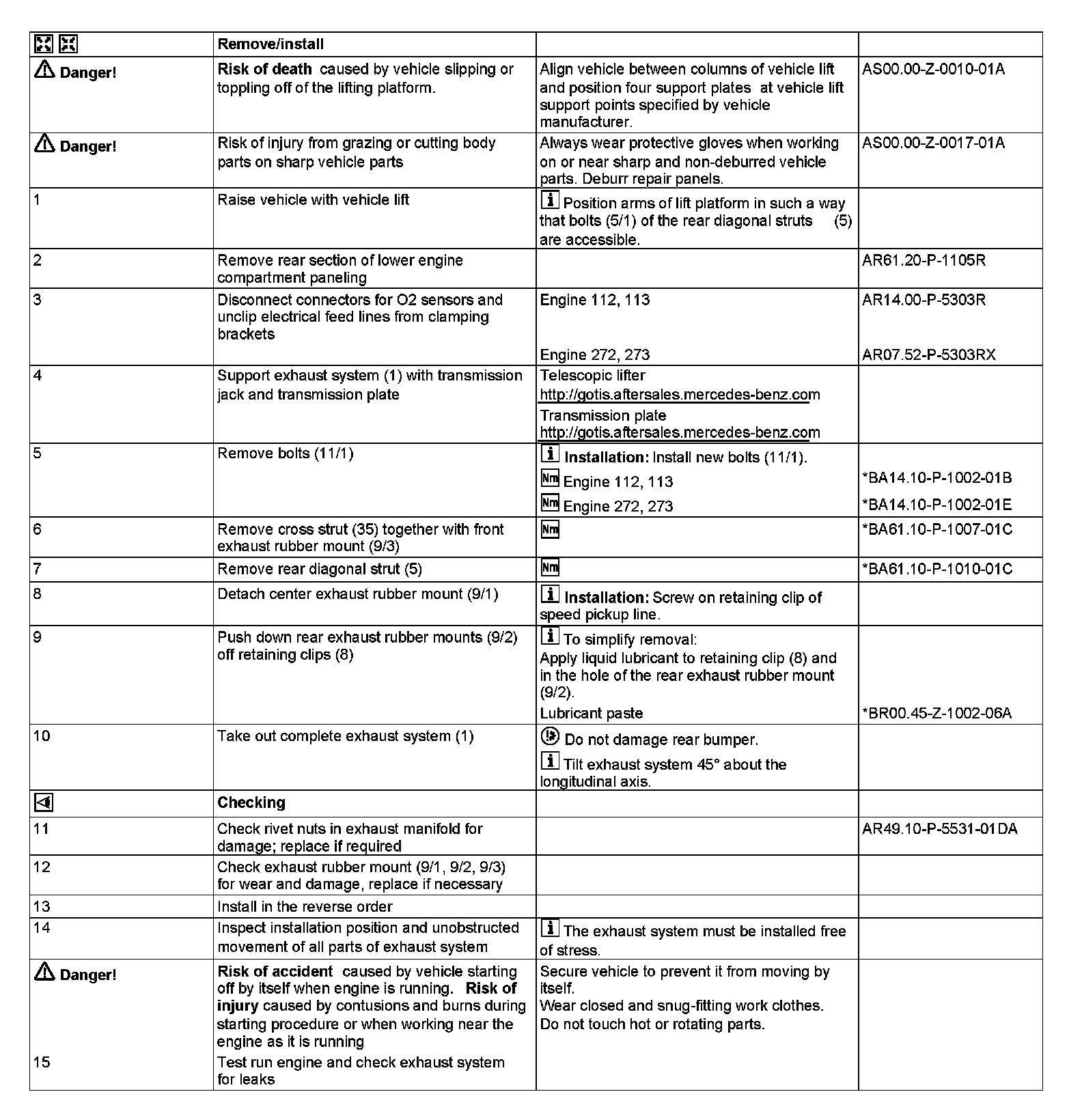

Steps 1-15:

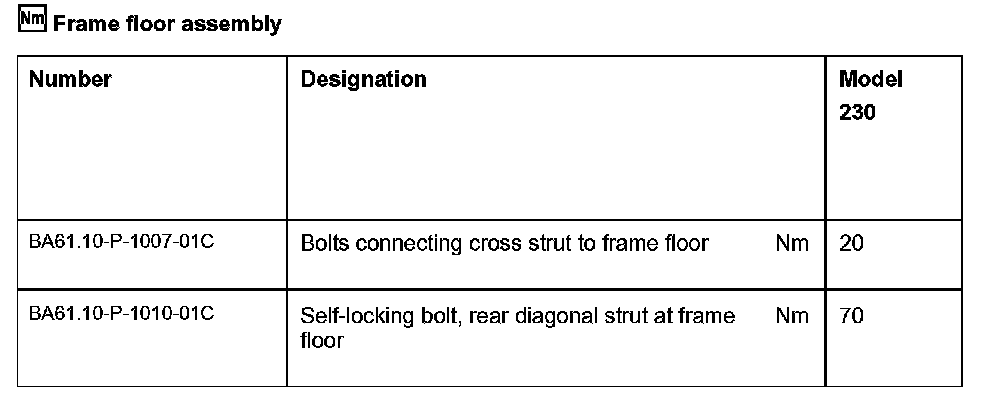

Frame floor assembly:

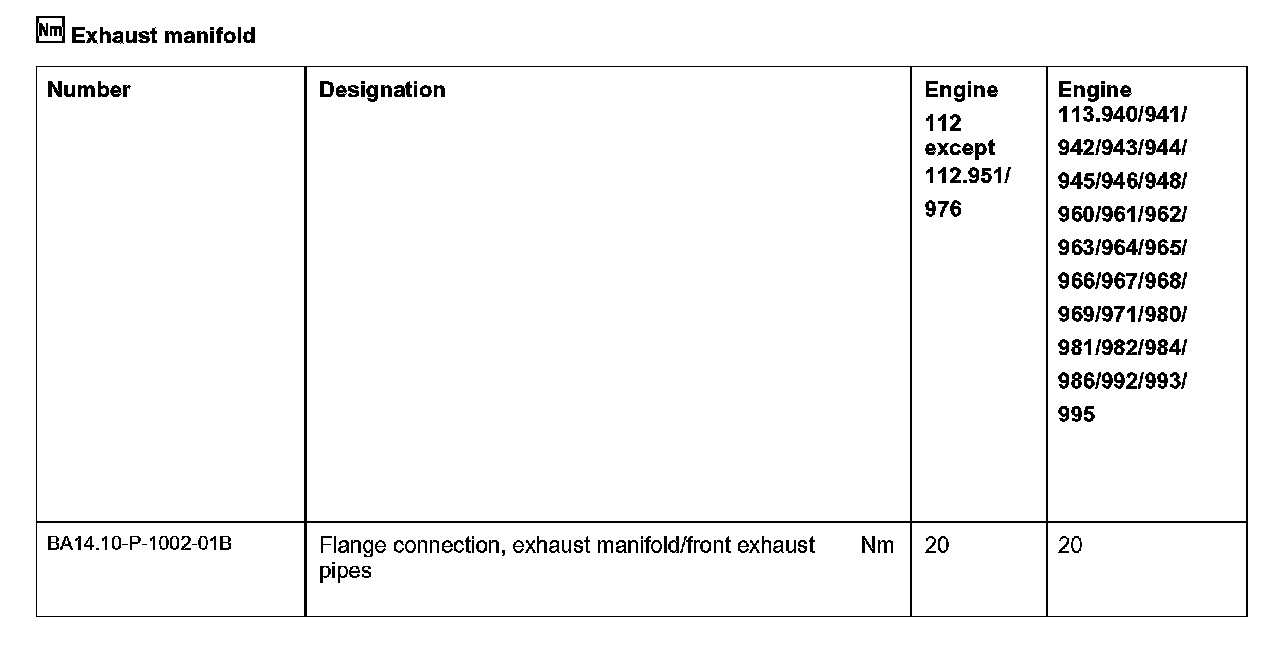

Exhaust manifold:

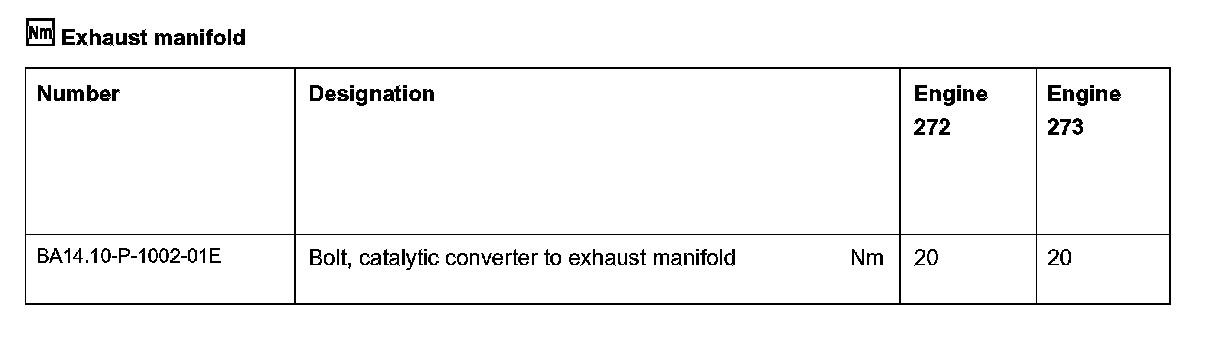

Exhaust manifold:

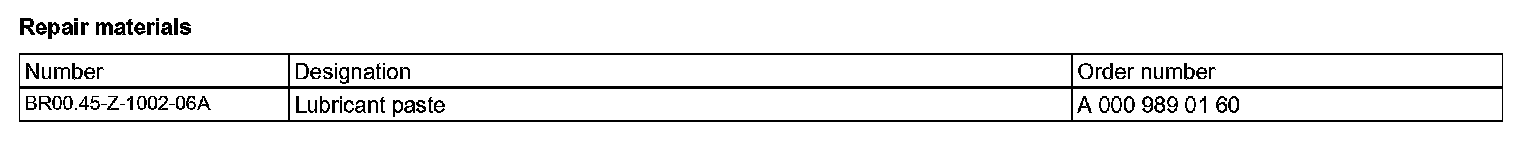

Repair materials:
