Function Diagrams

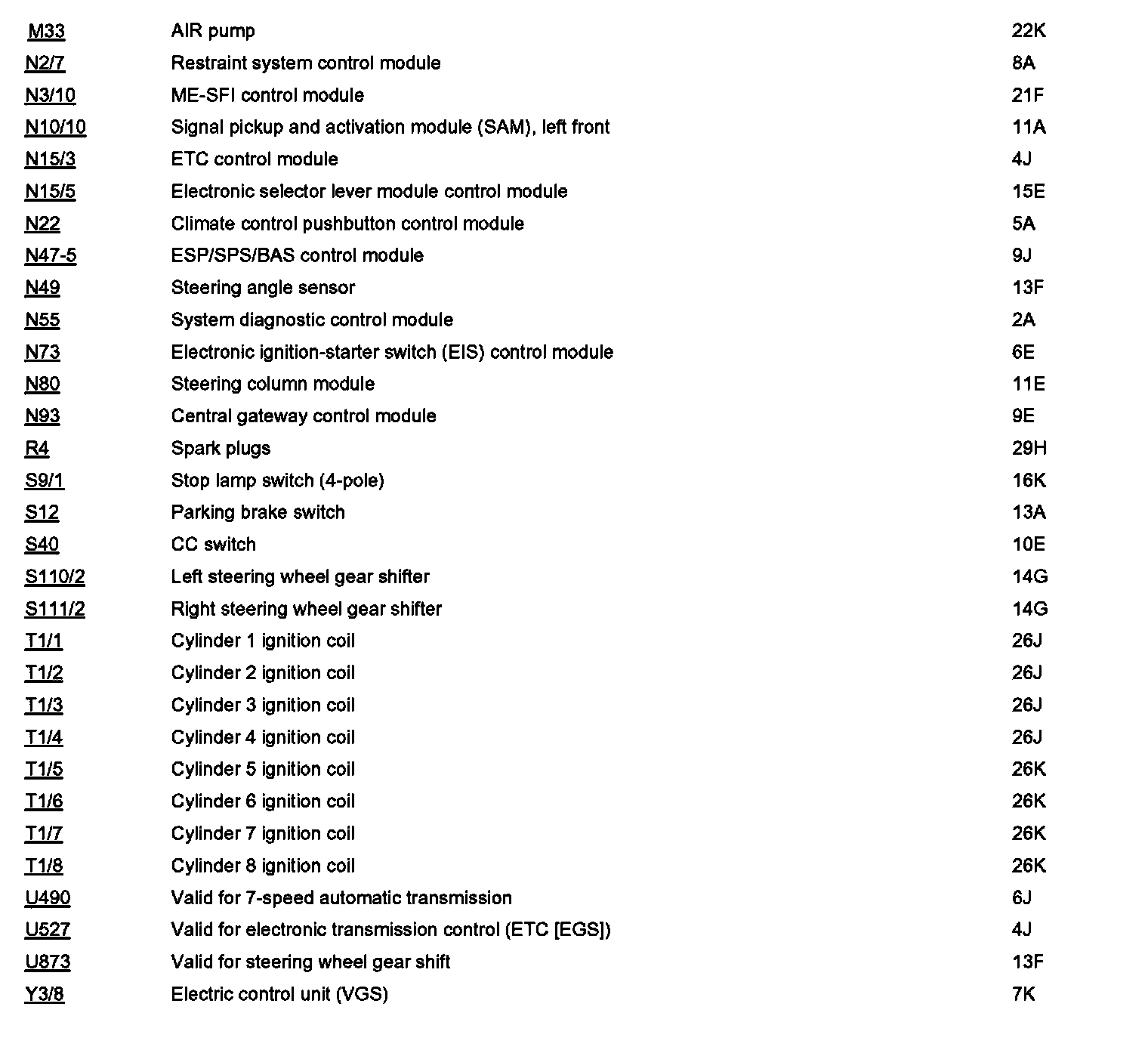

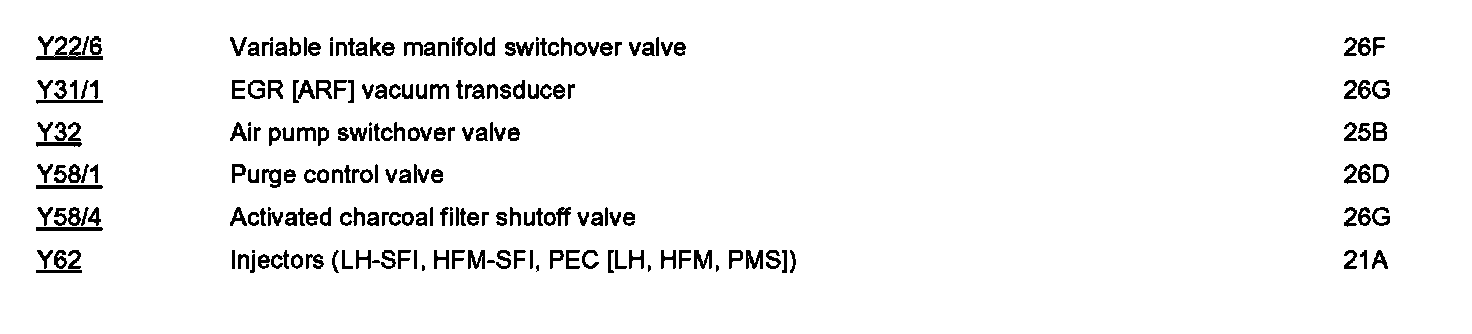

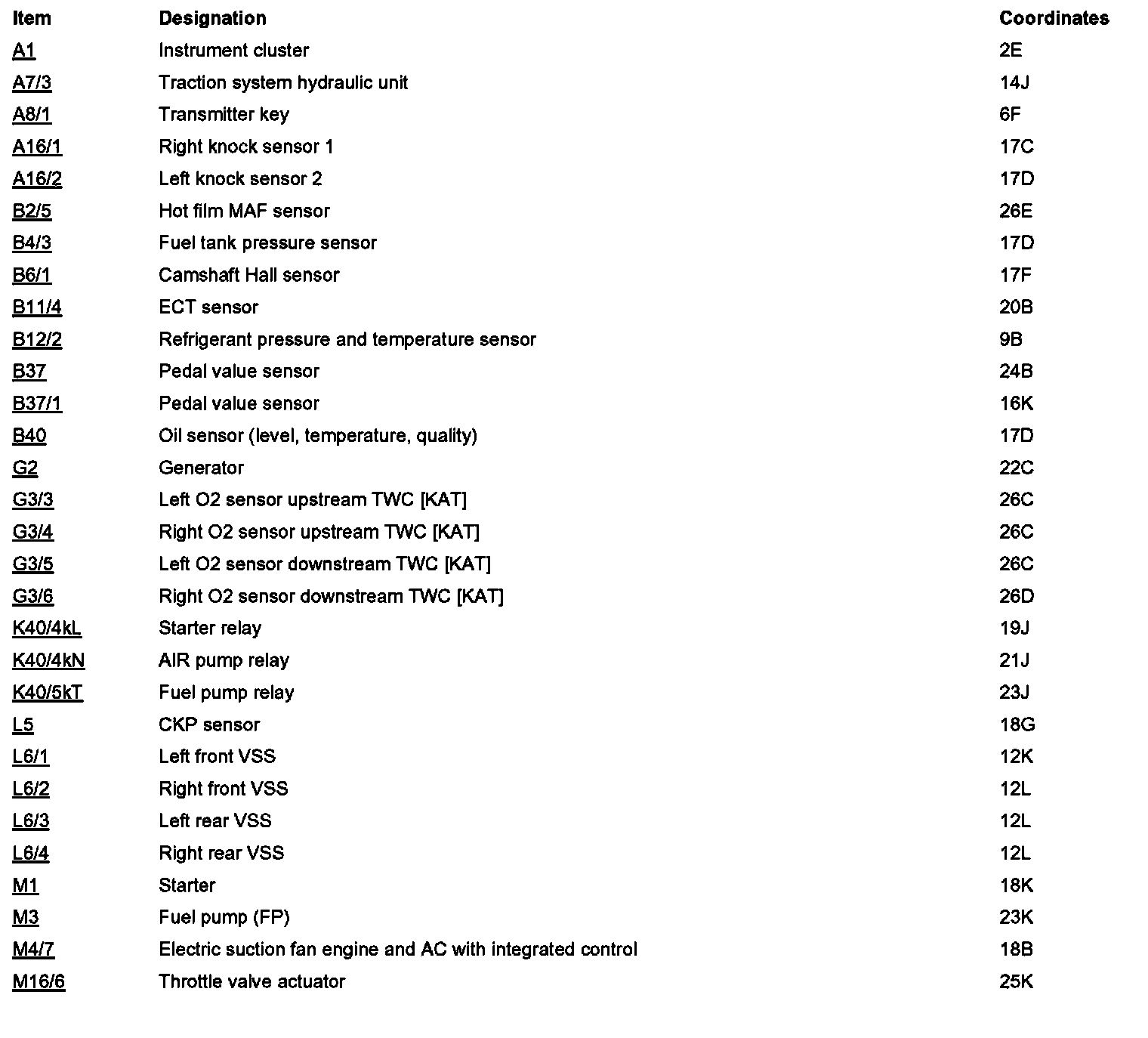

PE07.61-U-2050KA Function Diagram of Electrical System For ME Engine Control
- 113.963 up to 02/28/06
- ME 2.9























Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
