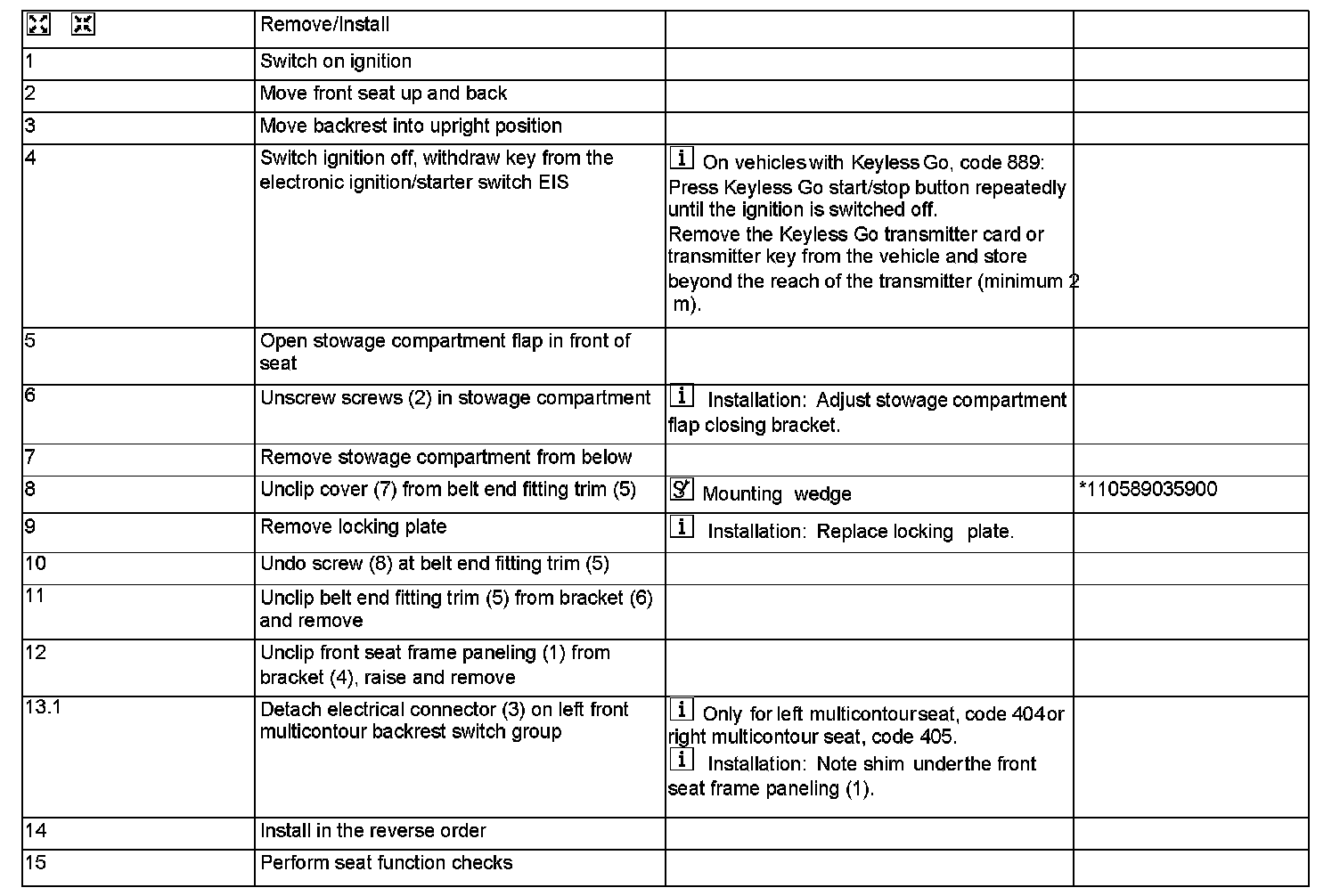

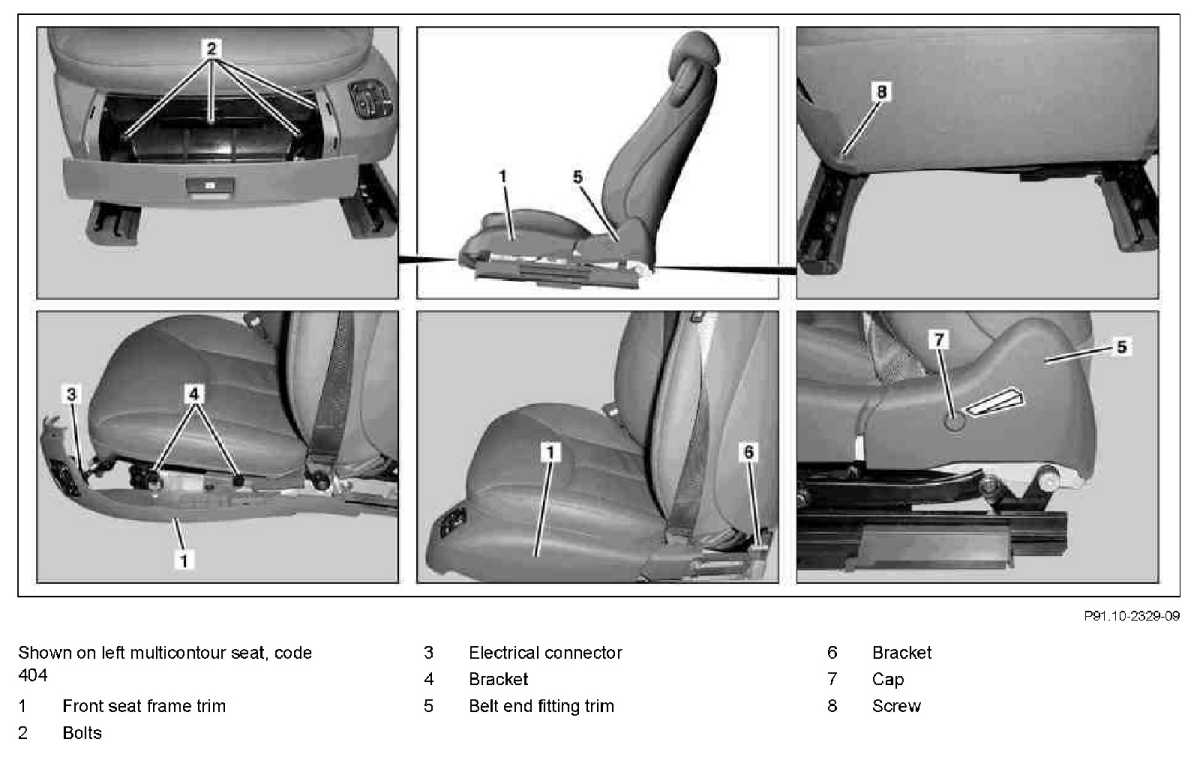

AR91.10-P-1200R Remove/Install Front Seat Frame Trim
AR91.10-P-1200R Remove/Install Front Seat Frame Trim
AR91.10-P-1200R Remove/Install Front Seat
Frame
Trim
