AN77.50-P-1000R Retrofitting Roof Rack Mounting

AN77.50-P-1000R Retrofitting Roof Rack Mounting
MODEL 230.456 /467 /471 /475 /476 /477

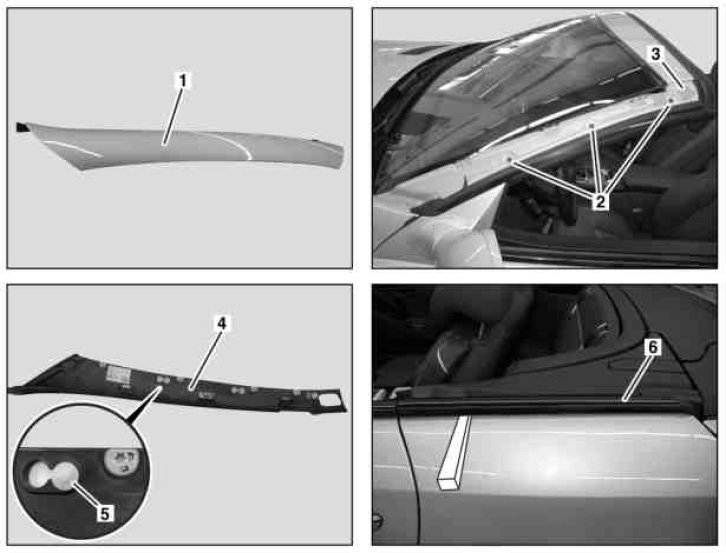

1 Outer A-pillar paneling
2 Retaining clip
3 Adhesive pad
4 Terminal strip
5 Clip
6 Trim strip





4 Terminal strip

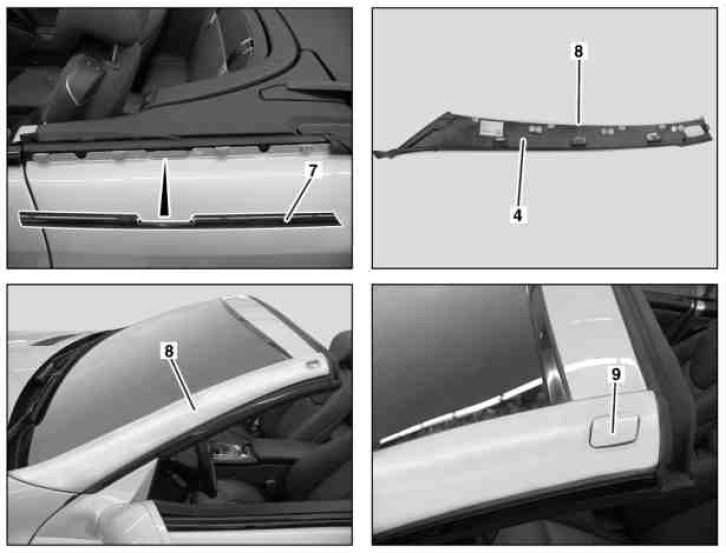

7 Trim strip
8 Outer A-pillar paneling
9 Cover














110 589 03 59 00
Mounting wedge
