AR77.50-P-3000-02R Secure Vario Roof Load Assist Position

AR77.50-P-3000-02R Secure Vario Roof Load Assist Position
- except CODE (P99) Special model "AMG Black Series"

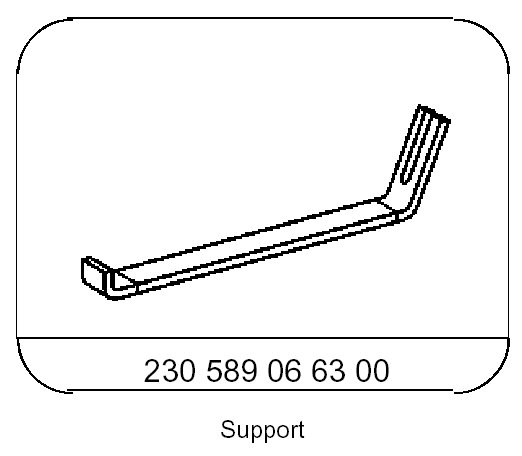

Special Tool:

The Vario roof is in the load assist position.

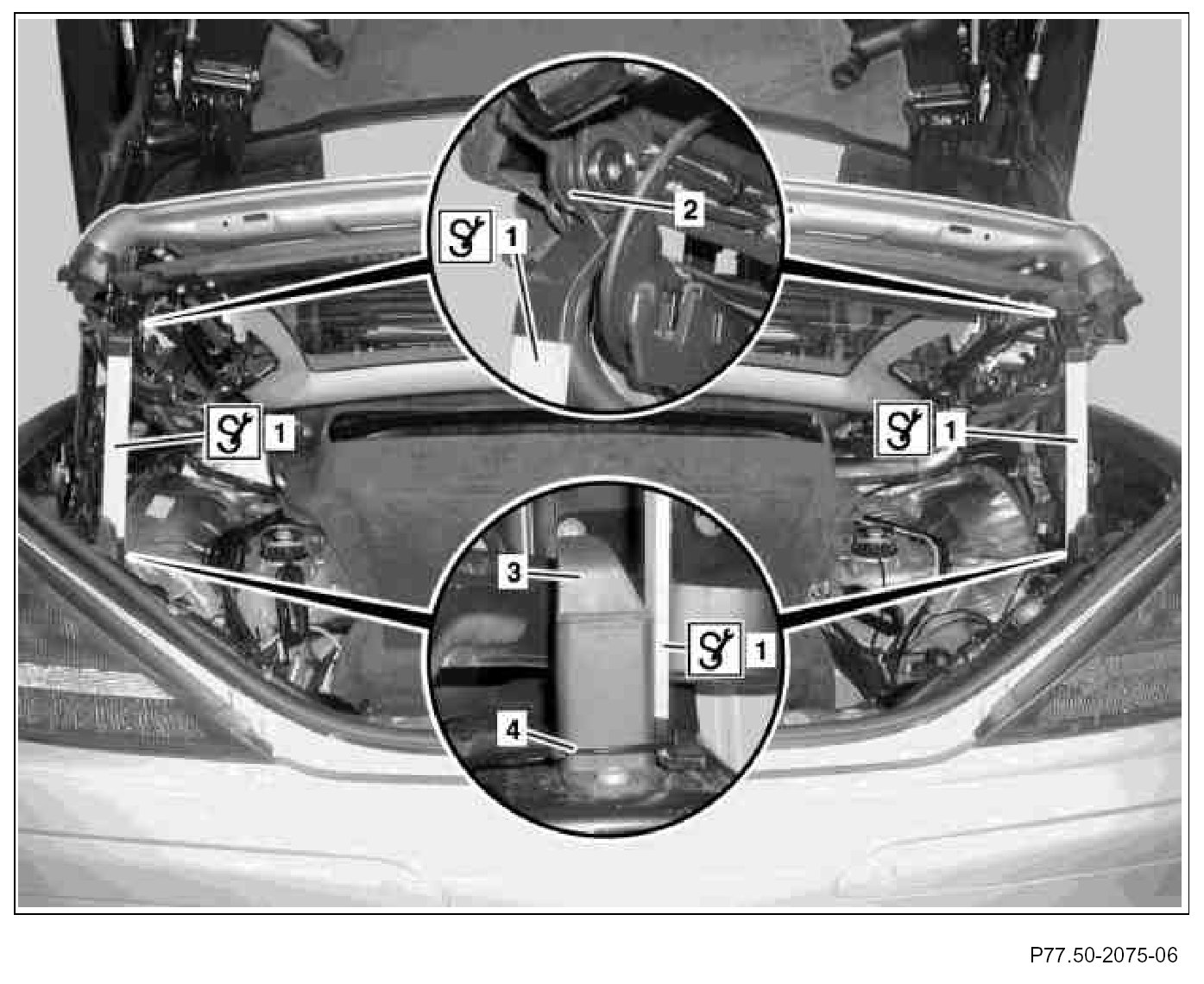

1. Install supports (1) on both hinges (2) and on left and right Y-fastener (3).
Always install both supports (1) on Y-fasteners (3) to prevent damaging Vario roof.

2. Secure both supports (1) against slipping off with cable tie (4).
