AR77.50-P-4200-02R Sealing Front Side Seal on Vario Roof In Addition



AR77.50-P-4200-02R Sealing Front Side Seal On Vario Roof In Addition
- except CODE (P99) Special model "AMG Black Series"

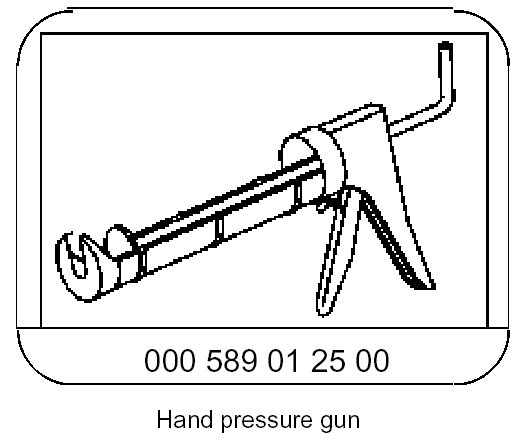

Special Tool:




Repair Materials:

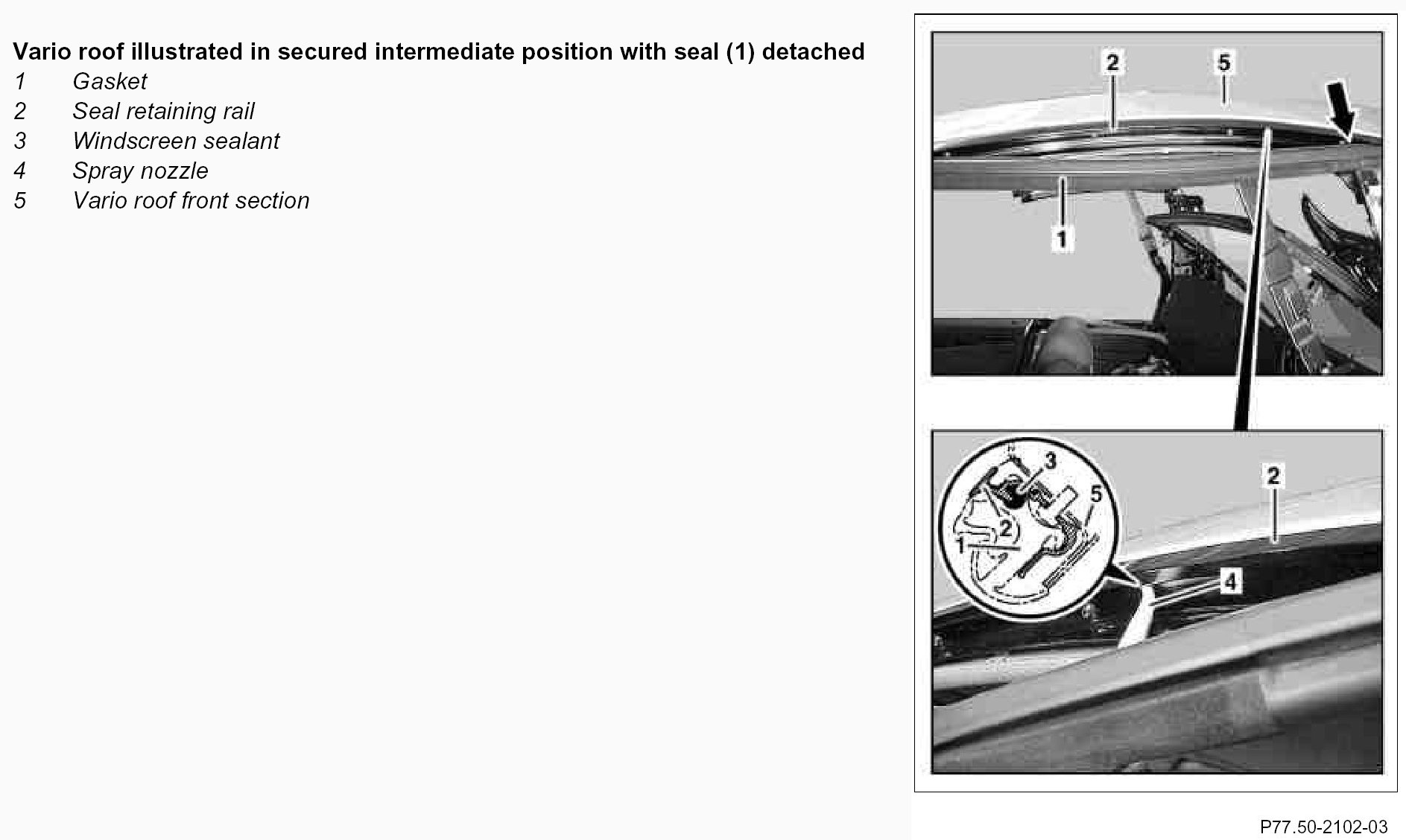

1. Spray window sealant (3) into seal retaining rail (2) as far as possible starting at rear corner (arrow).

Length of sealant bead approx. 10 cm.


Component Identification:
