AR35.10-P-0020-01RR Lower Rear Axle

AR35.10-P-0020-01RR Lower rear axle
- with CODE (P99) Special model "AMG Black Series"

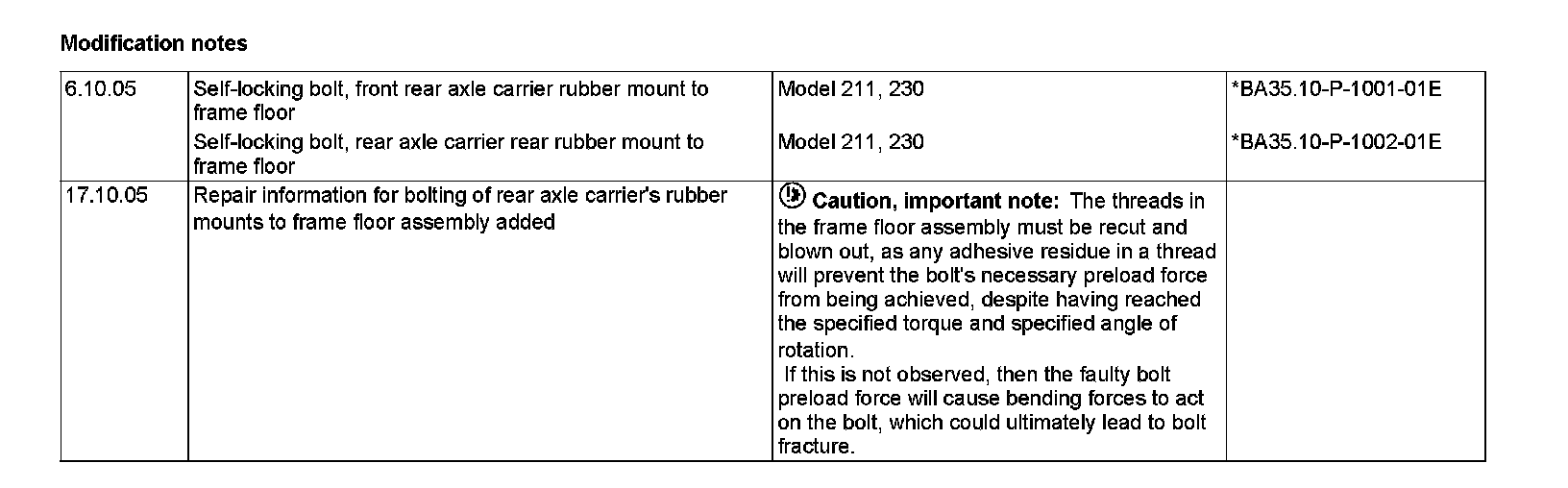

Modification notes:

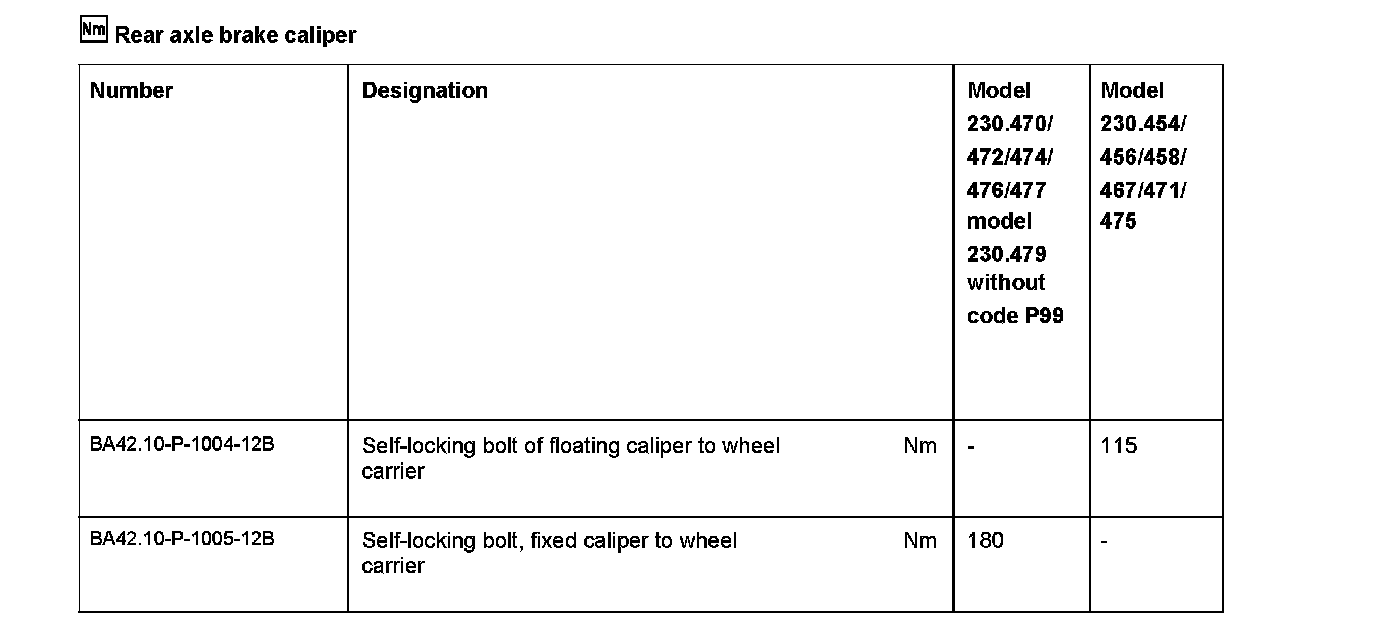

Rear axle brake caliper:

Suspension struts:

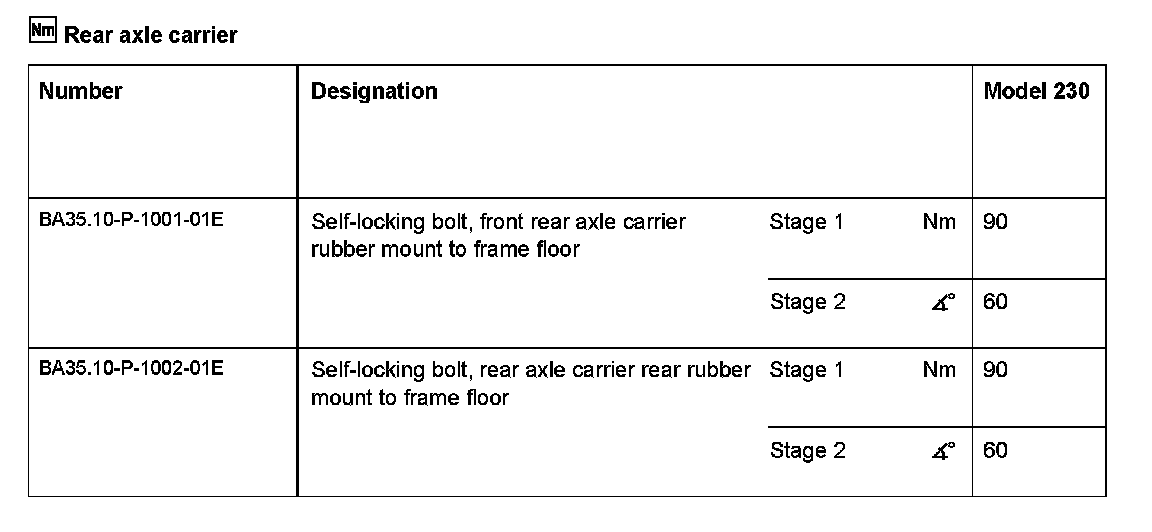

Rear axle carrier:

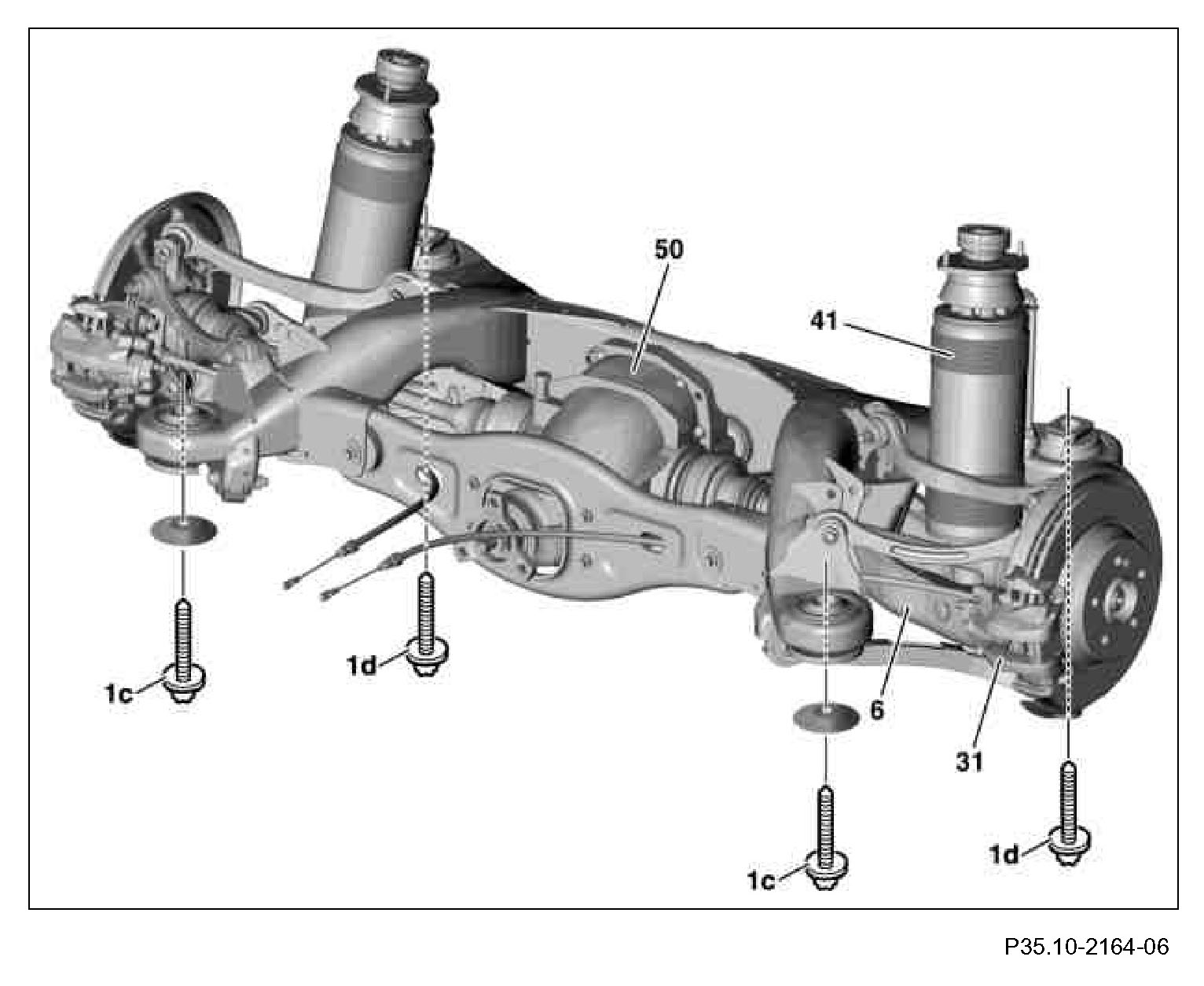

Component Identification:

1 Remove brake caliper (31) and, with brake lines attached, hook up to one side.
2 Remove suspension struts (41) from spring control arms (6).
3 Support rear axle center assembly (50) using transmission jack and transmission platform, and lash securely.
4 Remove bolts (1c, 1d).

Installation: Recut thread in frame floor assembly and blow out. Replace bolts.

5 Lower rear axle no more than 50 mm.

Do not apply tension to brake cables and lines.
