AR35.10-P-0040-02R Remove/Install Front Rubber Mount In Rear Axle Mount

AR35.10-P-0040-02R Remove/install front rubber mount in rear axle mount
- except CODE (P99) Special model "AMG Black Series"

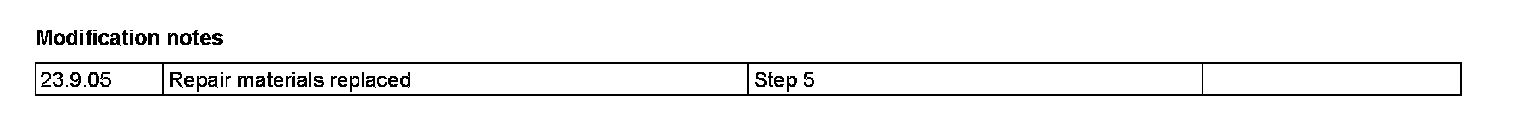

Modification notes:

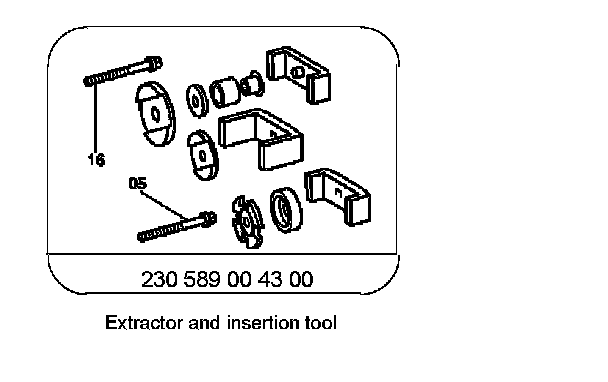

Special Tools:

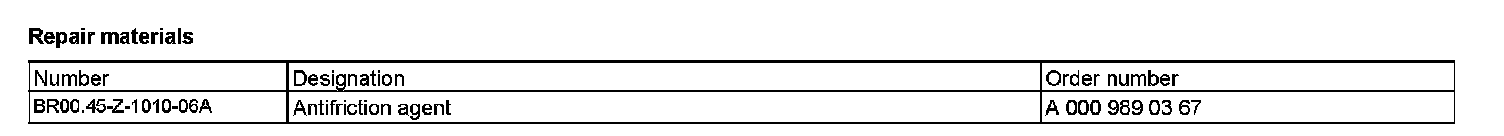

Repair materials:

Component Identification:

Removing
Always replace front rubber mounts in pairs.

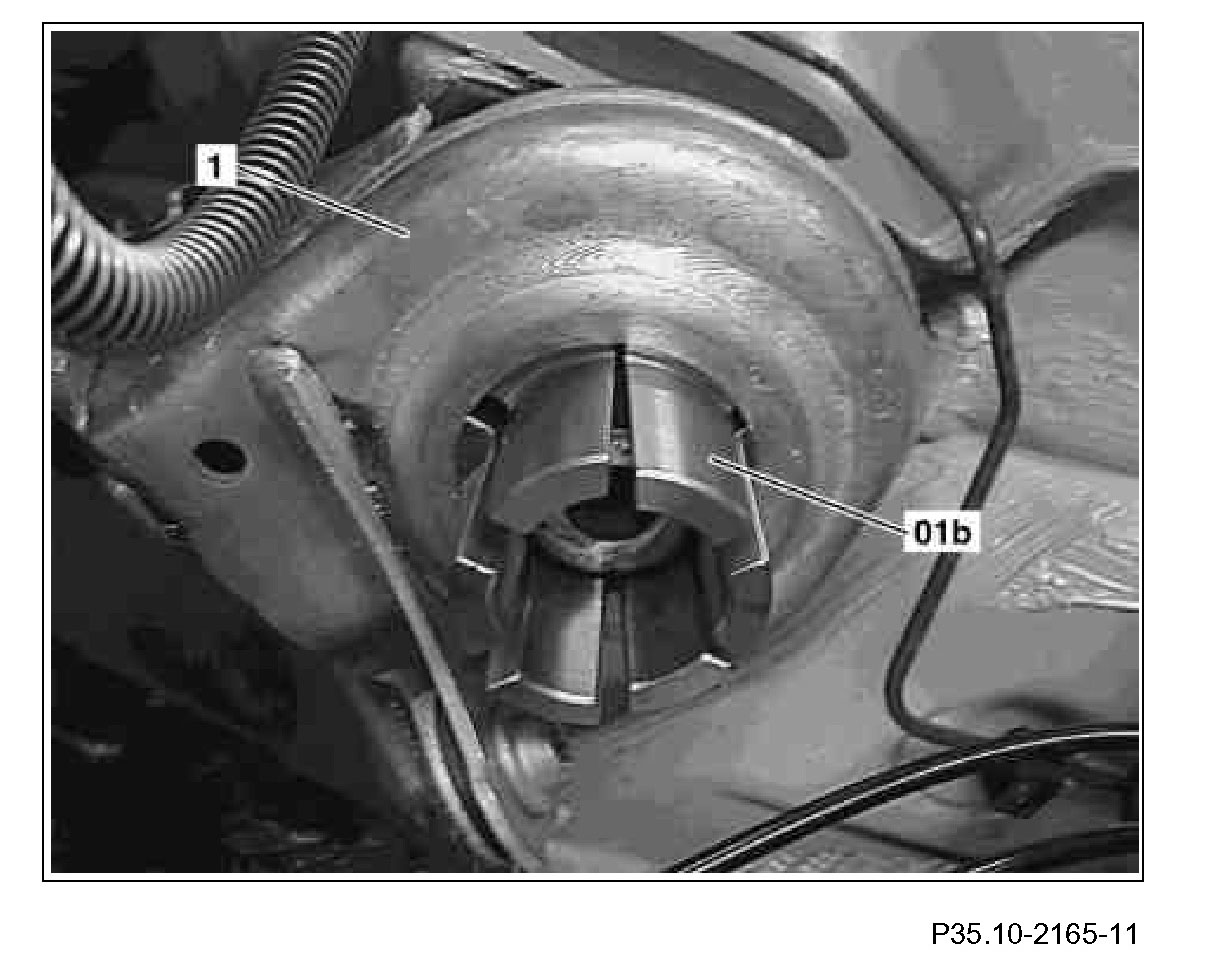

1 Insert thrust pieces (01b), parts 02, into gap between seat of rubber mount and rear axle carrier (1).

Component Identification:

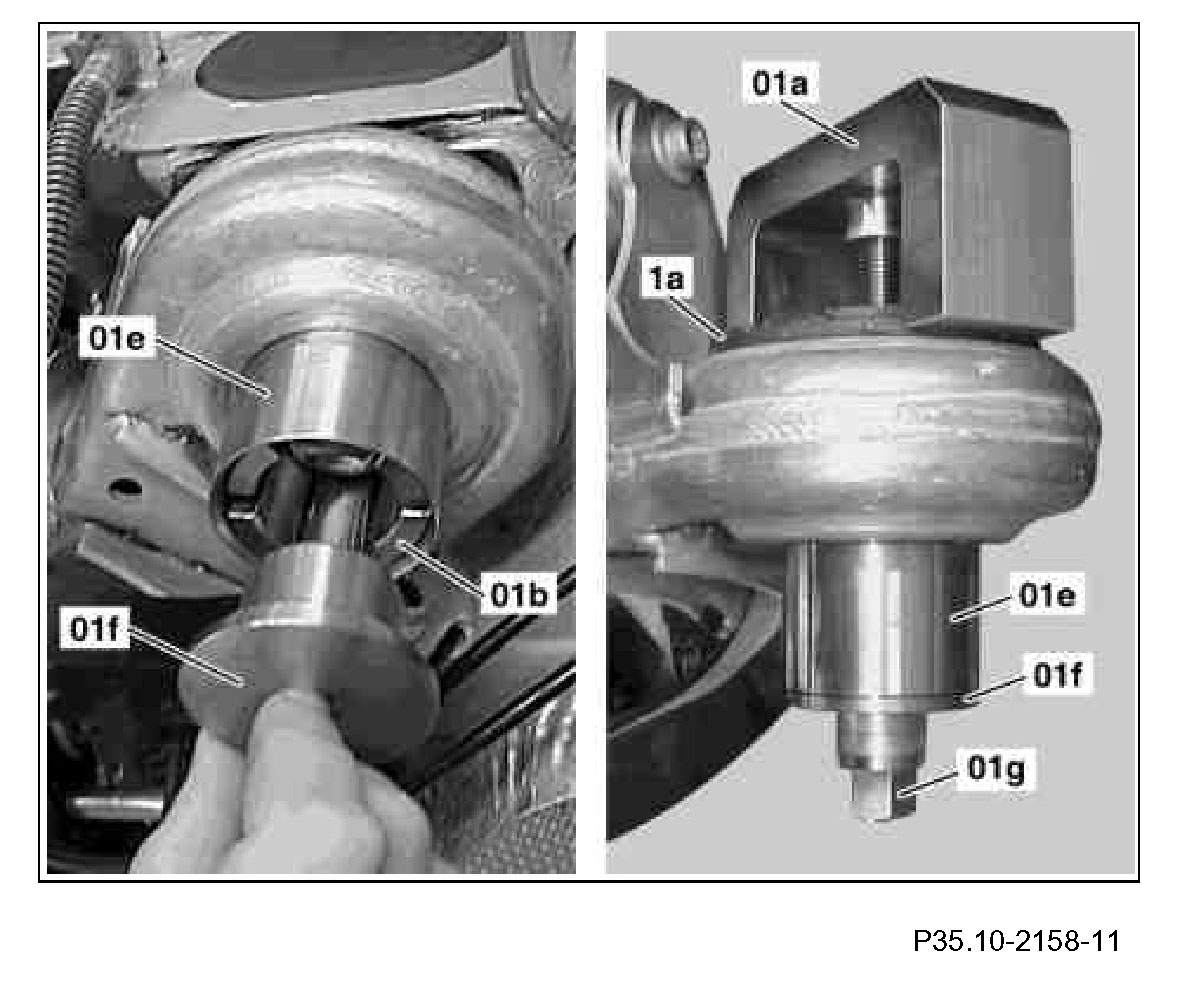

2 Push sleeve (01e), part 03, onto thrust pieces (01b) and insert thrust piece (01f), part 04.
3 Fit bracket (01a), part 01, on rear axle carrier.
4 Press the rubber bushing (1a) out of the rear axle carrier by screwing in the spindle (01g) part 05.

Component Identification:

Install

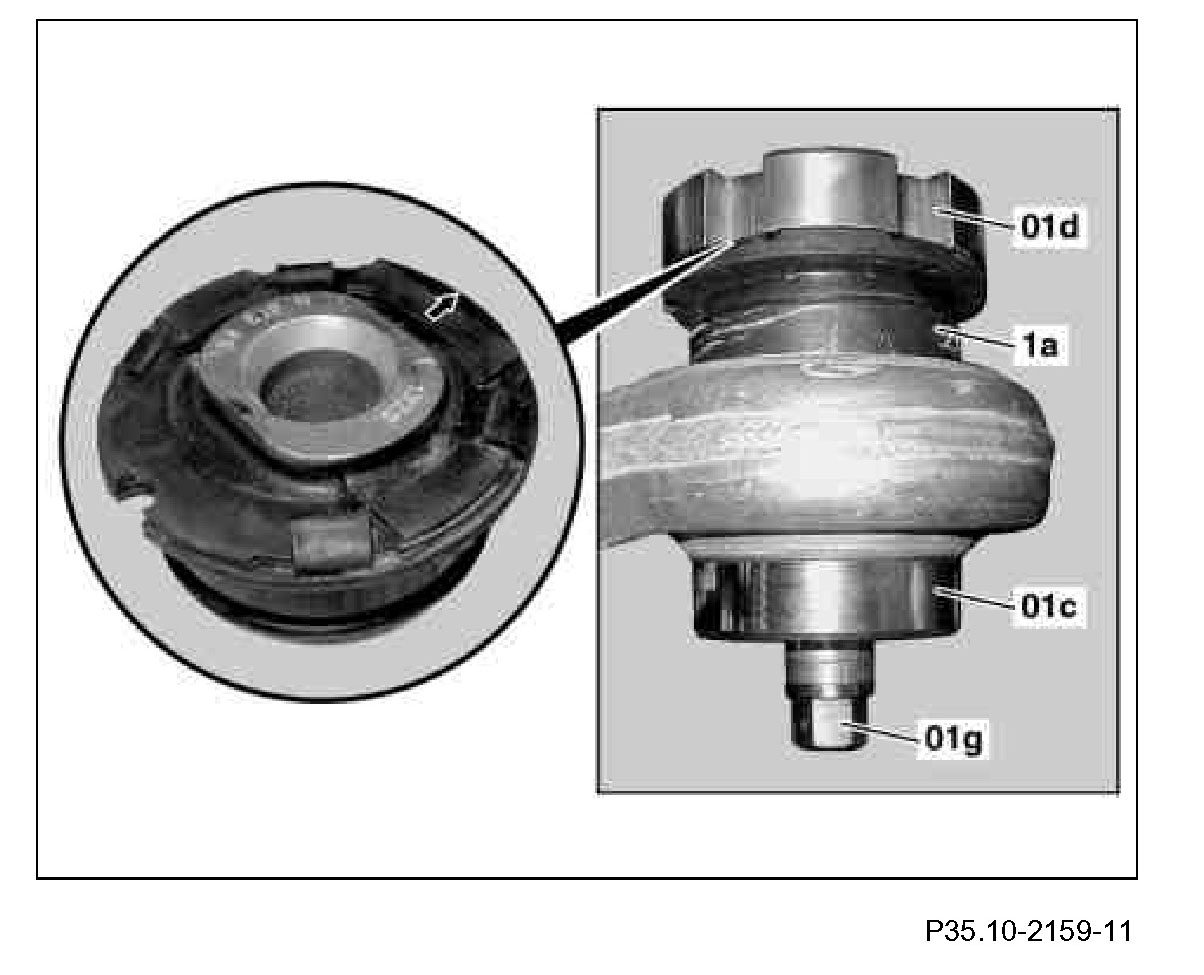

5 Rub the circumference of the rubber bushing (1a) with liquid lubricant and position on the rear axle carrier.

Observe correct installation position. The arrow on the top side of the rubber bushing (1a) must point towards the front of the vehicle.

6 Fit thrust piece (01d), part 11, on rubber mount (1a).

The raised sections of the rubber bushing (la) must seat in the cutouts of the thrust piece (01d).

7 Fit thrust piece (01c), part 10, on rear axle carrier.
8 Draw in the rubber bushing (1a) flush with the rear axle carrier by screwing in the spindle (01g) part 05.
