Trunk / Liftgate Latch: Service and Repair
AR88.50-P-5020R Remove/Install and Adjust Trunk Lid Lock and Locking Eye

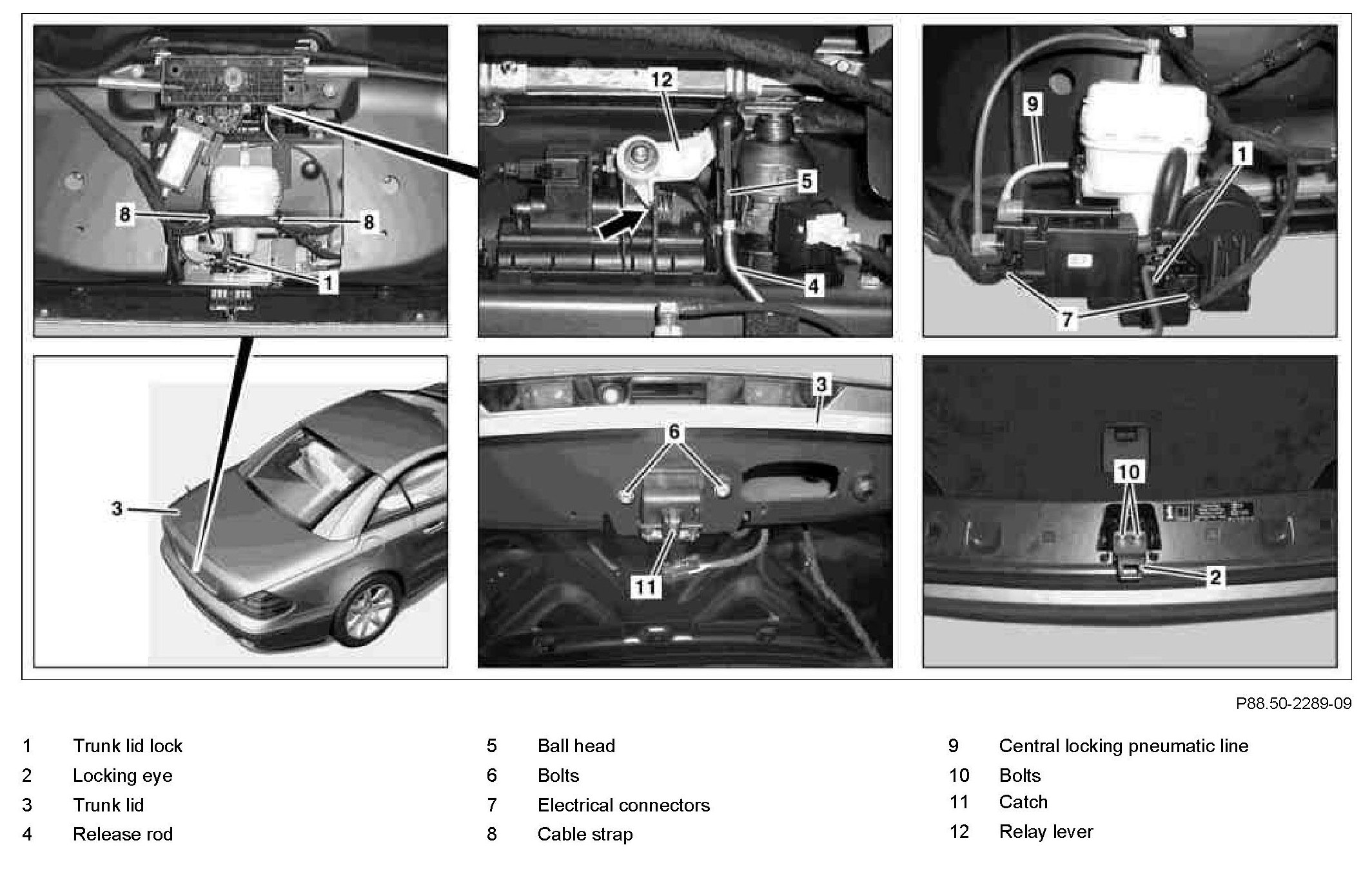

Component Identification:

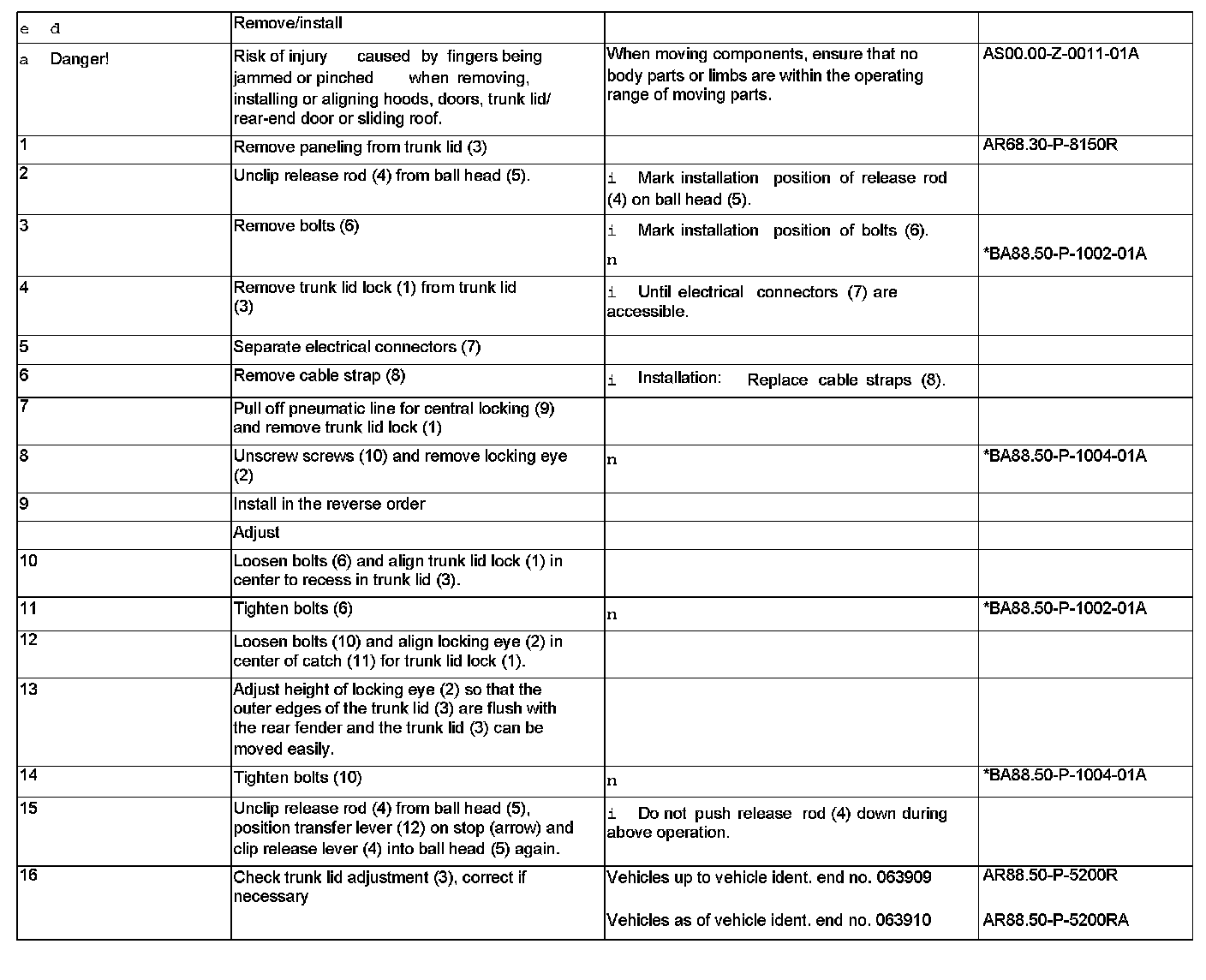

Step 1 - 16:

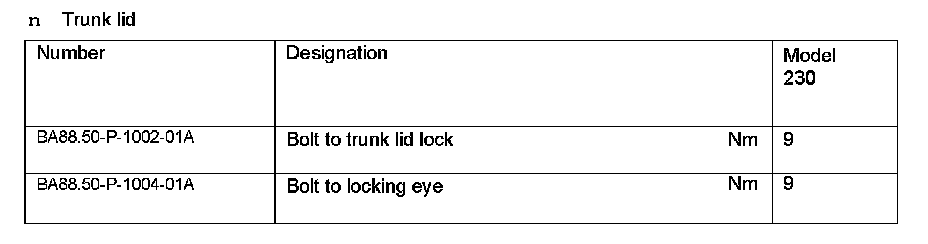

Trunk Lid:
