AR88.50-P-5100R Remove/Install Tubular Frame For Trunk Lid



AR88.50-P-5100R Remove/Install Tubular Frame For Trunk Lid

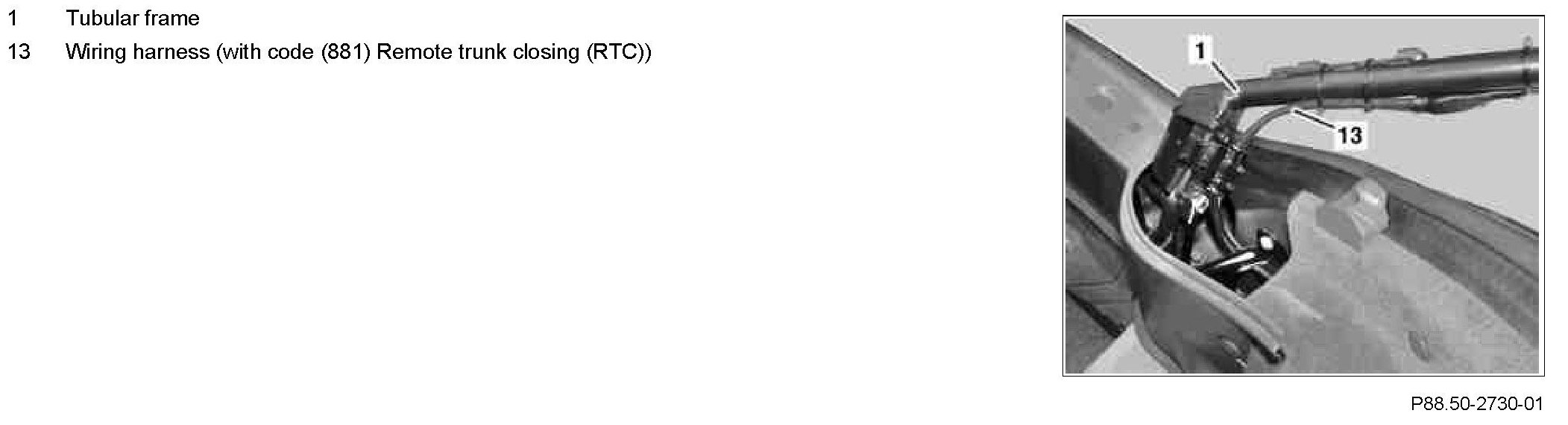

Component Identification:

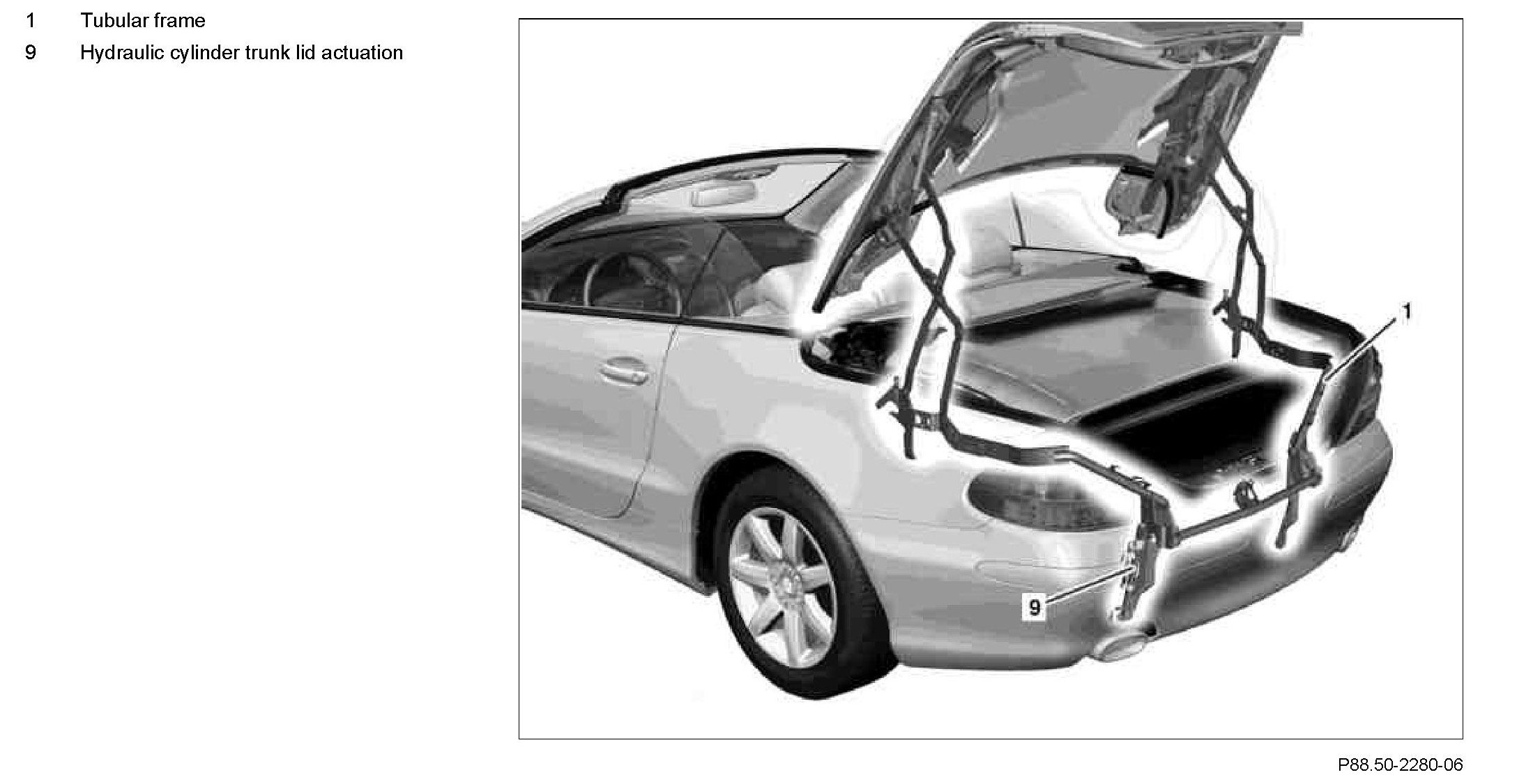

Component Identification:

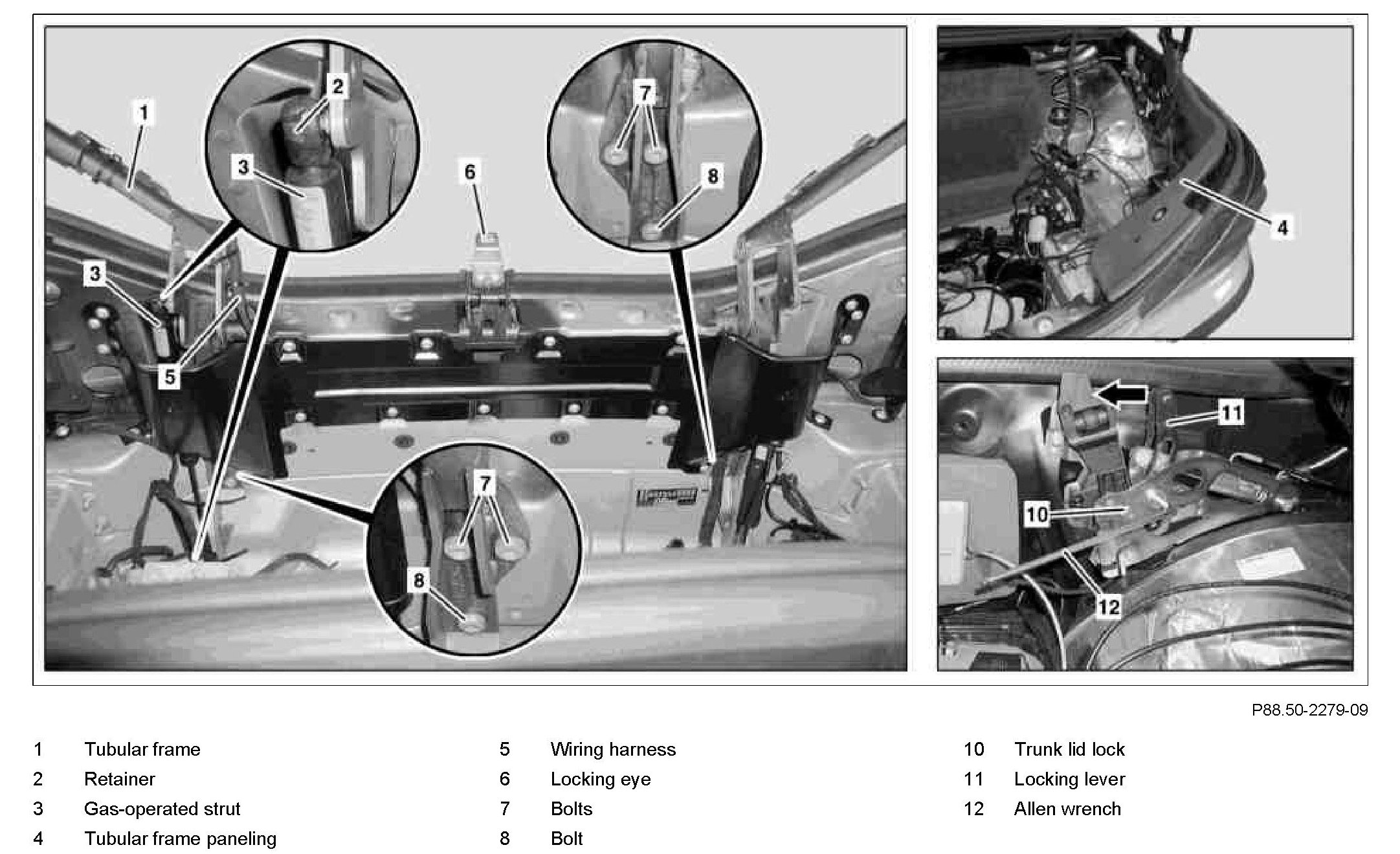

component Identification:

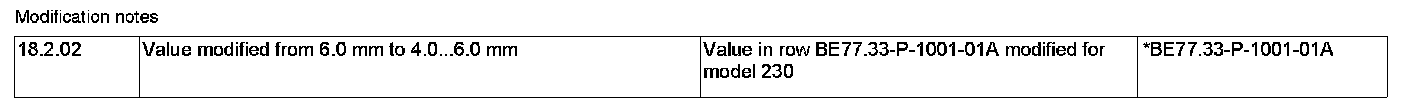

Modification Notes:

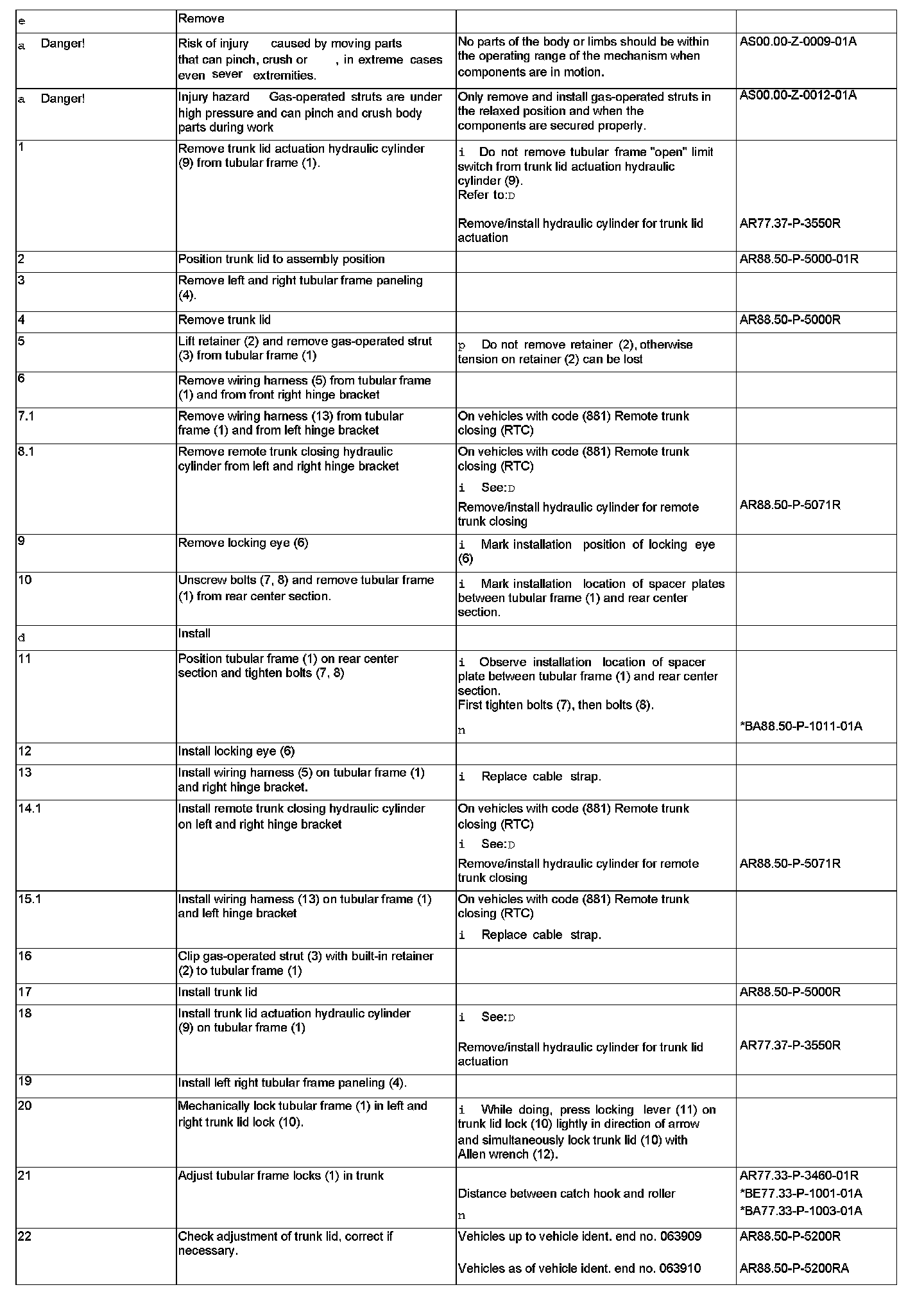

Step 1 - 22:

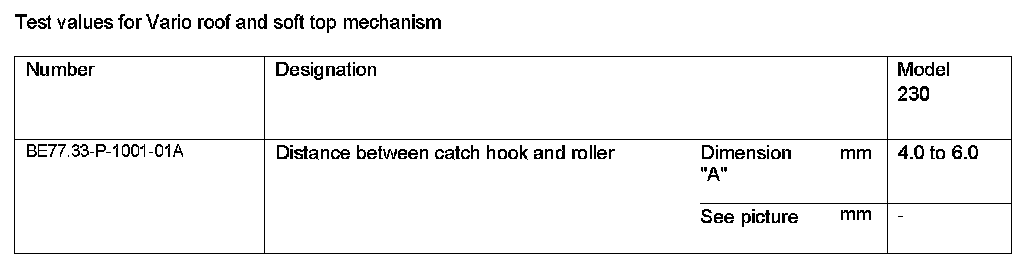

Test Values For Vario Roof And Soft Top Mechanism:

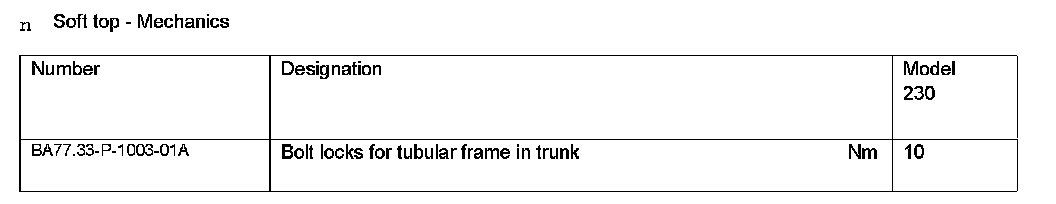

Soft Top - Mechanics:

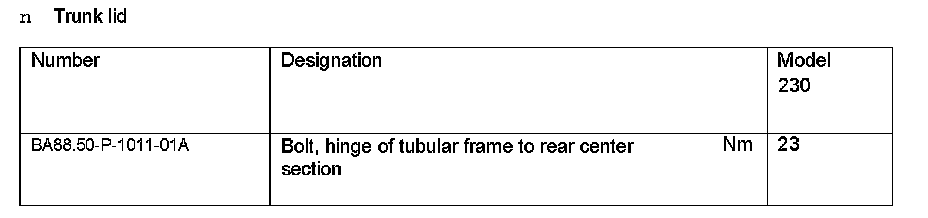

Trunk Lid:
