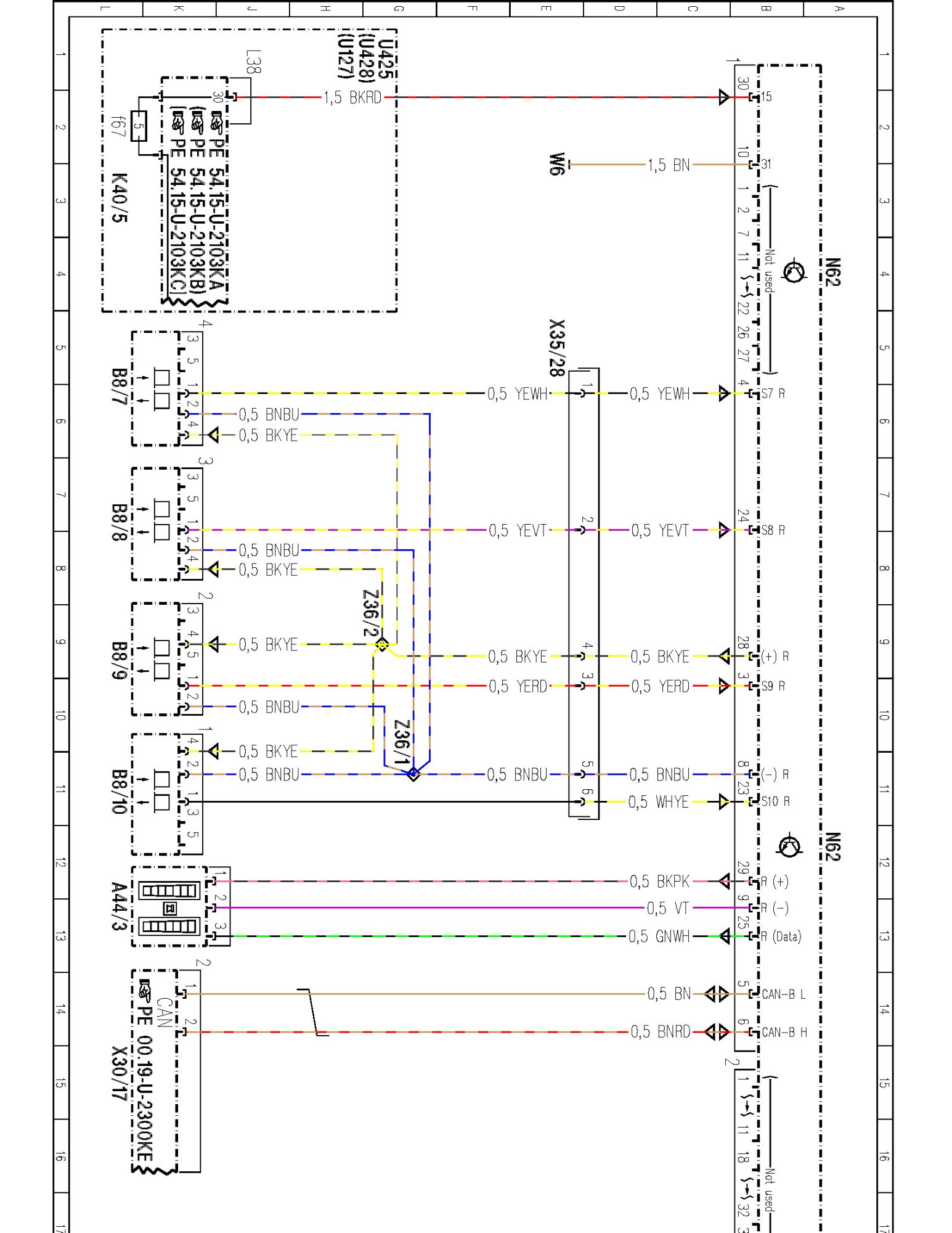

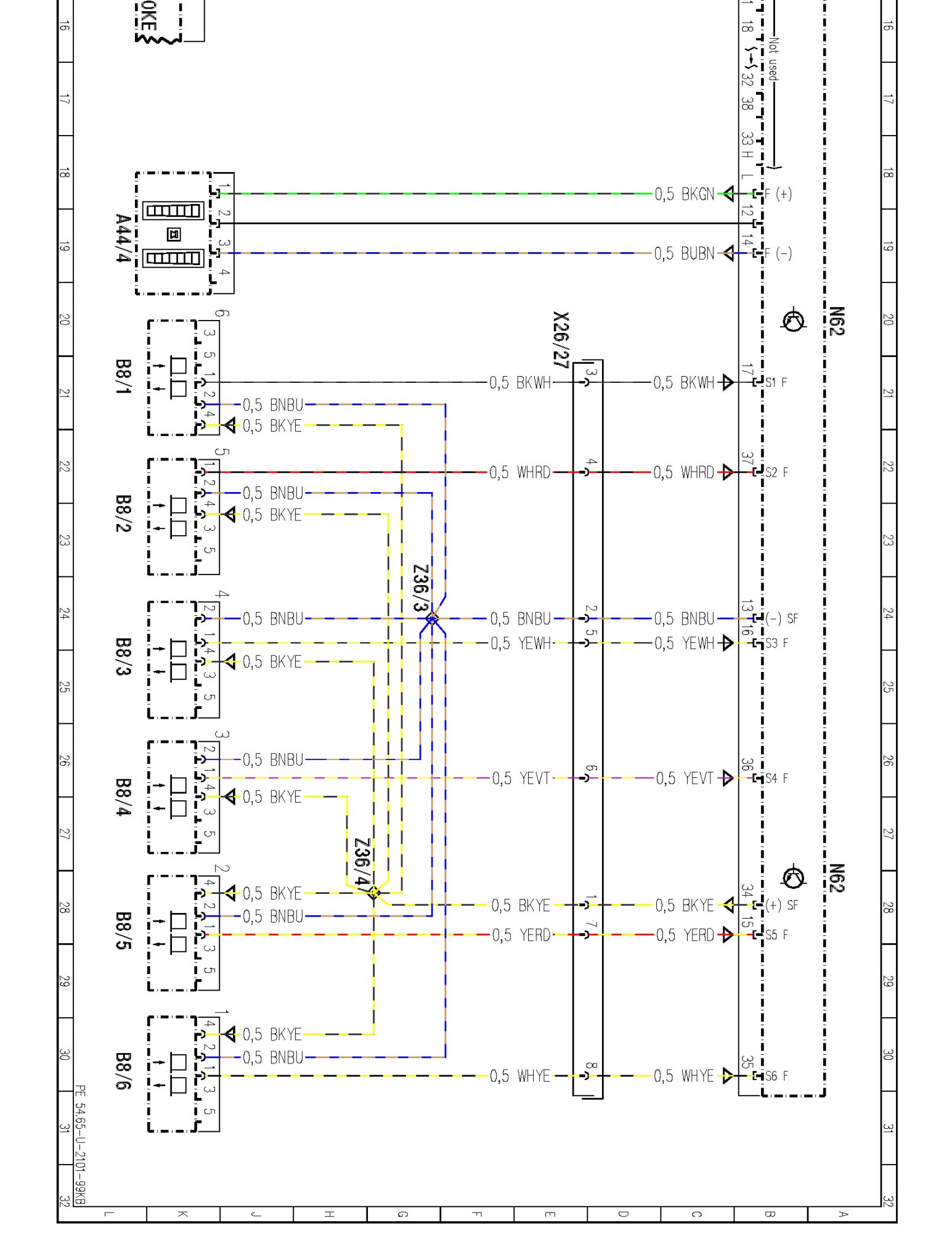

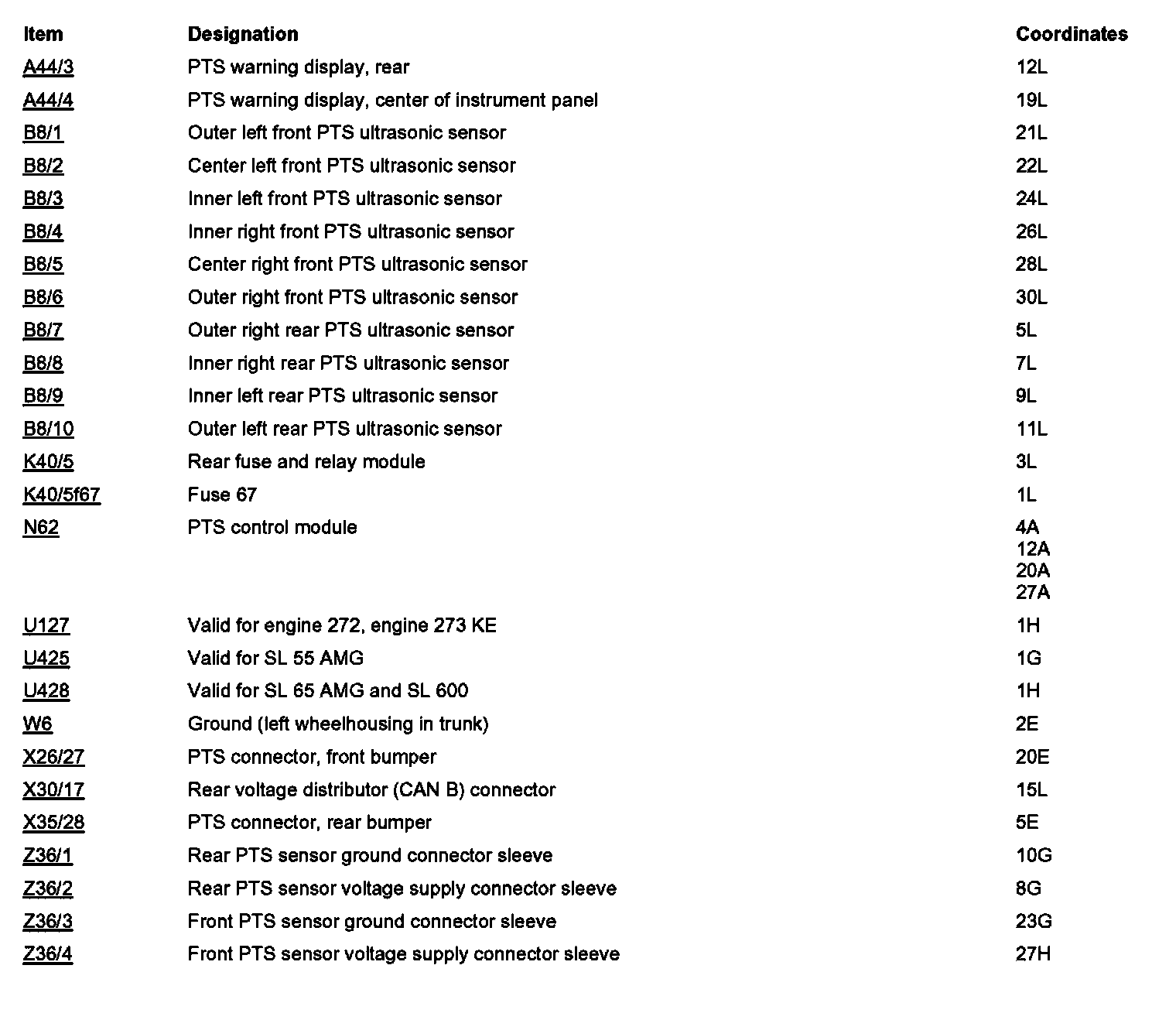

PE54.65-U-2101KB Parktronic System (PTS), Control Module



PE54.65-U-2101KB Parktronic System (PTS), Control Module
- as of 03/01/06
- with CODE (220) Parktronic system (PTS)















Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
