AR82.30-P-6900T Remove/Install Rear Wiper Motor

AR82.30-P-6900T Remove/Install Rear Wiper Motor







DANGER:
- Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities.
- Keep body parts and limbs well clear of moving parts.

1 Remove door lining from rear-end door, complete
2 Remove wiper arm of rear-end door

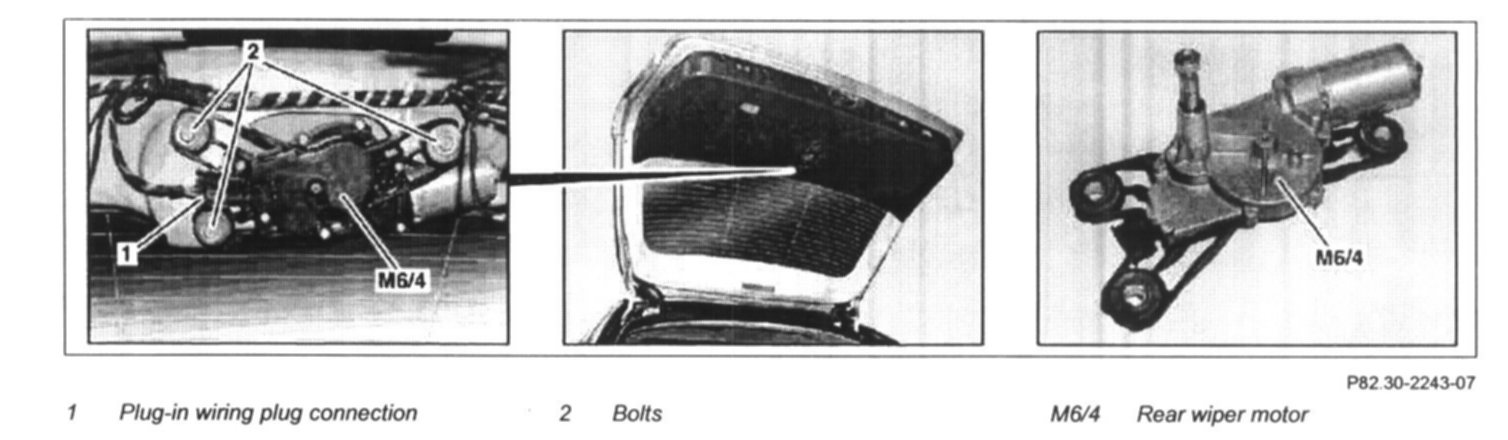

3 Disconnect electrical connector (1) from rear-end door wiper motor (M6/4)
4 Unscrew screws (2) and remove rear-end door wiper motor (M6/4) from rear-end door
- Bolt, wiper motor to rear door: 7 N.m
5 Install in the reverse order
