AR82.30-P-6910T Remove/Install Tailgate Wiper Arm

AR82.30-P-6910T Remove/Install Tailgate Wiper Arm







DANGER:
- Risk of injury. Moving parts can pinch, crush or, in extreme cases even sever extremities.
- Keep body parts and limbs well dear of moving parts.

1 Ensure that rear-end door wiper motor is switched off

NOTE: Switch ignition on and switch rear-end door wiper motor off.Then switch ignition on again.

2 Raise cover (2)
3 Unscrew nut (3)
- Wiper arm nut to rear-end door wiper motor: 12 N.m
4 Fit puller (4) and pull wiper arm (1) from shaft of rear-end door wiper motor

See "Special Tools" given below.

5 Remove puller (4) and remove from wiper arm (1)

NOTE: Installation: Note adjusting mark (5) for wiper arm park position (1) at rear-end door window (6).

6 Install in the reverse order

Special Tools

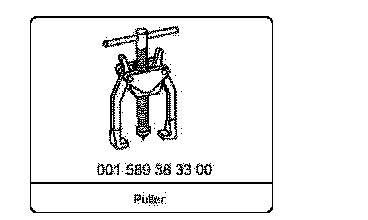

Puller, P/N # 001 589 38 33 00:
