AR82.35-P-6920T Remove/Install Tailgate Spray Nozzle
AR82.35-P-6920T Remove/Install Tailgate Spray Nozzle
AR82.35-P-6920T Remove/Install Tailgate Spray Nozzle
1

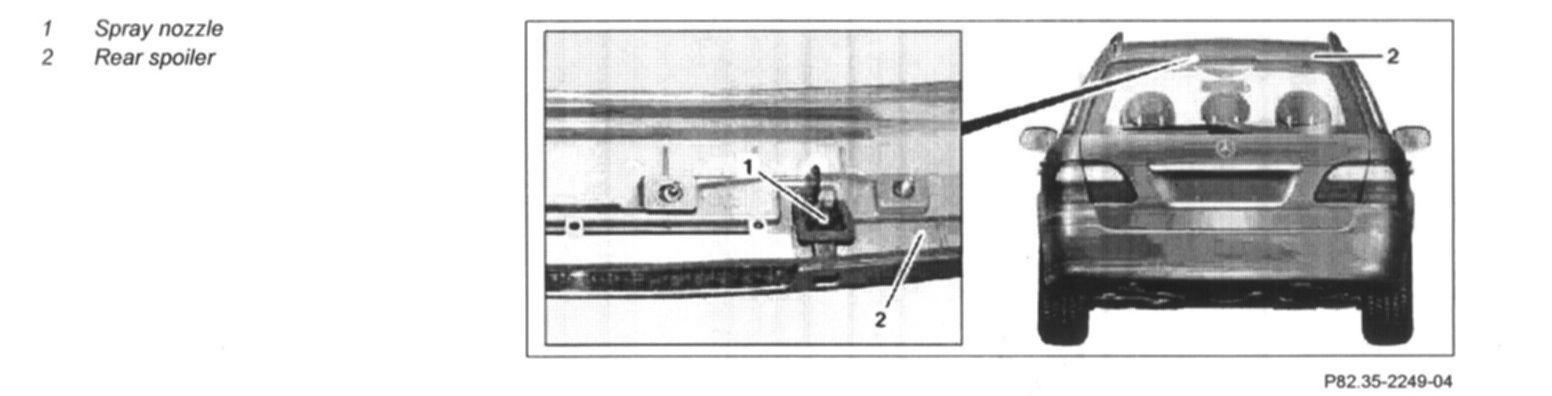

Remove rear spoiler (2)
2
Unclip spray nozzle (1) from rear spoiler (2) and remove
3
Install in the reverse order
